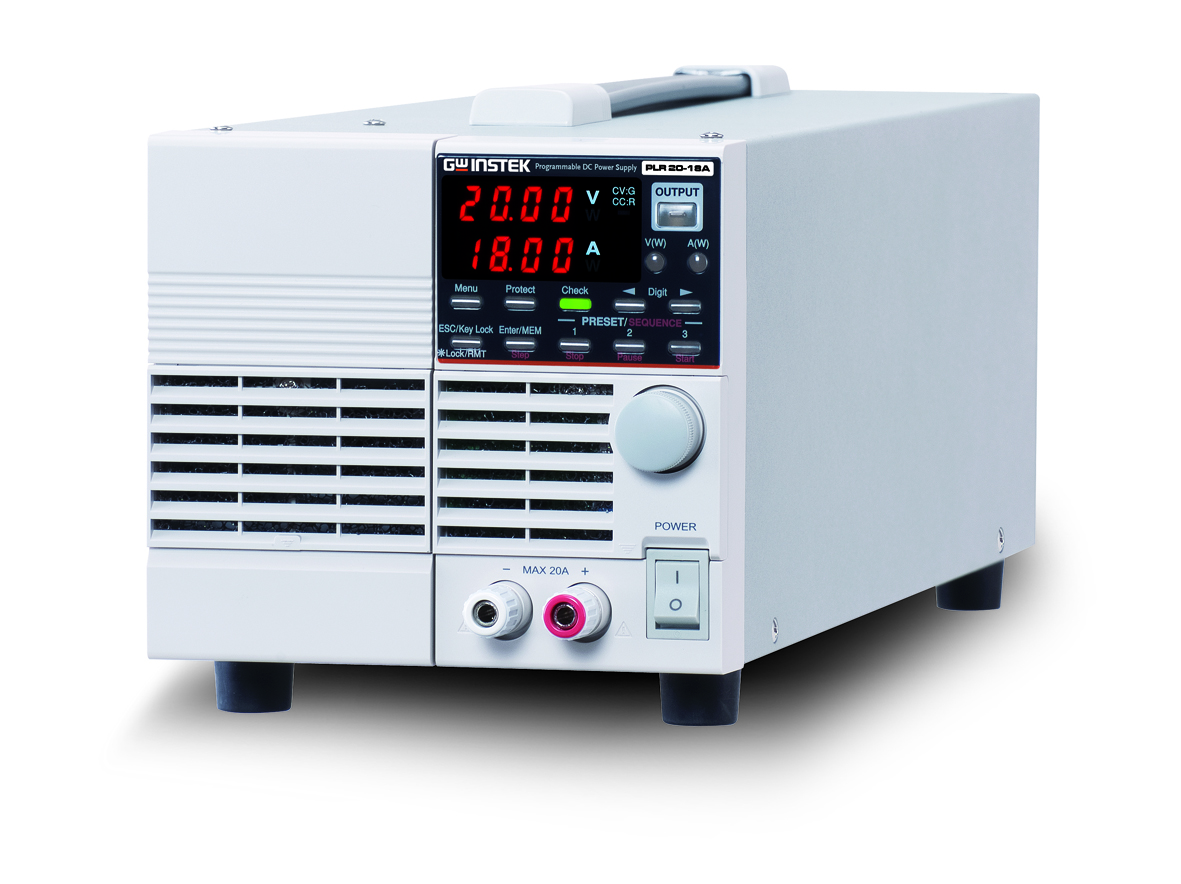

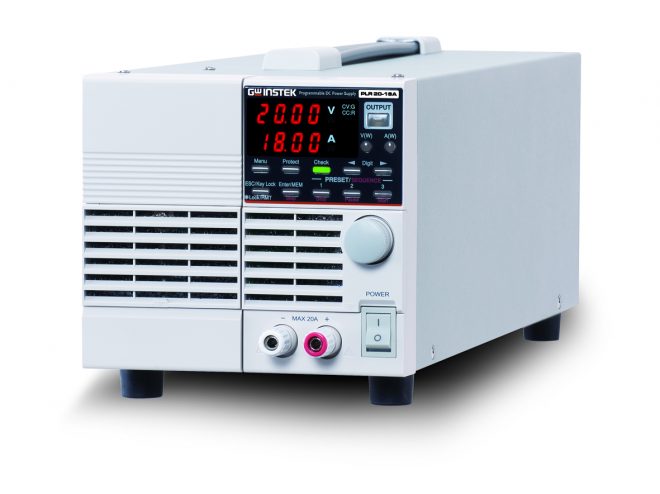

The PLR 20-36 Low Noise D.C. Power Supply is a high-performance, programmable power supply designed to deliver a precise and stable output for a wide range of applications. With an adjustable voltage range of 0 to 20V and a current capacity of up to 36A, this power supply offers a maximum output power of 720W, making it ideal for testing, R&D, and production environments. The unit is equipped with advanced features such as low ripple and noise performance, ensuring clean and reliable power for sensitive electronic devices. Its user-friendly interface, along with built-in programmable control, allows for easy integration into automated test systems, while the overvoltage, overcurrent, and overtemperature protections enhance operational safety. The PLR 20-36 is perfect for powering high-current loads, battery charging, and applications requiring precise, regulated power delivery.
PLR-Series Specifications
The specifications apply when the PLR-Series is powered on for at least 30 minutes under +20°C~+30°C
| Model | PLR20-18 | PLR20-36 | PLR36-10 | PLR36-20 | PLR60-6 | |
| OUTPUTÂ Â Â Â RATING | ||||||
| Voltage | 0V to 20V | 0V to 36V | 0V to 60V | |||
| Current | 0 ~ 18A | 0 ~ 36A | 0 ~ 10A | 0 ~ 20A | 0 ~ 6A | |
| Power | 360W | 720W | 360W | 720W | 360W | |
| REGULATION (CV) | ||||||
| Load | 0.005%FS+2mV | 0.005%FS+2mV | 0.005%FS+2mV | |||
| Line | 0.005%FS+1mV | 0.005%FS+1mV | 0.005%FS+1mV | |||
| REGULATION (CC) | ||||||
| Load | 5mA | 5mA | 5mA | |||
| Line | 5mA | 10mA | 1mA | 5mA | 1mA | |
| RIPPLE & NOISE (Noise Bandwidth= 20MHz ; Ripple Bandwidth = 1MHz) | ||||||
| CV p-p | 30mVp-p | 30mVp-p | 30mVp-p | |||
| CV rms | 0.5mVrms | 0.5mVrms | 0.5mVrms | |||
| CC rms | 10mArms | 5mArms | 10mArms | 5mArms | 5m Arms | |
| SETTING ACCURACY    (23°C±5°C, after 30-minute aging) | ||||||
| Voltage | ± (0.5%SET+0.5%F.S): | ± (0.5%SET+0.5%F.S): | ± (0.5%SET+0.5%F.S): | |||
| Current | ± (1%SET+1%F.S): | ± (1%SET+1%F.S): | ± (1%SET+1%F.S): | |||
| Power | ±(0.7%rdg+1.5%F.S): | ±(0.7%rdg+1.5%F.S): | ±(0.7%rdg+1.5%F.S): | |||
| READBACK ACCURACY (23°C±5°C, after 30-minute aging) | ||||||
| Voltage | ±(0.1%rdg+2digit): | ±(0.1%rdg+2digit): | ±(0.1%rdg+2digit): | |||
| Current | ±(0.5%rdg+2digit): | ±(0.5%rdg+2digit): | ±(0.5%rdg+2digit): | |||
| RESPONSE TIME | ||||||
| Raise Time | 50ms/50ms: No load/Rated load
Output voltage: 10%→90%FS |
50ms/50ms: No load/Rated load
Output voltage: 10%→90%FS |
50ms/50ms: No load/Rated load
Output voltage: 10%→90%FS |
|||
| Fall Time(Full load) | 50ms ; Output voltage:
90%→10%FS |
50ms ; Output voltage:
90%→10%FS |
150ms ; Output voltage:
90%→10%FS |
|||
| Fall Time(No load) | 250ms ; Output voltage:
90%→10%FS |
250ms ; Output voltage:
90%→10%FS |
600ms ; Output voltage:
90%→10%FS |
|||
| Load Transient Recover Time
(Load change from 50 to 100%) |
100μs |
100μs |
100μs |
|||
| SETTING RESOLUTION | ||||||
| Voltage | 10mV | 10mV | 10mV | |||
| Current | 10mA | 10mA | 10mA | |||
| MEASUREMENT RESOLUTION | ||||||
| Voltage | 10mV | 10mV | 10mV | |||
| Current | 10mA | 10mA | 10mA | |||
| SERIES AND PARALLEL CAPABILITY | ||||||
| Parallel Operation | Up to 3 units | Up to 3 units | Up to 3 units | |||
| Series Operation | Up to 2 units | Up to 2 units | Up to 2 units | |||
| PPROTECTION FUNCTION | ||||||
| OVP | Set range: 10% to 110% FS. Set resolution: 10 times the minimum display resolution.
Activated when the output voltage exceeds the set OVP value: Hardware detection. |
|||||
| OCP | Set range: 5% to 110% FS. Set resolution: 10 times of minimum display resolution.
Activated when the output current exceeds set OCP value: Software detection. |
|||||
| UVP | Set range: -1V to 110% FS. Set resolution: 10 times the minimum display resolution.
Activated when the output voltage falls below the set UVP value: Software detection. |
|||||
| ENVIRONMENT CONDITION | ||||||
| Operation Temp | 0℃ to 40℃ | |||||
| Storage Temp | ﹣20℃ to 60℃ | |||||
| Operating Humidity | 30% to 85% RH (No dew condensation) | |||||
| Storage Humidity | 20% to 85% RH (no dew condensation) | |||||
| READ BACK TEMP WEFFICIENT | ||||||
| Voltage | ±100ppm/℃ | ±100ppm/℃ | ±100ppm/℃ | |||
| Current | ±100ppm/℃ | ±100ppm/℃ | ±100ppm/℃ | |||
| OTHER | ||||||
| Power consumption | 570VA | 1100VA | 520VA | 1050VA | 510VA | |
| Power factor | 0.99 | 0.99 | 0.99 | |||
| Coolingmethod | Forced cooling: Fan speed proportionate to the temperature of the internal heat sink. | |||||
| Power Source | Single-phase 100VAC to 240VAC, 50Hz to 60Hz | |||||
| Interface | RS-232C/LAN (Standard: )Â Â Â Â Â Â Â Â Â ;Â Â Â Â Â Â GPIB/USB (option) | |||||
| Analog Control | Yes | |||||
|
Dimension |
139.5 (H) *
140(W) *415.5(D) |
139.5 (H) *
210(W) *415.5(D) |
139.5 (H) *
140(W) *415.5(D) |
139.5 (H) *
210(W) *415.5(D) |
139.5 (H) *
140(W) *415.5(D) |
139.5 (H) *
210(W) *415.5(D) |
| Weight | 5.2kg | 7.5kg | 5.2kg | 7.5kg | 5.2kg | |
Standard Accessories
User Manual (CD) x 1, AC Power Cord x 1, Rear Output Terminal Cover x 1,
Bolt set x1 [Hexagon head bolt (P-3) x2, Flat washer x2, Hexagon nut x2]
Output-grounding cable x 1,
 Optional Accessories
PLR-GUÂ Â Â Â Â Â Â GPIB/ USB Interface Card
PLR-LUÂ Â Â Â Â Â Â Â LAN / USB Interface Card
PLR-ARCÂ Â Â Â Â External Analog Control Interface Card
PLR-001Â Â Â Â Â Â Â Parallel connection signal cable (2 to 3 units)
PLR-002Â Â Â Â Â Â Â Series Connection Signal Cable
GRA-427Â Â Â Â Â Â RackMountAdaptor(EIA+JIS)
GTL-246Â Â Â Â Â Â Â USB Cable (1.2m)
GTL-248Â Â Â Â Â Â Â GPIB Cable(2.0m)
GTL-251Â Â Â Â Â Â Â GPIB-USB-HS (High-Speed)
GRJ-1102Â Â Â Â Â Modular Cable (1.5m)
