- 24/48 Channels
- Hipot/Leakage Current
- Insulation Resistance
- Winding Layer short Test
- Resistance Welding Test
- Inductance Test
- It can test multiple sets of DUTs simultaneously
- 4-Wire DC Resistance measurement will be more accurate than others
- The Impulse/Surge with waveform comparison is a non-destructive analysis
- Chinese/English screen could be switched arbitrarily
Motor Rotor Testing System MT-6920 24/48 Channel
- 24/48 Test Channels Allows simultaneous testing of multiple DUTs for improved efficiency.
- Comprehensive Testing Includes Hipot/Leakage Current, Insulation Resistance, Winding Layer Short, Resistance Welding, and Inductance tests.
- Accurate Measurements 4-Wire DC Resistance measurement ensures high precision in results.
- Advanced Analysis Impulse/Surge testing with waveform comparison for non-destructive analysis.
- User-Friendly Interface Supports both Chinese and English screens for flexible operation and ease of use.

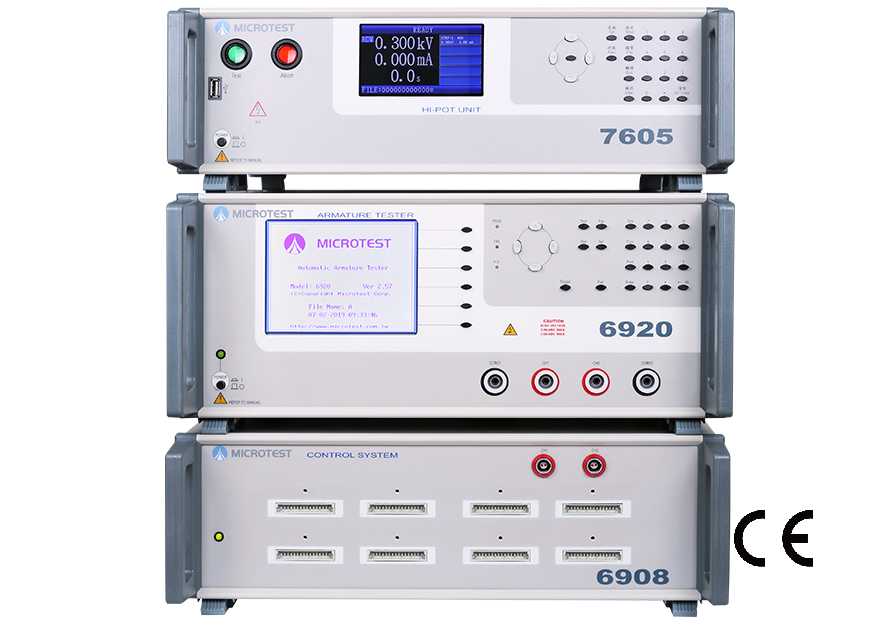

MICROTEST MT-6920 Motor Rotor Testing System combines the Interlayer Short-Circuit Tester (6920), the High Voltage Withstand Tester (7605), and the Multi-Channel Control Box (6908), with the 6920 serving as the main controller. It allows for the configuration of all measurement parameters and provides 24/48 test channels. The external PC software enables direct real-time access to test results from the 6920, as well as report generation and direct uploading of test results to a database.
MT-6920 Motor Rotor Testing System offers 24/48 channel testing capability for measuring the welding resistance of motor rotors. It integrates safety compliance, high-voltage insulation, and coil interlayer short-circuit testing into one system. It supports remote programming and data storage via PC connectivity software and can be equipped with PLC control. Customized test fixtures can be provided for rotor testing according to customer specifications.
Specifications
Selection

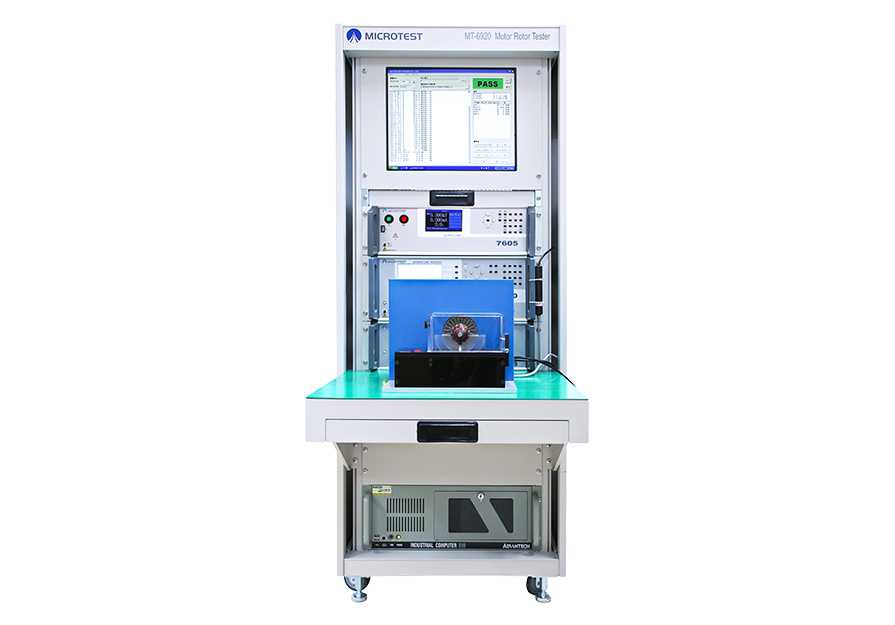

MICROTEST stator testing solution can be tailored into a complete testing system based on different requirements. Firstly, you can evaluate whether to opt for a rack-mounted or desktop configuration, as well as whether to incorporate PC connectivity.
| System | Benchtop | Rack |
|
|
 |
| Evaluate whether to include PC connectivity software. | ||
| Function | Operate directly on the instrument | PC Link |
| Production Traceability Management – Implementing Bar Code/Label Printer/Laser Engraver | / | ● |
| Store test file sets | 100 sets (existing instruments) | Unlimited (according to PC memory) |
| Sharing test files between devices | Unable to share, recreate the file | Share through PC software |
| Accessing test data | / | Transfer test data to the PC via the RS-232 interface |
| Uploading test data to a cloud database | / | ● |
| User Permission Management” or “User Access Control | /
|
Supports permission management, configuration through Engineering Mode |
| CPK Report | /
|
|
| Customized CPK Report According to Customer Requirements | / |  |
SPEC
| Model | MT-6920 |
| Test Channel | 24/48 |
| DC Resistance Test (6920) | |
| DCR Range | 0.1mΩ-100kΩ |
| Measuring Mode | 4-Wire |
| DCR Accuracy | Low Resistance
0.1mΩ-1Ω±(0.2%±1mΩ) High Resistance 1Ω-100KΩ±0.1% |
| Safety Hi pot Test (7605) | |
| AC Output Voltage | 100V-3000V |
| AC Leakage Current | 0.001mA-10mA |
| AC Arcing Detection | Detect gears from 0-9 |
| DC Output Voltage | 100V-3000V |
| DC Leakage Current | 0.001mA-5mA |
| DC Arcing Detection | Detect gears from 0-9 |
| IR Output Voltage | 100V-1000V |
| Insulation Resistance | 1-9999MΩ |
| Measuring Time | 0.1-99.9s Continuously adjustable |
| Voltage Accuracy | ±(3% of setting+5V) |
| Impulse Winding Test (6920) | |
| Impulse Voltage (programmable) | 200V-3000V |
| Impulse Voltage Accuracy | ±2% |
| Total area comparison | When layer short happened, the loss of power on coil increase, the resonance damping coefficient increase, resonance amplitude decrease, the total area decrease. These are the basic parameters we check layer short.
By calculating and comparing the deference of area between golden sample and DUT. |
| Differential area comparison | Add up the difference between normal wave and DUT wave call “ Area differential”. When layer short happened, the inductance reduce(similar the transformer). The wave phase change and the area differential also change. This will show “fail” on the instrument. However, the parameter might cause deviation because of the deviation of inductance, resonance phase shift. (Silicon steel product such as motor and traditional transformer is not suitable)By calculating and comparing the deference of area between golden sample and DUT. To determine the degree of waveform overlap. Compare the inductance by this. |
| Wave comparison | Set a acceptable wave range, if the DUT’s wave is in this range shows “pass” otherwise, “fail” This parameter can judge both amplitude and phase of resonance wave. This can increase the detection capability of layer short. |
| Corona comparison | In pulse test, the insulation defect will cause discharge and create corona. This function is able to count the times that corona happened base on the degree of deviation. Detect the discharge phenomenon on the coil. |
| Flat comparison | If the layer short happened, the waveform will tremble. Therefore, the instrument will quantize and compared it. |
SYSTEM
| Test fixture | According to the test requirements | |
| Indicator | Pass/Fail Screen Diaplay/Sound | |
| Built-in Storage | Storage of 100 rewritable data sets | |
| Operation | Manual, RS-232 | |
| Power Supply | Voltage | 90-132Vac or 198-264Vac |
| Frequency | 50/60Hz | |
| Power consumption | 300VA | |
| Environment | Temperature | 10℃-40℃ |
| Humidity | 20-90%RH | |
| Display | 6920 | 5.7″ dot-matrix display (320*240) |
| 7605 | 4.3″ TFT LCD (480*272) | |
| Dimension
(W*H*D) |
6920 | 435x190x522mm |
| 7605 | 435x145x522mm | |
| 6908 | 435x145x522mm | |
| Weight | 6920 | 15 Kg |
| 7605 | 14 Kg | |
| 6908 | 7 Kg | |
| Interface | RS-232 | |
Standard Accessories
| Power Cord | |
| HV Test Cable | |
| Banana Plug Cable | |
| RCA adapter (Temperature Test Prob) |  |
| RS-232 Cable | |
| D-Sub footswitch (F760001) | |
Optional Accessories
| PC Link Software | |
| Customized cabinet | |
| Test Fixture |  |
