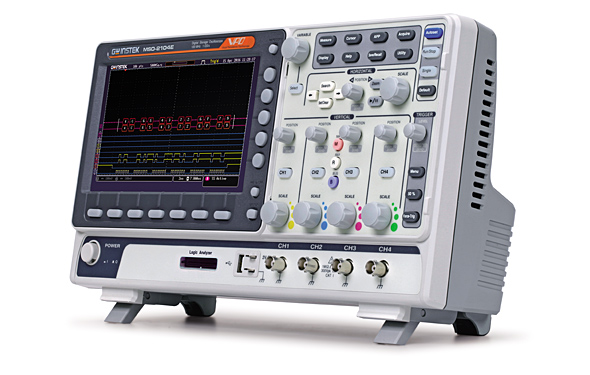

Series Mixed-signal Oscilloscopes MSO-2102EA

200/100/70MHz bandwidth selections: 2 or 4 channels
MSO-2000E equips with a 16-channel logic analyzer
MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
Real time Sampling rate for each channel is 1GSa/s (2-channel models);Maximum real time Sampling rate is 1 GSa/s (4- channel models)
Maximum 10M memory depth and VPO waveform display technology
Waveform update rate up to 120,000 wfms/s
8 ” WVGA TFT LCD screen display
Free Frequency Response Analyzer Software
Maximum 1M FFT provides higher frequency domain resolution measurements
High Pass, Low Pass and Band Pass Filter Functions
29,000 segmented memory sections and waveform search function
I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
Data log function is able to track signal changes up to 100 hours
Network storage function

Economical and Multi-Functional MSO

The MSO-2000 series is a mixed-signal oscilloscope, which offers dual analog channels + 16 digital channels or 4 analog channels + 16 digital channels. The MSO-2000 series includes MSO-2000E and MSO-2000EA. MSO-2000E has a built-in 16-channel logic analyzer and MSO-2000EA has a built-in 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator. The entire series features bandwidth selections of 200MHz, 100MH, and 70MHz. Dual analog channel models provide 1GSa/s real-time sampling rate per channel; four analog channel models provide 1GSa/s maximum real-time sampling rate. The 8-inch 800*480 TFT LCD and the minimum 1mV/div vertical range allow the MSO-2000 series to measure complex feeble signals and clearly display measurement results.

For analog channels, the MSO-2000 series provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1k, 10k, 100k, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms. The MSO-2000 series is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the segmented memory function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly. Users, by using the waveform search function, can rapidly search desired waveforms according to the required trigger conditions.

16-channel logic analyzer has a memory depth of 10Mpts per channel, which can retrieve more and longer digital signals as well as clearly display digital signals to obtain sufficient information for analysis. The minimum input swing of logic analyzer represents the minimum operating voltage of ±250 mV, which demonstrates that digital channels are highly sensitive with respect to input. The standard bus trigger and decoding functions include serial and parallel bus such as I2C, SPI, UART (RS232/422/485) and CAN/LIN bus for automotive communications. The parallel bus function is only for digital channels. Bus waveforms can be triggered and decoded in real time. The MSO-2000 series offers complete analysis and debugging capabilities with the economical pricing.

CAN Bus Trigger and Decode

In addition to a 16-channel logic analyzer, MSO-2000EA has a built-in dual channel 25MHz arbitrary waveform generator with the modulation capability and also features 14 bits vertical resolution; sample rate of 200MSa/s; 5 standard output waveforms (Sine, Square, Pulse, Ramp, DC, Noise) and 7 user-defined waveforms (Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac); AM/FM/FSK modulation and sweep function. The user friendly interface is the ideal choice for applications such as circuit simulation and education tests.

Dual Channel Arbitrary Waveform Generator

Model Variants

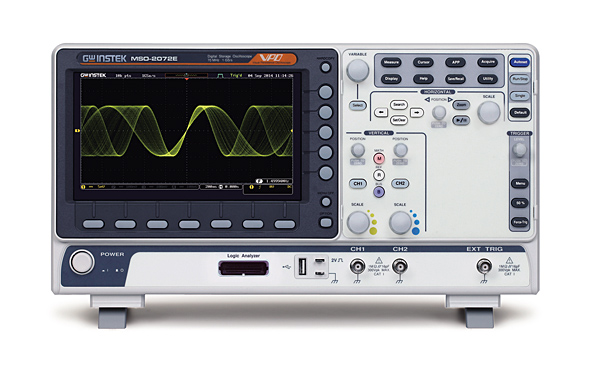

MSO-2072E(A)
- 2 channels + External trigger
- 70 MHz bandwidth
- 5 ns rise time
MSO-2074E(A)
- 4 channels
- 70 MHz bandwidth
- 5 ns rise time
MSO-2102E(A)
- 2 channels + External trigger
- 100 MHz bandwidth
- 3.5 ns rise time
MSO-2104E(A)
- 4 channels
- 100 MHz bandwidth
- 3.5 ns rise time
MSO-2202E(A)
- 2 channels + External trigger
- 200 MHz bandwidth
- 1.75 ns rise time
MSO-2204E(A)
- 4 channels
- 200 MHz bandwidth
- 1.75 ns rise time
Bandwidth Limit Options:
- 20 MHz limit available on all models
- 100 MHz limit selectable on 200 MHz models

Vertical System

Resolution: 8-bit
Vertical Sensitivity: 1 mV/div ~ 10 V/div
Input Coupling: AC, DC, GND
Input Impedance: 1 MΩ // 16 pF (approx.)
DC Gain Accuracy:
- ±3% (≥ 2 mV/div)
- ±5% (1 mV/div)
Polarity: Normal & Invert
Max Input Voltage: 300 Vrms, CAT I
Offset Range:
- 1 mV–20 mV/div: ±0.5 V
- 50 mV–200 mV/div: ±5 V
- 500 mV–2 V/div: ±25 V
- 5 V–10 V/div: ±250 V

Waveform Math and Processing

Operations: +, −, ×, ÷, FFT, FFTrms, User-defined expressions
FFT: 1 Mpts with selectable window (Rectangular, Hamming, Hanning, Blackman-Harris)
FFT Scale: Linear RMS or dBV RMS

Trigger System

Sources: CH1, CH2, CH3, CH4, EXT, Line (*EXT only on 2ch models)
Modes: Auto (with Roll mode ≥100 ms/div), Normal, Single Sequence
Types: Edge, Pulse Width (Glitch), Video, Runt, Rise/Fall (Slope), Alternate, Timeout, Event Delay (1–65535 events), Time Delay (4ns–10s), Bus
Holdoff Range: 4ns to 10s
Coupling: AC, DC, LF reject, HF reject, Noise reject
Sensitivity: 1 div

External Trigger

Range: ±15 V
Sensitivity:
- DC–100 MHz: ~100 mV
- 100–200 MHz: ~150 mV
Impedance: 1 MΩ ±3%, 16 pF

Horizontal System

Time Base Range: 1 ns/div to 100 s/div (1-2-5 increments)
ROLL Mode: 100 ms/div to 100 s/div
Pre-trigger: Max 10 divisions
Post-trigger: Max 2,000,000 divisions
Time Base Accuracy: ±50 ppm (≥1 ms interval)
Real-Time Sample Rate:
- Max 1 GSa/s (4ch model total)
- 1 GSa/s per channel (2ch model)
Record Length: Max 10 Mpts
Acquisition Modes: Normal, Average (2 to 256), Peak Detect (2 ns typical), Single

X-Y Mode

X-axis Input: CH1 or CH3* (*4ch only)
Y-axis Input: CH2 or CH4* (*4ch only)
Phase Shift: ±3° at 100 kHz

Cursors and Measurement

Cursors: Amplitude, Time, Gating (s, Hz, °, %)
Auto Measurements (38 types): Includes Vpp, Max, Min, Mean, RMS, Rise/Fall Time, Frequency, Duty, Pulses, Edges, Overshoot, Phase, etc.

Control Functions

Auto Counter: 6-digit, 2 Hz to full bandwidth
Autoset: Full channel setup with Undo
Save Settings: 20 setups
Save Waveforms: 24 sets

Display

Screen: 8” TFT LCD, WVGA (800 × 480)
Interpolation: Sin(x)/x
Display Modes: Dots, Vectors, Variable Persistence (16 ms to 4 s), Infinite
Update Rate: Max 120,000 wfms/s
Graticule: 8 × 10 divisions
Display Formats: YT and XY

Connectivity

USB: 1x USB 2.0 Host, 1x USB 2.0 Device
Ethernet (LAN): RJ-45, 10/100 Mbps with HP Auto-MDIX
Go-NoGo Output: 5V Max/10mA, TTL open collector
Security: Kensington lock slot

Logic Analyzer (MSO Models Only)

Channels: 16 digital (D0–D15)
Sample Rate: 1 GSa/s per channel
Bandwidth: 200 MHz
Record Length: 10 Mpts per channel
Trigger Types: Edge, Pattern, Pulse Width, Serial (I2C, SPI, UART, CAN, LIN), Parallel Bus
Threshold Groups: D0–D3, D4–D7, D8–D11, D12–D15
Threshold Levels: TTL, CMOS (5V/3.3V/2.5V), ECL, PECL, 0V, User-defined (±5V)
Max Input Voltage: ±40 V
Min Voltage Swing: ±250 mV
Input Impedance: 101 kΩ // 8 pF
Vertical Resolution: 1-bit

AWG (MSO-2000EA Models Only)

Channels: 2
Sample Rate: 200 MSa/s
Vertical Resolution: 14 bits
Max Frequency: 25 MHz
Waveforms:
- Standard: Sine, Square, Pulse, Ramp, DC, Noise
- ARB: Sinc, Gaussian, Lorentz, Exp Rise/Fall, Haversine, Cardiac
Output Range:
- 20 mVpp – 5 Vpp (High-Z)
- 10 mVpp – 2.5 Vpp (50 Ω)
Output Accuracy: 2% at 1 kHz
Offset Range:
- ±2.5 V (High-Z)
- ±1.25 V (50 Ω)

Waveform Specs

Sine:
- 100 mHz to 25 MHz
- Flatness: ±0.5 dB (<15 MHz), ±1 dB (15–25 MHz)
- THD: 1%, Harmonic/Non-harmonic Distortion: −40 dBc
Square/Pulse:
- 100 mHz to 15 MHz
- Rise/Fall Time: <15 ns, Overshoot <3%, Duty Cycle: 0.4%–99.6%
- Jitter: 500 ps, Min Pulse Width: 30 ns
Ramp:
- 100 mHz to 1 MHz
- Linearity: 1%, Symmetry: 0–100%

Frequency Response Analysis (MSO-2000EA Only)

Dynamic Range: >80 dB (typical)
Input/Output Sources: CH1/2 (CH3/4 on 4ch models)
Frequency Range: 20 Hz to 25 MHz
Test Points: 10–90 points per decade
Test Amplitude: 20 mVpp–5 Vpp (High-Z)
Output: Logarithmic gain & phase plot
Manual Markers: 2 pairs tracking gain/phase
Plot Scaling: Auto-scaled

Miscellaneous

Multilingual Menu: Available
Operating Environment:
- Temp: 0°C to 50°C
- RH: ≤80% @ ≤40°C, ≤45% @ 41–50°C
On-line Help: Available
Time Clock: Date/time for saved data
Dimensions: 384 × 208 × 127.3 mm
Weight: 2.8 kg
