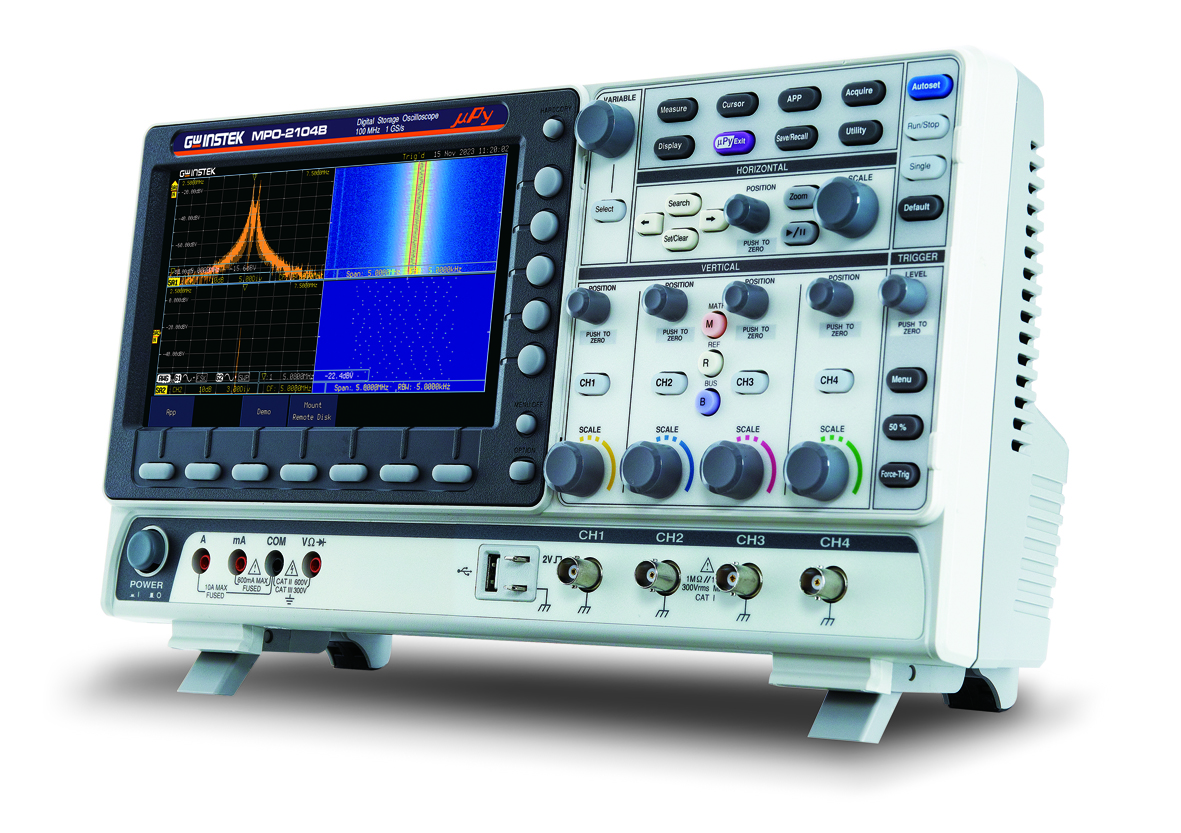

Digital storage oscilloscope | Series Multi-function Programmable Oscilloscope MPO-2104B
Digital storage oscilloscope | Series Multi-function Programmable Oscilloscope MPO-2104B
The MPO-2104B offers four independent input channels, allowing simultaneous monitoring of multiple waveforms—perfect for analyzing complex circuits or multi-signal systems.
With a wide 100 MHz bandwidth and high-speed 1GSa/s sampling, the oscilloscope ensures precise waveform capture for accurate signal diagnosis.
The oscilloscope features a high-resolution color screen and intuitive controls, enabling easy navigation and clear waveform viewing for both beginners and professionals.
Easily connect to a PC for saving waveforms, printing reports, or controlling the oscilloscope remotely via USB for improved workflow and documentation.
Built-in waveform math functions, flexible triggering options, and programmable features make the MPO-2104B ideal for education, repair, design, and research environments.
Allow to use Python scripts to control for automation purpose
Dual Channel Spectrum analyzer with Spectrogram
I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
MPO-2000P:CAN FD, USB 2.0(full speed), FlexRay, USB PD, I2S digital decoding
MPO-2000B: CAN FD, USB 2.0 (full speed) digital decoding
Data log function is able to track signal changes up to 1000 hours
Network storage function
Equips with a spectrum analyzer; a dual channel 25MHz AWG; DMM and power supply.
Power Supply: Dual channel output, 1V to 20V continuously adjustable (0.1V step)

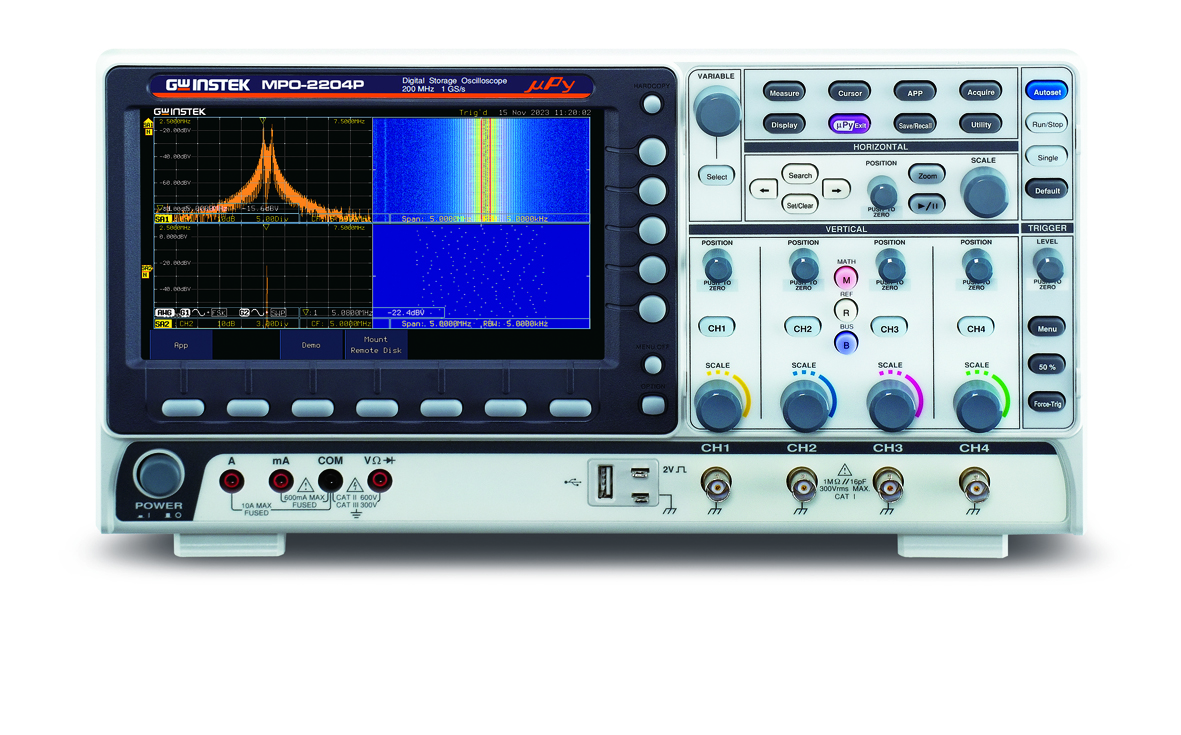

GW Instek launches the MPO-2000 series, which is named after the abbreviation of Multi-function Programmable Oscilloscope. In addition to being an oscilloscope, it also includes a spectrum analyzer, an arbitrary waveform generator, a digital multimeter and a DC power supply.
In addition to the five-in-one multi-functional architecture, we innovatively introduced the Python script function into the MPO-2000, so that users can conduct program control of a small automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO.
The MPO-2000 series provides Basic and Professional versions (model suffixes are represented by B and P).In terms of bandwidth, the Basic version is 100MHz and the Professional version is 200MHz and the main difference is that the Professional version provides larger program memory and more system resources to achieve the ability to process longer waveform data. The series provides USB CDC device control to meet the needs of multi-unit collaborative tests, and a Python GUI library is provided to allow users to modify the original built-in Python APP or write their own programs that present curve drawing and GUI operation menus to be packaged into Python programs developed by users.
The Basic version features the provided demo programs that can be executed (including programs with USB device control and GUI) and Python programs provided by users. In addition, the Professional version provides more diverse bus decoding functions, including FlexRay, USB-PD and I2S. Many bus decoding functions are included in the standard configuration, and users do not have to pay to have the functions, making MPO-2000 more competitive.
MPO-2000P is the only product of its class that has a built-in Python GUI library. Users can build their own test systems at a lower cost. A variety of executable Python APPs are built-in. An all-in-one instrument with affordable pricing is ideal for test and measurement automation teaching courses; small-scale automated test of production lines, component tolerance testing for quality assurance, and diversified test applications.
MPO-2000 provide 7 innovative functions:
Python Script Execution
Component Tester I-V curve
Support MQTT Protocol
Serial Bus decode
Spectrogram
Support Python GUI library (Professional version only)
Support USB CDC-ACM, USB HID Protocol (Professional version only)
The Python APP currently installed on MPO-2000 includes the following categories:
BJT output characteristic curve
LC oscillator circuit frequency and temperature characteristic curve
Fuse endurance test
LED forward bias characteristic curve
Barcode scanner measurement application
On the MPO-2000, if users want to modify or call the script of the drawing library, they must purchase the Pro version to modify the program by themselves to meet the testing of different DUTs. In addition, other manufacturers can use the built-in AWG function of the oscilloscope to achieve similar effects, but the voltage and power of this kind of AWG are too small, and their practicality is low. One single MPO-2000 unit can meet the IV test requirements of parts suitable for voltages below 20V.
MPO-2102B
Channels: 2 + Ext
Bandwidth: DC ~ 100MHz (-3dB)
Rise Time: 3.5ns (Calculated)
Bandwidth Limit: 20MHz
Python Script Execution (μPy): Basic version
MPO-2104B
Channels: 4
Bandwidth: DC ~ 100MHz (-3dB)
Rise Time: 3.5ns (Calculated)
Bandwidth Limit: 20MHz
Python Script Execution (μPy): Basic version
MPO-2202P
Channels: 2 + Ext
Bandwidth: DC ~ 200MHz (-3dB)
Rise Time: 1.75ns (Calculated)
Bandwidth Limit: 20MHz/100MHz
Python Script Execution (μPy): Professional version
MPO-2204P
Channels: 4
Bandwidth: DC ~ 200MHz (-3dB)
Rise Time: 1.75ns (Calculated)
Bandwidth Limit: 20MHz/100MHz
Python Script Execution (μPy): Professional version
Common Specifications
Vertical
Sensitivity Resolution: 8 bit, 1mV~10V/div
Input Coupling: AC, DC, GND
Input Impedance: 1MΩ // 16pF approx.
DC Gain Accuracy:
1mV: ±5% full scale
≥2mV: ±3% full scale
Polarity: Normal & Invert
Max Input Voltage: 300Vrms
Offset Position Range:
1mV/div ~ 20mV/div: ±0.5V
50mV/div ~ 200mV/div: ±5V
500mV/div ~ 2V/div: ±25V
5V/div ~ 10V/div: ±250V
Waveform Signal Process: +, -, ×, ÷, FFT, User Defined Expression
