- 200/100/70MHz bandwidth selections ; 2 or 4 channels
- Real time sampling rate for each channel is 1GSa/s (2 channel models)
- Maximum real time sampling rate is 1GSa/s (4 channel models)
- Per Channel 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8 “ WVGA TFT LCD display
- Free Frequency Response Analyzer Software
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High ,low and band pass filter functions
- 29,000 segmented memories and waveform search functions
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
- Data log function is able to track signal changes up to 1000 hours
- Network storage function
- Mask test function
- MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply
- True RMS measurement in DMM function

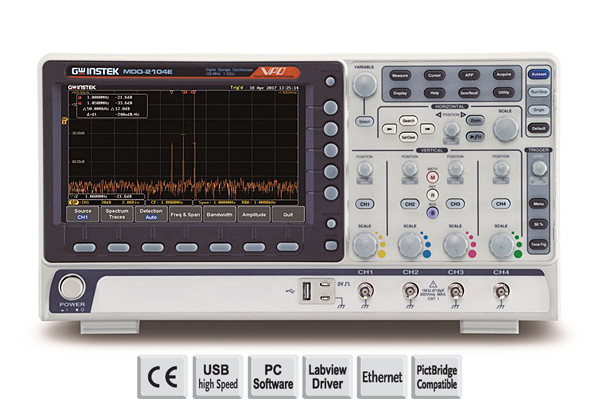

Series Mixed-domain Oscilloscopes MDO-2102EG
- The MDO-2102EG is a 100 MHz mixed domain oscilloscope, featuring 2 analog channels, a built-in spectrum analyzer, and a 25 MHz arbitrary waveform generator, making it ideal for testing embedded systems, RF signals, and analog circuits.
- With a 1 GSa/s real-time sampling rate, the oscilloscope captures high-resolution waveforms, ensuring accurate time-domain analysis and precise measurements for debugging and validating both analog and digital circuits.
- The built-in spectrum analyzer enables frequency-domain analysis, providing insights into RF signals, EMI diagnostics, and interference detection, all without needing separate instruments, streamlining the testing process.
- The 25 MHz arbitrary waveform generator offers flexible signal simulation for testing circuits under various conditions, making it suitable for designing and troubleshooting electronic components and systems.
- Equipped with a 7-inch color LCD display, USB, and LAN connectivity, the MDO-2102EG ensures clear signal visualization, easy data export, and remote control, making it a versatile tool for lab, field, and educational applications.
MDO-2000E series is multi-functional mixed domain oscilloscope. The series includes two feature combinations : MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in a spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply. The first of its kind, MDO-2000EX is the only oscilloscope to equip with a DMM and a power supply in the T&M industry.
General Models
- MDO-2072E(G/X)
- Channels: 2 + External
- Bandwidth: DC to 70 MHz (−3 dB)
- Calculated Rise Time: 5 ns
- MDO-2074E(G/X)
- Channels: 4
- Bandwidth: DC to 70 MHz (−3 dB)
- Calculated Rise Time: 5 ns
- MDO-2102E(G/X)
- Channels: 2 + External
- Bandwidth: DC to 100 MHz (−3 dB)
- Calculated Rise Time: 3.5 ns
- MDO-2104E(G/X)
- Channels: 4
- Bandwidth: DC to 100 MHz (−3 dB)
- Calculated Rise Time: 3.5 ns
- MDO-2202E(G/X)
- Channels: 2 + External
- Bandwidth: DC to 200 MHz (−3 dB)
- Calculated Rise Time: 1.75 ns
- MDO-2204E(G/X)
- Channels: 4
- Bandwidth: DC to 200 MHz (−3 dB)
- Calculated Rise Time: 1.75 ns
Vertical System
- Resolution: 8-bit
- Sensitivity: 1mV/div to 10V/div
- Input Coupling: AC, DC, GND
- Input Impedance: 1MΩ ±3% // 16pF approx.
- DC Gain Accuracy:
- ±3% (≥2mV/div)
- ±5% (1mV/div)
- Polarity: Normal & Invert
- Max Input Voltage: 300Vrms, CAT I
- Offset Position Ranges:
- 1mV–20mV/div: ±0.5V
- 50mV–200mV/div: ±5V
- 500mV–2V/div: ±25V
- 5V–10V/div: ±250V
- Waveform Math Functions: +, −, ×, ÷, FFT, User-defined expressions
- FFT: 1Mpts, Spectral Magnitude, RMS/dBV RMS, Windows: Rectangular, Hamming, Hanning, Blackman
Trigger System
- Sources: CH1–CH4, Line, EXT (2ch models only)
- Modes: Auto (Roll Mode ≥100ms/div), Normal, Single Sequence
- Types: Edge, Pulse Width, Video, Runt, Rise & Fall, Alternate, Timeout, Event Delay, Time Delay, Bus
- Holdoff Range: 4ns to 10s
- Coupling Options: AC, DC, LF Reject, HF Reject, Noise Reject
- Sensitivity: 1 division
- External Trigger:
- Range: ±15V
- Sensitivity:
- DC–100MHz: ~100mV
- 100–200MHz: ~150mV
- Impedance: 1MΩ ±3% // 16pF
Horizontal System
- Timebase Range: 1ns/div to 100s/div (1-2-5 step); Roll Mode: 100ms/div to 100s/div
- Pre-trigger: Up to 10 divisions
- Post-trigger: Up to 2,000,000 divisions
- Timebase Accuracy: ±50ppm (≥1ms)
- Sample Rate:
- 4ch model: 1GSa/s max
- 2ch model: 1GSa/s per channel
- Record Length: 10Mpts per channel
- Acquisition Modes: Normal, Average (2–256), Peak Detect (2ns), Single
X-Y Mode
- X-axis: CH1 (CH3 on 4ch models)
- Y-axis: CH2 (CH4 on 4ch models)
- Phase Shift: ±3° @ 100kHz
Cursors & Measurements
- Cursor Types: Amplitude, Time, Gating (Units: s, Hz, °, %)
- Auto Measurements: 38 types (e.g., Pk-Pk, RMS, Frequency, Duty Cycle, Rise Time, Phase, Flicker metrics, etc.)
Control Panel
- Auto Counter: 6 digits, from 2Hz up to rated bandwidth
- Autoset: Single-button for automatic setup with undo
- Memory:
- Setup: 20 sets
- Waveform: 24 sets
Display
- Type: 8″ TFT LCD, WVGA (800×480 pixels)
- Interpolation: Sin(x)/x
- Display Options: Dots, Vectors, Persistence (16ms–4s, Infinite)
- Update Rate: Max 120,000 waveforms/s
- Graticule: 8 x 10 divisions
- Modes: YT, XY
Interfaces
- USB Ports: 1x USB 2.0 Host, 1x USB 2.0 Device
- LAN Port: RJ-45 (10/100Mbps, HP Auto-MDIX)
- Go/No-Go BNC: 5V Max/10mA TTL open collector output
- Security: Kensington lock slot
Spectrum Analyzer
- Frequency Range: DC to 500MHz
- Span: 1kHz to 500MHz
- RBW: 1Hz to 500kHz
- Ref. Level: -50dBm to +40dBm (5dBm steps)
- Vertical Units: dBV RMS, Linear RMS, dBm
- Vertical Scale: 1dB/div to 20dB/div (1-2-5 steps)
- Display Average Noise Level:
- 1V/div: < -50dBm
- 100mV/div: < -70dBm
- 10mV/div: < -90dBm
- Spurious Response:
- 2nd Harmonic: < -40dBc
- 3rd Harmonic: < -45dBc
- Trace Types: Normal, Max Hold, Min Hold, Average (2–256)
- Detection Methods: Sample, +Peak, -Peak, Average
- FFT Windows & Factors:
- Hanning: 1.44
- Rectangular: 0.89
- Hamming: 1.30
- Blackman: 1.68
AWG (Arbitrary Waveform Generator)
- Channels: 2
- Sample Rate: 200MSa/s
- Vertical Resolution: 14 bits
- Max Frequency: 25MHz
- Waveforms: Sine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaussian, Lorentz, Exp Rise/Fall, Haversine, Cardiac
- Output Range:
- High-Z: 20mVpp to 5Vpp
- 50Ω: 10mVpp to 2.5Vpp
- Output Resolution: 1mV
- Accuracy: ±2% at 1kHz
- Offset Range: ±2.5V (High-Z), ±1.25V (50Ω)
- Sine Specs:
- Frequency: 100mHz to 25MHz
- Flatness: ±0.5dB <15MHz, ±1dB up to 25MHz
- Harmonic/Spurious: < -40dBc
- THD: 1%, SNR: 40dB
- Square/Pulse Specs:
- Frequency: 100mHz to 15MHz
- Rise/Fall Time: <15ns
- Overshoot: <3%
- Duty Cycle: 0.4%–99.6%
- Min Pulse Width: 30ns
- Jitter: 500ps
- Ramp Specs:
- Frequency: 100mHz to 1MHz
- Linearity: 1%
- Symmetry: 0–100%
Frequency Response Analysis
- Dynamic Range: >80dB (typical)
- Channels: CH1 or CH2 (CH3/CH4 for 4ch models)
- Frequency Range: 20Hz to 25MHz
- Test Points: 10 to 90 per decade
- Amplitude: 20mVpp to 5Vpp (High-Z)
- Results: Log gain and phase plot
- Manual Markers: 2 pairs tracking gain/phase
- Scaling: Auto-scaled during test
DMM (MDO-2000EX only)
- Digit Level: 5000 counts
- Safety Ratings: CAT II 600Vrms, CAT III 300Vrms
- DC Voltage Ranges: 50mV–1000V, Accuracy: ±0.1% + 5 digits
- DC Current Ranges: 50mA–10A, Accuracy:
- 50mA–500mA: ±0.5% + 0.05mA
- 10A: ±0.5% + 50mA
- AC Voltage Ranges: 50mV–700V, Accuracy: ±1.5% + 15 digits (50Hz–1kHz)
- AC Current Ranges: 50mA–10A, Accuracy:
- 50mA–500mA: ±1.5% + 0.05mA
- 10A: ±3% + 50mA
- Resistance Ranges: 500Ω–5MΩ, Accuracy:
- 500Ω–500kΩ: ±0.3% + 3 digits
- 5MΩ: ±0.5% + 5 digits
Power Supply (MDO-2000EX only)
- Channels: CH1 & CH2
- Voltage Range: 1.0V to 5.0V (0.1V steps)
- Max Current: 1A
- Voltage Accuracy: ±3%
- Ripple & Noise: 50mVrms
Miscellaneous
- Multilanguage Menu: Yes
- Operating Environment:
- Temperature: 0°C to 50°C
- Humidity: ≤80% @ 40°C; ≤45% @ 41–50°C
- Online Help: Available
- Clock: Date/Time for data logging
- Dimensions: 384mm x 208mm x 127.3mm
- Weight: 3kg
Accessory
- User Manual CD x1, Power Code x1
GTL-110
BNC-BNC cable*2 - GTL-105A
Alligator Clip test lead (only on MDO-2000EX) - GTL-207
Banana plug test lead (only on MDO-2000EX) - GTP-070B-4
70MHz(10:1/1:1)Switchable passive probe for MDO-2072E(X)/2074E(X)(one per channel) - GTP-100B-4
100MHz(10:1/1:1)Switchable passive probe for MDO-2102E(X)/2104E(X)(one per channel) - GTP-200B-4
200MHz(10:1/1:1)Switchable passive probe for MDO-2202E(X)/2204E(X)(one per channel)
Optional Accessories
- GRA-426
Rack Adapter Panel - GAK-003
50 Impedance Adapter - GSC-008
Soft Carrying Case - GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm
- GDB-03 Oscilloscope Education & Training Kit
- GTP-033A Oscilloscope Probe, 35MHz 1:1 Passive Probe, BNC(P/M)
- GCP-300 Current Probe, DC ~ 300kHz, 200A
- GCP-500 Current Probe, DC ~ 500kHz, 150A
- GCP-1000 Current Probe, DC ~ 1MHz, 70A
- GCP-1030 Current Probe, DC~100MHz, 30Arms, Current Probe
- GCP-206P Current Probe – Power Supply, 2 Channel Power Supply for GCP-530/1030
- GCP-425P Current Probe – Power Supply, 4 Channel Power Supply for GCP-530/1030
- GCP-530 Current Probe, DC~50MHz, 30Arms, Current Probe
- GDP-025 Differential Probe, 25M High Voltage Differntial Probe
- GDP-050 Differential Probe, 50M High Voltage Differntial Probe
