- Low Voltage Electrical Test
- Hi pot/ Insulation Test
- 20 Channels
- Test Frequency (200k/500k/1MHz)
- AC Voltage Output 5000V
- DC Voltage Output 6000V
- Insulation Resistance 12000MΩ

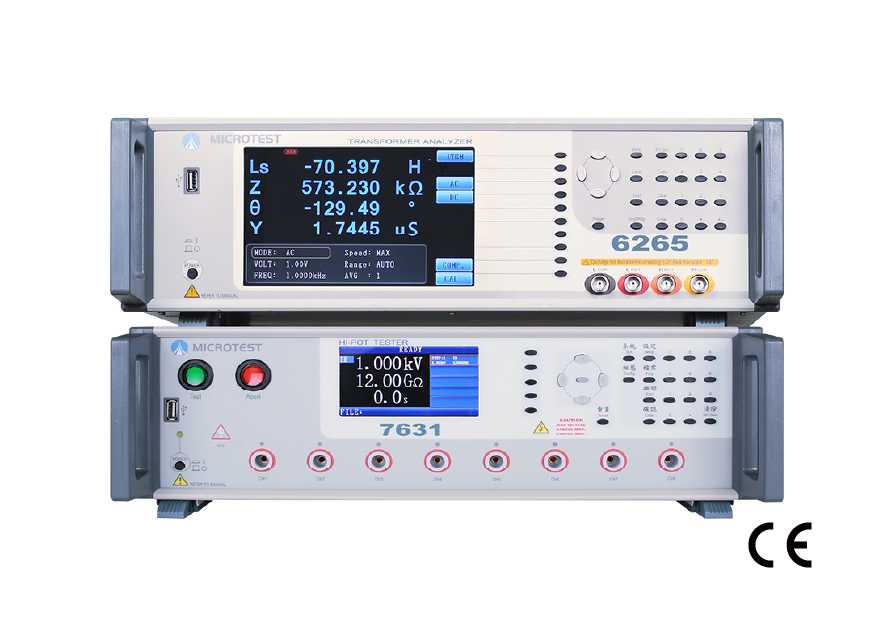

2-in-1 Transformer Testing System Low Voltage+Safety
- Comprehensive Testing Combines low-voltage electrical characteristics testing and AC/DC withstand voltage insulation testing (up to 5000V/6000V).
- 20 Testing Channels Simultaneously tests multiple transformer parameters including inductance, leakage inductance, resistance, and capacitance.
- High-Voltage Capability AC output up to 5000V, DC output up to 6000V, and insulation resistance of 12,000MΩ.
- Flexible Test Frequencies Supports selectable test frequencies of 200kHz, 500kHz, and 1MHz for precise measurements.
- PC Integration Connects to PC software for easy data storage and analysis, enhancing testing efficiency and traceability.
The MICROTEST 2-in-1 Transformer Integrated Test System is a versatile solution for low-voltage electrical testing and safety compliance, offering a comprehensive range of features for transformer product testing. It includes 20 testing channels, enabling simultaneous testing of various electrical characteristics such as inductance, leakage inductance, resistance, and capacitance. The system supports both AC and DC withstand voltage insulation testing, with output capabilities of 5000V for AC and 6000V for DC, ensuring thorough safety assessments. Test frequencies of 200kHz, 500kHz, and 1MHz are selectable, and the system is compatible with PC software for data storage and analysis. This all-in-one testing platform ensures efficient, accurate, and reliable testing of transformer products.
Specifications
SPEC
| Model | 2-in-1
(626X+7631) |
|||||
| Test Channel | 20 | |||||
| Low Voltage Electrical Test | ||||||
| Model | 6265 | 6266 | 6267 | |||
| Frequency | 10Hz-200kHz | 10Hz-500kHz | 10Hz-1MHz | |||
| Frequency Resolution | 5 digits | |||||
| Basic Accuracy | ±0.1% | |||||
| AC Drive Level | 10mV-2Vrms | |||||
| DC Drive Level | 10mV-2V | |||||
| Output Impedance | 100Ω | |||||
| Turn | Inductance or Voltage
Test Freqeuncy：50Hz-200kHz |
|||||
| Test Mode | Meter Mode / List Mode | |||||
| Parameters Measurement | Inductance (L)、Impedance (Z)、Capacitance (C)、Resistance (R)、Conductance (G)、Susceptance (B)、Admittance (Y)、Alternating Current Resistance (ACR)、Quality Factor (Q)、θ、Direct Current Resistance (DCR)、Leakage Inductance、Turn Ratio、Balance、Short Circuit | |||||
| L, LK | 0.1nH ~ 9999.99H | |||||
| C | 0.00001pF ~ 999.99mF | |||||
| Q,D | 0.00001 ~ 99999 | |||||
| Z,X,R | 0.00001Ω ~ 99.9999MΩ | |||||
| Y | 0.01nS ~ 99.9999S | |||||
| θ | -180°~ +180° | |||||
| DCR | 0.1mΩ ~ 99.999 MΩ | |||||
| Turn | 0.1 ~ 99999.9 turns | |||||
| Pin-Short | 12 pairs, between pin to pin | |||||
| Hi pot/ Insulation Test | ||||||
| Items | AC Hi pot | DC Hi pot | IR | |||
| Output Voltage | 10V-5000V | 10V-6000V | 10V-1000V | |||
| Voltage Resolution | 1V | 1V | 1V | |||
| Voltage Accuracy | ||||||
| Test Range | 0.001-31mA | 0.001-11mA | 1-12000MΩ | |||
| AC Arcing Detection | 0-20 | 0-10 | – | |||
| Measuring time | 0.1-999s | |||||
| Ramp Time | 0.1-10s | |||||
| Time Resolution | 0.1s | |||||
System
| Model | Transformer Tester | Hi pot Tester |
| 6265/6266/6267 | 7631 | |
| Built-in stroage | 128 sets | 15 sets |
| PC Link-stroage | Unlimited storage | |
| Power Supply | Voltage
98Vac-132Vac 或195Vac-264Vac |
Voltage
98Vac-132Vac 或195Vac-264Vac |
| Frequency：47-63Hz | Frequency：47-63Hz | |
| Power consumption | 400VA/set | |
| Dimension (W*H*D) | 344x145x343 mm (W*H*D) | 435x145x500 mm (W*H*D) |
| Weight | 9 Kg | 15kg |
| Interface | RS-232、Handler、LAN、USB Host、EXT. I/O | RS-232、Remote、USB Host、USB Device、EXT.I/O |
| Displa | Color Screen, 7″ TFT (800*480) |
Color Screen, 4.3″ TFT (480*272) |
Standard Accessories
| Power Cord | |
| Fixture (F7721) |  |
| Foot Switch (F522010) | |
| HV Test Cable | |
| Remote Cable | |
Optional Accessories
| PC Link Software | |
| Cable (RS-232) | |
| Fixture (F7721-D) |  |
