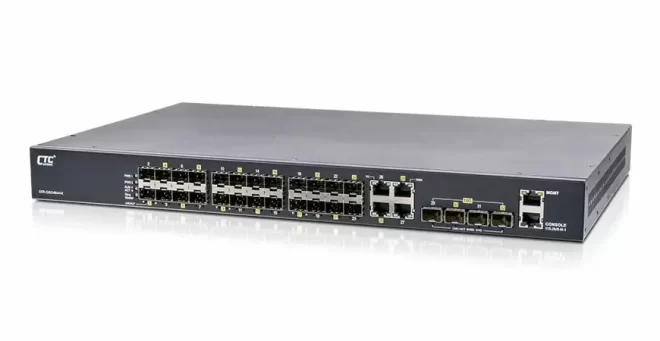

    Layer 3 Rackmount Switch | Industrial Layer 3 10G Switch IXR-GS24044X

    • High-Performance Layer 3 Switching  Supports VRRP v2/v3, IPv4/IPv6 static and dynamic routing (RIP v1/v2, OSPF v2/v3).
    • Flexible Connectivity  Features 24x 100/1000Base-X SFP, 4x GbE RJ45, and 4x 1G/2.5G/10G SFP+ ports.
    • Industrial-Grade Reliability  Fanless, IP30-rated metal housing with 4KV surge protection for RJ45 and SFP ports.
    • Redundant Power Support  Dual 24/48/-48VDC or 110/220VAC isolated power inputs.
    • Supports u-Ring, ERPS, EPS, MSTP, RSTP, and STP for rapid failover protection.
    Send Enquiry

    Send Inquiry

    Features

    • Redundant isolated 24/48/-48VDC (18~60VDC), or/and isolated 110/220VAC power inputs
    • Supports negative voltage power input
    • 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
    • STP, RSTP, MSTP, G.8031 EPS, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
    • Provides 14 instances each can support μ-Ring, u-Chain or Sub -Ring for flexible networking applications
    • μ-Ring redundancy, recovery time <20ms in 250 devices
    • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
    • Supports EMS Management

    As an industrial Layer 3 Ethernet switch for process and transportation automation applications, IXR-GS24044X supports static and dynamic routing protocols, features 4 10G SFP+ slots, 24 100/1000 SFP slots and 4 Gigabit UTP ports, fanless design and redundancy isolated power supplies, certified to many industry-grade standards, are ideal for deployment in harsh environments to provide mission-critical network services.

    Specifications

    • Backplane Switching Fabric: 136Gbps full wire-speed
    • Data Processing: Store and Forward
    • Jumbo Frame: 10K bytes
    • MAC Address Table: 32K
    • Redundant Power: Dual 24/48/-48VDC or 110/220VAC inputs
    • Operating Temperature: -40°C to 60°C
    • Certification: EN62368-1, EN50121-4, EN61000-6-2/4, CE, FCC

    Ordering Information

    • Model: IXR-GS24044X-AA / IXR-GS24044X-AD / IXR-GS24044X-DD
    • Ports: 24x 100/1000Base-X SFP, 4x GbE RJ45, 4x 10G SFP+
    • Power Input: 24/48/-48VDC or 110/220VAC
    • Operating Temp: -40°C to 60°C
