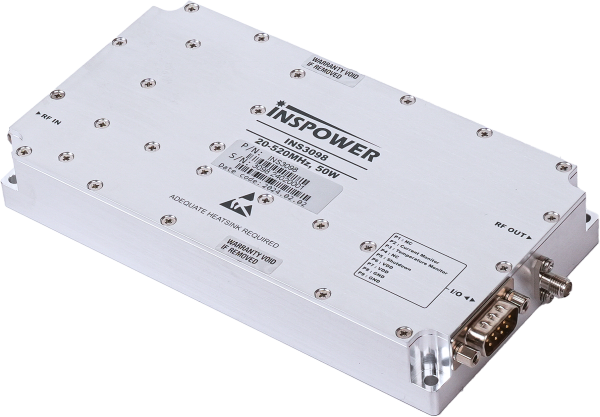

The INS3098 is a high-performance broadband amplifier designed for RF applications requiring wide frequency coverage from 20 MHz to 520 MHz
It delivers 50 Watts of output power and 46 dB of gain, providing strong and stable signal amplification across various systems
Compact in size at 162.56 x 86.36 x 25.4 mm, it allows seamless integration into both portable and fixed installations
Operates efficiently at 28 Volts and 7 Amps, ensuring reliable and continuous performance under demanding conditions
Supports CW, FM, and AM modulation, making it ideal for communication, industrial, and testing applications
Key Features
Wide frequency range for versatile RF applications
High output power with excellent linearity
Strong gain performance for reliable signal amplification
Supports CW, FM, and AM modulation formats
Compact and rugged design for easy system integration
Low signal distortion for high-fidelity transmission
Optimized for continuous operation in demanding environments
Suitable for communication, industrial, and test system applications
The INS3098 Broadband Amplifier is a high-performance RF amplifier designed for wideband applications that demand power, reliability, and signal clarity. Spanning a broad frequency range, this amplifier is built to handle complex signal environments with stability and efficiency. It delivers substantial output power and excellent gain, ensuring high-fidelity signal transmission across various modulation formats. Whether used in communication systems, test equipment, or industrial setups, the INS3098 provides consistent performance and low distortion, making it an essential component for RF engineers and system integrators.
Built with durability and ease of integration in mind, the INS3098 features a compact and rugged housing that fits comfortably into most system designs. Its robust construction supports continuous operation, even under demanding conditions, while maintaining signal integrity. The amplifier is optimized for CW, FM, and AM applications, providing flexibility across multiple use cases. With efficient power handling and a user-friendly design, the INS3098 stands out as a reliable solution for modern broadband amplification needs.
| INS3098 Broadband Amplifier – Specifications | |
|---|---|
| Frequency Range | 20 MHz to 520 MHz |
| Output Power (Pout) | 50 Watts |
| Gain | 46 dB |
| Operating Voltage | 28 Volts |
| Current Consumption | 7 Amps |
| Dimensions | 162.56 mm x 86.36 mm x 25.4 mm |
| Supported Modulation Types | CW, FM, AM |
| Application | Broadband RF amplification for communication, industrial, and test environments |
| INS3098 Broadband Amplifier – Included Accessories | |
|---|---|
| Accessory | Description |
| DC Power Cable | Heavy-duty cable compatible with 28V operation, ensuring stable and safe power connection |
| Mounting Hardware | Includes brackets and screws for secure amplifier installation in system enclosures or test setups |
| RF Connectors | Pre-installed or bundled connectors (SMA or N-type, based on configuration) for easy signal input/output integration |
| Cooling Plate (Optional) | Passive heatsink accessory designed to maintain optimal operating temperatures under continuous load |
| User Manual | Detailed guide covering installation, operating procedures, technical specifications, and safety instructions |
| Performance Test Report (Optional) | Factory test report certifying amplifier performance across key metrics, available upon request |
