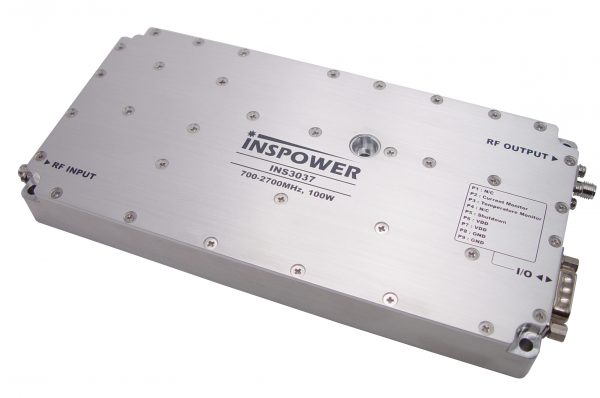

INS3037 Broadband Amplifiers

Key Features:

Wide frequency range for versatile broadband applications
High and stable gain with minimal signal distortion
Efficient thermal management for reliable continuous operation
Compact design suitable for easy integration into various systems
Durable construction for long-lasting performance in demanding environments
Optimized for RF and microwave communication systems
Maintains signal integrity with low noise and high linearity
Ideal for laboratory, commercial, and industrial applications

The INS3037 Broadband Amplifier is a high-performance solution engineered to deliver reliable amplification across a wide frequency range, making it suitable for demanding RF and microwave applications. Designed with precision and advanced semiconductor technology, this amplifier ensures consistent power output, stable gain, and excellent linearity, allowing it to perform efficiently in diverse communication systems. Its robust construction and efficient thermal management provide durability and long-lasting operation, even under continuous use. This makes it an ideal choice for integration into test equipment, laboratory setups, and commercial as well as industrial systems requiring broadband coverage.

Built with a compact footprint and optimized for versatility, the INS3037 Broadband Amplifier supports seamless operation within a variety of environments where high signal fidelity and minimal distortion are critical. It offers dependable performance across its specified frequency range, with attention to maintaining signal integrity and reducing noise. With a focus on user convenience, the amplifier combines advanced technical specifications with ease of installation and reliable operation, ensuring it meets the needs of engineers, researchers, and system integrators who demand accuracy, efficiency, and consistency from their RF components.

Electrical Specifications @ +28.0VDC, 25ºC, 50ꭥ System

Symbol	Parameter	Unit	Min.	Typ.	Max.
BW	Operating Frequency	MHz	700		2700
PSAT	Power Output Saturated	Watt	100	120
P1dB	Power Output P1dB	Watt		50
G1dB	Power Gain	dB	50
PIN	Input Power for Rated PSAT	dBm		0	3
ΔGSS	Small Signal Gain Flatness	dB			±3.0
ΔGP	Power Gain Flatness	dB			±2.0
S11	Input Return Loss	dB			-10
IP3	Third Order Intercept Point 2-Tone@37dBm/Tone, 1MHz Spacing	dBm		+50
H	Harmonics @Pout=100W	dB		-25
Spur	Spurious Signal	dBc		-70	-60
VDC	Operation Voltage	Volt	26.0	28.0	30.0
IDD	Current Consumption @Pout=100W	Amp		11.5	14
IDQ	Quiescent Current	Amp		2.5	3.0
ISQ	Current Consumption @Shutdown	mA			200
TON/OFF	Switching Time	uSec		2	5

Mechanical Specification

Parameters	Value	Limit	Unit
Dimension ( W ´ D ´ H )	185 * 90 * 22	–	mm
RF Connector Input/output	SMA Female	–	–
DC Interface Connector	D-Sub 9pin Male	–	–
Weight	700	Max	gram
Cooling	External Heat-sink	–	–

Environmental Characteristics

Parameters	Specifications	Remark
Operating Case Temperature Range	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Relative Humidity non-condensing	95%

Protection

Item	Specifications for Activation	Remark
Input Overdrive	+10dBm Max
Load VSWR	∞ : 1
Thermal Degradation	85°C Min

I/O Interface (D-sub 9pin Male)

Pin No	Pin Description	Specifications	Remark
1	NC	Not Connected
2	Current Monitor	Analog Voltage Relative to IDD @ 25mV/100mA
3	Temp Monitor	Vout=10mV/°C´Temp+500mV
4	NC	Not Connected
5	Shutdown	Enable : TTL “0” or Open Disable: TTL”1”= 3.3-5V
6	VDD	+28VDC
7	VDD	+28VDC
8	GND	Ground
9	GND	Ground
