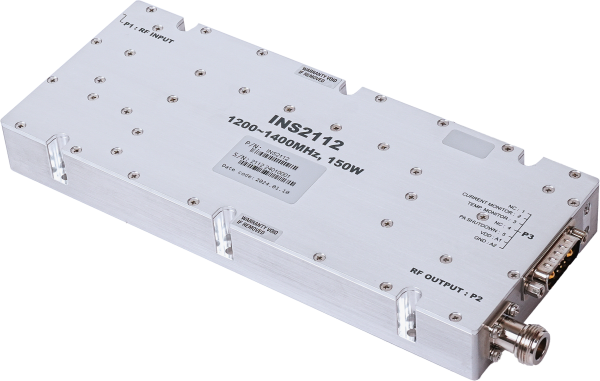

INS2112 Band Specific Power Amplifier

Key Features:

Band-specific design optimized for GSM, LTE, and 5G wireless applications
High output power with superior linearity for stable and efficient transmission
Low noise figure and optimized gain for clean, reliable amplification
Energy-efficient performance with reduced power consumption for modern RF systems
Compact and rugged footprint for seamless integration in space-constrained designs
Integrated thermal protection and reverse load tolerance for reliable operation
RoHS-compliant construction ensuring eco-friendly and safe deployment

The INS2112 Band Specific Power Amplifier is a high-performance RF solution engineered to deliver exceptional power, efficiency, and linearity within defined frequency bands. Optimized for targeted GSM, LTE, and 5G applications, it ensures reliable data and voice transmission with superior signal integrity. By focusing on specific bands, the module enhances efficiency and minimizes noise, making it ideal for communication systems where precision and stability are critical. Its optimized gain and low noise figure ensure clean amplification and robust network connectivity even under challenging conditions.

Designed with durability and ease of integration in mind, the INS2112 features a compact, rugged form factor suitable for both commercial and industrial applications. Built-in thermal management and reverse load protection safeguard performance during continuous operation, while RoHS compliance ensures environmentally safe design and deployment. With its reliable performance and band-optimized architecture, the INS2112 Band Specific Power Amplifier is the perfect choice for enhancing wireless communication infrastructure, IoT devices, and embedded RF systems requiring dependable and energy-efficient amplification.

Electrical Specifications @ +28.0VDC, 25ºC, 50ꭥ System

Symbol	Parameter	Unit	Min.	Typ.	Max.
BW	Operating Frequency	MHz	1200		1400
PSAT	Power Output Saturated	Watt	150
P1dB	Power Output P1dB	Watt		80
G1dB	Power Gain	dB	52	53
PIN	Input Power for Rated PSAT	dBm		0	3
ΔGSS	Small Signal Gain Flatness	dB			±2.0
ΔGP	Power Gain Flatness	dB			±1.0
S11	Input Return Loss	dB			-10
IMD	Third Order Intermodulation Distortion 2-Tone@44dBm/Tone, 2MHz Spacing	dBc		-30
H	Harmonics @Pout=150W	dBc		-50	-45
Spur	Spurious Signal	dBc		-70	-60
VDC	Operation Voltage	Volt	26.0	28.0	30.0
IDD	Current Consumption @Pout=150W	Amp		14	17
IDQ	Quiescent Current	Amp			3
ISQ	Current Consumption @Shutdown	mA			200
TON/OFF	Switching Time	uSec		2	5

Mechanical Specification

Parameters	Value	Limit	Unit
Dimension (W ´ D ´ H)	230 * 95 * 26.8	–	mm
RF Connector Input/output	SMA Female / N Female	–	–
DC Interface Connector	D Sub Hybrid 7W2 @ Male, 4-40 Screw	–	–
Weight	1.1	Max	Kg
Cooling	External Heat-sink	–	–

Environmental Characteristics

Parameters	Specifications	Remark
Operating Case Temperature Range	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Relative Humidity non-condensing	95%

Protection

Item	Specifications for Activation	Specifications for Recovery
Input RF drive level without damage	+5dBm Max
VSWR Protection	Isolator included, VSWR = inf
VSWR Shutdown	3:1 Max (R. L= 6dB)
VSWR Shutdown Threshold	Threshold 45dBm min
Thermal Overload	+90 °C ±5 °C Shutdown	+70 °C ±5 °C Auto-recover

DC/ Interface (D-sub, Hybrid 7W2, Male)

Pin No	Pin Description	Specifications
1	NC	Not Connected
2	Current Monitor	Analog Voltage Relative to IDD @ 10mV/100mA
3	Temp Monitor	Vout=10mV/°C´Temp+500mV
4	GND	Ground
5	PA Shutdown	TDD Fast Switching (RF Enabled State: 0V or Open, Disabled State: 3.3V TTL)
A1	VDD	+28VDC
A2	GND	Ground
