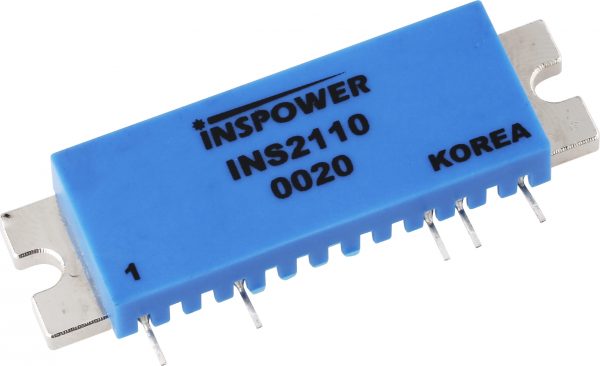

INS2110 RF Hybrid IC Amplifiers

INS2110 RF Hybrid IC Amplifiers

  • Wideband amplifier covering 500 MHz to 2700 MHz, ideal for LTE, 5G, and radar systems.

  • Delivers high gain of 24 dB and excellent linearity for strong, distortion-free signal amplification.

  • Features a low noise figure of 2.3 dB, ensuring clear signal quality in sensitive RF environments.

  • Compact hybrid IC design with internal matching for simplified integration and stable performance.

  • Rugged, hermetically sealed package with thermal and RF protection for reliable operation in harsh conditions.

Send Enquiry

Key Features

  • Wide frequency coverage for versatile RF use

  • High gain ensures strong signal amplification

  • Low noise figure for clear signal quality

  • Internally matched input and output ports

  • High linearity minimizes signal distortion

  • Compact hybrid IC for easy system integration

  • Hermetically sealed for rugged environments

  • Built-in thermal and RF protection features

  • Suitable for LTE, 5G, radar, and telecom systems

  • Stable performance across temperature extremes

The INS2110 RF Hybrid IC Amplifier is a high-efficiency, wideband amplifier module designed for demanding RF applications in wireless infrastructure, communication systems, and defense electronics. Utilizing advanced hybrid integration techniques, it combines active RF components with passive matching networks in a compact, hermetically sealed package. This design offers excellent gain, linearity, and thermal stability across a broad frequency range, making the INS2110 ideal for both driver and final-stage amplification. With its low noise figure and high output power, it ensures strong and reliable signal amplification in mission-critical environments.

Engineered for easy integration, the INS2110 features internally matched input and output ports, simplifying system design and minimizing external circuitry. Its rugged construction and built-in protection mechanisms make it suitable for operation under harsh environmental conditions. Whether deployed in LTE/5G base stations, radar platforms, or other RF transmission systems, the INS2110 delivers consistent performance with excellent signal integrity, supporting high-data-rate applications with minimal distortion or interference.

Specifications

Parameter Specification
Model INS2110
Frequency Range 500 MHz – 2700 MHz
Gain 24 dB (typical)
Noise Figure 2.3 dB (typical)
Output Power (P1dB) +31 dBm (typical)
Input Return Loss ≥ 12 dB
Output Return Loss ≥ 14 dB
DC Supply Voltage +12 V DC
Current Consumption 280 mA (typical)
Package Type Hermetically Sealed Hybrid IC
Operating Temperature -40°C to +85°C
Applications LTE, 5G, Radar, RF Communication Systems



Accessory Description
RF Coaxial Cables High-quality SMA/N-type cables for low-loss RF connections.
DC Power Supply (+12V) Regulated power source designed for stable amplifier operation.
Heatsink Assembly Passive cooling component to maintain optimal thermal performance.
Cooling Fan Optional active cooling for enhanced thermal management.
Mounting Kit Screws, brackets, and fixtures for secure installation.
EMI Shielding Cover Reduces electromagnetic interference in sensitive RF setups.
Surge Protector Protects amplifier from voltage surges and static discharge.
Status Monitor Board Optional board for temperature and power status monitoring.
