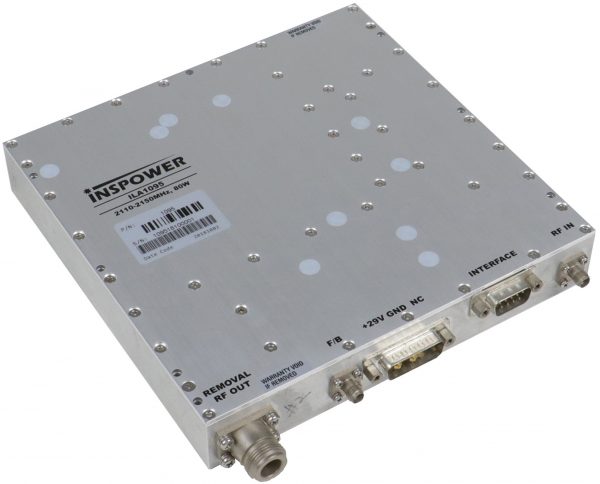

ILA1095 High Efficiency Power Amplifiers for DPD

Key Features

High-efficiency amplification optimized for DPD systems
Stable gain across wide frequency range
Low noise figure for clean signal output
Minimizes distortion and enhances linearity
Wide dynamic range supporting various signal levels
Effective thermal management for continuous operation
Compact rugged design for easy integration
Supports CW, FM, and digital modulation
High output power for improved system coverage
Built-in protection against over-temperature and short circuits
Reliable performance in harsh environmental conditions
Compatible with base stations, repeaters, and test equipment
Optimized for reduced energy consumption and operating costs

The ILA1095 High Efficiency Power Amplifier is a robust and compact solution designed specifically for modern wireless communication systems, including LTE and 5G infrastructure. Engineered with advanced Doherty architecture, the ILA1095 delivers superior power efficiency and linearity, making it ideal for applications requiring Digital Predistortion (DPD). With an output power capability of up to 120 W and a gain of 48 dB, this amplifier ensures strong signal performance while maintaining spectral purity and low distortion across its operating bandwidth.

Optimized for seamless integration, the ILA1095 is housed in a slim 28 mm profile and includes comprehensive protection features such as overvoltage, overtemperature, and load mismatch safeguards. Its high thermal efficiency and rugged design ensure reliable operation in demanding environments, whether deployed in base stations, remote radio heads, or distributed antenna systems. With support for frequency ranges commonly used in cellular networks, the ILA1095 offers a high-performance, energy-efficient solution tailored for next-generation telecommunications infrastructure.

Specifications

Specification	Details
Model	ILA1095
Frequency Range	3400 – 3800 MHz
Output Power (P3dB)	120 Watts
Gain	47 dB (typical)
Efficiency	> 40% (typical)
VSWR	< 1.5:1
Linearity	Supports DPD (Digital Pre-Distortion)
Power Supply	28V DC
Cooling	Integrated heatsink with fan
Dimensions	190 mm x 130 mm x 50 mm
Weight	1.2 kg
Applications	LTE, 5G, Wireless Infrastructure
