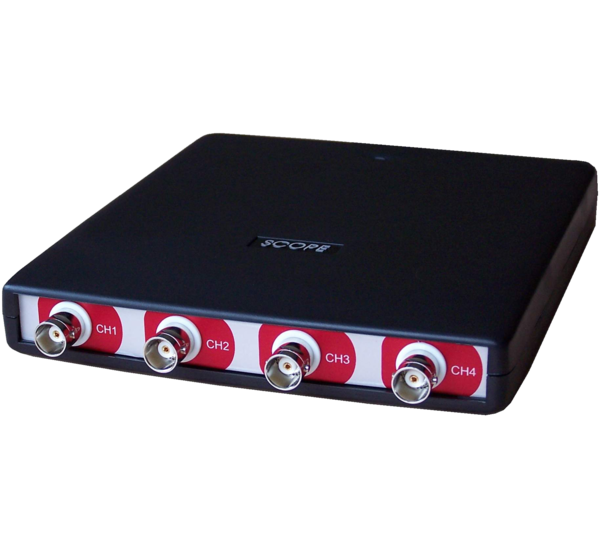

Handyscope HS4-DIFF-10

High-Resolution Sampling The Handyscope HS4-DIFF-10 delivers a maximum sampling rate of 10 MSa/s, allowing for precise and detailed waveform capture, suitable for analyzing fast-changing electrical signals in various applications.
Efficient Data Streaming With a maximum streaming speed of 100 KSa/s, it enables continuous real-time data transfer to a PC, ideal for long-duration monitoring, diagnostics, and data logging without data loss.
Differential Measurement Capability Equipped with differential inputs, it ensures accurate signal measurement with excellent noise immunity, making it ideal for sensitive or high-voltage environments.
Portable and USB-Powered Its compact, rugged design and USB-powered operation provide convenience and mobility, perfect for both field and lab use.
Powerful Software Integration Seamlessly works with TiePie’s Multi Channel software, offering advanced tools like FFT analysis, triggering, data recording, and automation for professional-level signal analysis.

Key Features

Differential USB oscilloscope for accurate signal analysis
Max. sampling speed 10 MSa/s
Max. streaming speed 100 KSa/s
USB-powered, no external power supply needed
Excellent noise immunity with differential inputs
Compact and rugged design for portability
Ideal for industrial, educational, and lab use
Compatible with TiePie’s Multi Channel software

The Handyscope HS4-DIFF-10 is a high-precision, compact, and robust PC-based differential USB oscilloscope, engineered for demanding signal analysis in a variety of industrial, scientific, and educational applications. With a maximum sampling speed of 10 mega samples per second (10 MSa/s), it captures high-resolution waveforms with exceptional accuracy, making it ideal for analyzing rapidly changing signals. Its differential input architecture offers enhanced signal integrity and superior noise immunity, especially in electrically noisy environments, by eliminating common-mode voltage interference. This oscilloscope is equipped with a maximum streaming speed of 100 kilo samples per second (100 KSa/s), enabling real-time continuous data transfer to a PC for extended signal monitoring and analysis. Designed for portability and reliability, the HS4-DIFF-10 connects directly to a computer via USB, drawing power through the USB interface, which eliminates the need for external power sources. The device is supported by TiePie engineering’s powerful and user-friendly Multi Channel oscilloscope software, providing advanced measurement tools, real-time signal analysis, data logging, and remote control options. Its rugged housing and compact form factor make it suitable for both fieldwork and bench-top use. The Handyscope HS4-DIFF-10 is a versatile and precise measurement tool for professionals who require high-performance differential measurements in a portable, USB-powered format.

Handyscope HS4 DIFF Specifications

Acquisition system
Number of input channels	4 analog
Ch1, Ch2, Ch3, Ch4	Isolated BNC, female
Type	Differential
Resolution	User selectable in software
Native	12 bit
Enhanced	14, 16 bit
Accuracy	0.3 % of full scale ± 1 LSB
Noise	135 µVrms (200 mV range, 12 bit, 50 MSa/s) 50 µVrms (200 mV range, 16 bit, 195 kSa/s)
Ranges (Full scale)	±200 mV ±400 mV ±800 mV	±2 V ±4 V ±8 V	±20 V ±40 V ±80 V
Coupling	AC/DC
Impedance	2 MΩ / 40 pF
Maximum input voltage (in all ranges)	±200 V (DC + AC peak < 10 kHz) with 1:10 attenuator ±300 V (DC + AC peak < 10 kHz)
Maximum Common Mode voltage	200 mV to 800 mV ranges : 2 V 2 V to 8 V ranges : 20 V 20 V to 80 V ranges : 200 V
Common Mode Rejection Ratio	-48 dB
Bandwidth (-3dB)	DC to 50 MHz maximum
AC coupling cut off frequency (-3dB)	1 Hz
Channel Isolation	500 V
Channel Separation	-80 dB

Maximum sampling rate	HS4 DIFF-50	HS4 DIFF-25	HS4 DIFF-10	HS4 DIFF-5
12 bit	50 MSa/s	25 MSa/s	10 MSa/s	5 MSa/s
14 bit	3.125 MSa/s	3.125 MSa/s	3.125 MSa/s	3.125 MSa/s
16 bit	195.3 kSa/s	195.3 kSa/s	195.3 kSa/s	195.3 kSa/s

Maximum streaming rate	HS4 DIFF-50	HS4 DIFF-25	HS4 DIFF-10	HS4 DIFF-5
12 bit	500 kSa/s	250 kSa/s	100 kSa/s	50 kSa/s
14 bit	480.8 kSa/s	250 kSa/s	99.2 kSa/s	50 kSa/s
16 bit	195.3 kSa/s	195.3 kSa/s	97.7 kSa/s	48.8 kSa/s

Sampling clock source
Internal	Quartz
Accuracy	±0.01 %
Stability	±100 ppm over -40 °C to +85 °C
Time base aging	±5 ppm/year
External	On extension connector
Voltage	3.3 V TTL, 5 V TTL tolerant
Frequency range	95 MHz to 105 MHz

Memory	128 Kpts per channel

Trigger	Only available in scope/block mode, not in streaming mode
System	Digital, 2 levels
Source	CH1, CH2, CH3, CH4, OR, digital external
Trigger modes	Rising edge, Falling edge Inside window, Outside window
Level adjustment	0 to 100 % of full scale
Hysteresis adjustment	0 to 100 % of full scale
Resolution	0.025 % (12 bits)
Pre trigger	0 to 131071 samples, 1 sample resolution
Post trigger	0 to 131071 samples, 1 sample resolution
Trigger hold-off	0 to 1048576 Samples, 1 sample resolution
Digital external trigger
Input	Extension connector
Range	0 to 3.3 V (5 V max)
Coupling	DC
Interface
Interface	USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
Power Requirements
Power from USB port	500 mA max (2.5 W max)
Power via external power input / extension connector	1500 mA max (7.5 W max)
Minimum voltage	4.5 V_DC
Maximum voltage	14 V_DC
Physical
Instrument height	25 mm (1 inch)
Instrument length	170 mm (6.7 inch)
Instrument width	140 mm (5.2 inch)
Cord length	1.8 m (70 inch)
Weight	460 g (16 ounce)
I/O connectors
Channel 1…4	Isolated BNC, female
USB	fixed cable with USB 2.0 and USB 1.1 type A connector
Extension connector	D-sub 25 pins female
System Requirements
PC I/O connection	USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
Operating System	Windows 10 / 11, 64 bits, and Linux (via libtiepie-hw SDK)
Operating Environment
Ambient temperature	0 to 55 °C
Relative humidity	10 to 90% non condensing
Storage Environment
Ambient temperature	-20 to 70 °C
Relative humidity	5 to 95% non condensing
Certifications and Compliances
CE mark compliance	Yes
RoHS	Yes

Accessories

Package
Convenient carrying case
Instrument	Handyscope HS4 DIFF
Measure leads	4 x Measure lead TP-C812B, BNC -> 4 mm banana plug
Accessories	4 x Differential attenuator TP-DA10 external power cable for second USB port
Software	Windows 10 / 11, 64 bits, via website
Drivers	Windows 10 / 11, 64 bits, via website
Software Development Kit	for Windows 10 / 11, 64 bits, and Linux, via website
Manual	instrument manual and software user’s manuals color printed on paper and digital, via website
Total package weight	Approx. 3 kg
