Handyscope HS4-5

  • DCT | Test and Measurement
  • Products
  • Handyscope HS4-5
    • Handyscope HS4-5

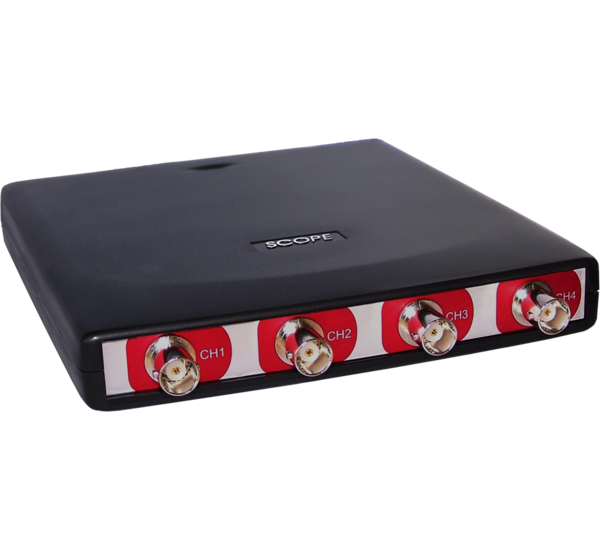

    Handyscope HS4-5

    • High-Speed Sampling Offers a maximum sampling rate of 5 MSa/s, ensuring precise waveform capture for high-frequency signals and detailed analysis.
    • Efficient Streaming Provides a maximum streaming speed of 50 KSa/s for continuous real-time data acquisition, ideal for monitoring long-duration signals.
    • Compact & Portable A lightweight, space-saving design makes the HS4-5 easy to carry and use in the field, without compromising on performance.
    • USB Powered Operates directly from a PC via USB connection, eliminating the need for external power sources and simplifying setup.
    • Versatile Applications Perfect for signal analysis in diverse fields such as education, R&D, diagnostics, and industrial testing, offering both flexibility and accuracy.
    Send Enquiry

    Send Inquiry

    Key Features

    • USB oscilloscope for PC-based measurements
    • 5 MSa/s max sampling for high-resolution capture
    • 50 KSa/s streaming for long-duration monitoring
    • Compact, portable design for field and lab use
    • USB-powered—no external power needed
    • Supports real-time signal analysis and triggering
    • Ideal for education, diagnostics, and R&D

    The Handyscope HS4-5 is a highly versatile and compact USB oscilloscope designed to deliver precise signal analysis for professionals in electronics, engineering, and industrial diagnostics. With a maximum sampling speed of 5 mega samples per second (MSa/s), the HS4-5 captures high-resolution waveforms, making it ideal for detailed analysis of fast digital and analog signals. It features a maximum streaming speed of 50 kilo samples per second (KSa/s), enabling continuous data acquisition directly to a computer without internal memory limitations—perfect for monitoring slow or long-duration signals in real-time. The device connects seamlessly via USB, drawing power from the host computer, which ensures ease of portability and setup in a variety of field and lab environments. Despite its small footprint, the Handyscope HS4-5 incorporates advanced features typically found in larger benchtop oscilloscopes, such as automatic measurements, real-time signal processing, and extensive triggering capabilities. The bundled software enhances functionality with user-friendly controls, waveform storage, and data export options. Its robust design and high input impedance make it suitable for a wide range of applications, from educational settings to complex industrial systems. The HS4-5 is an excellent choice for users seeking a reliable, cost-effective, and high-performance oscilloscope in a compact form factor.

    Handyscope HS4 Specifications

    Acquisition system
    Number of input channels 4 analog
    Ch1, CH2, CH3, CH4 BNC, female
    Type Single ended
    Resolution User selectable in software
    Native 12 bit
    Enhanced 14, 16 bit
    Accuracy 0.2 % of full scale ± 1 LSB
    Noise 150 µVrms (200 mV range, 12 bit, 50 MSa/s)
    450 µVrms (200 mV range, 16 bit, 195 kSa/s)
    Ranges (Full scale) ±200 mV
    ±400 mV
    ±800 mV    		 ±2 V
    ±4 V
    ±8 V    		 ±20 V
    ±40 V
    ±80 V
    Coupling AC/DC
    Impedance 1 MΩ / 30 pF
    Maximum input voltage (in all ranges) ±200 V (DC + AC peak < 10 kHz)
    Maximum input voltage with 1:10 probe(in all ranges) ±600 V (DC + AC peak < 10 kHz)
    Bandwidth (-3dB) DC to 50 MHz maximum
    AC coupling cut off frequency (-3dB) 1 Hz with 1x probe
    Maximum sampling rate HS4-50 HS4-25 HS4-10 HS4-5
    12 bit 50 MSa/s 25 MSa/s 10 MSa/s 5 MSa/s
    14 bit 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s
    16 bit 195.3 kSa/s 195.3 kSa/s 195.3 kSa/s 195.3 kSa/s
    Maximum streaming rate HS4-50 HS4-25 HS4-10 HS4-5
    12 bit 500 kSa/s 250 kSa/s 100 kSa/s 50 kSa/s
    14 bit 480.8 kSa/s 250 kSa/s 99.2 kSa/s 50 kSa/s
    16 bit 195.3 kSa/s 195.3 kSa/s 97.7 kSa/s 48.8 kSa/s
    Sampling clock source
    Internal Quartz
    Accuracy ±0.01 %
    Stability ±100 ppm over -40 °C to +85 °C
    Time base aging ±5 ppm/year
    External On extension connector
    Voltage 3.3 V TTL, 5 V TTL tolerant
    Frequency range 95 MHz to 105 MHz
    Memory 128 Kpts per channel
    Trigger Only available in scope/block mode, not in streaming mode
    System Digital, 2 levels
    Source CH1, CH2, CH3, CH4, OR, digital external
    Trigger modes Rising edge, Falling edge
    Inside window, Outside window
    Level adjustment 0 to 100 % of full scale
    Hysteresis adjustment 0 to 100 % of full scale
    Resolution 0.025 % (12 bits)
    Pre trigger 0 to 131071 samples, 1 sample resolution
    Post trigger 0 to 131071 samples, 1 sample resolution
    Trigger hold-off 0 to 1048576 Samples, 1 sample resolution
    Digital external trigger
    Input Extension connector
    Range 0 to 3.3 V (5 V max)
    Coupling DC

    Interface
    Interface USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)

    Power Requirements
    Power from USB port 500 mA max (2.5 W max)
    Power via external power input / extension connector 1500 mA max (7.5 W max)
    Minimum voltage 4.5 VDC
    Maximum voltage 12 VDC

    Physical
    Instrument height 25 mm (1 inch)
    Instrument length 170 mm (6.7 inch)
    Instrument width 140 mm (5.2 inch)
    Cord length 1.8 m (70 inch)
    Weight 480 g (17 ounce)

    I/O connectors
    Channel 1…4 BNC, female
    USB fixed cable with USB 2.0 and USB 1.1 type A
    Extension connector D-sub 25 pins female

    System Requirements
    PC I/O connection USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
    Operating System Windows 10 / 11, 64 bits, and Linux (via libtiepie-hw SDK)

    Operating Environment
    Ambient temperature 0 to 55 °C
    Relative humidity 10 to 90% non condensing

    Storage Environment
    Ambient temperature -20 to 70 °C
    Relative humidity 5 to 95% non condensing

    Certifications and Compliances
    CE mark compliance yes
    RoHS yes
    Handyprobe HP3
    , ,
    Handyprobe HP3
    Condition

    New
    Read more
    FTD10000, 7GHz Transient Digitizer
    , ,
    FTD10000, 7GHz Transient Digitizer
    Condition

    New
    Read more
    WiFiScope WS6 DIFF WiFi oscilloscope WS6-DIFF-200S
    , ,
    WiFiScope WS6 DIFF WiFi oscilloscope WS6-DIFF-200S
    Read more

    Accessories

    Package
    Instrument Handyscope HS4
    Oscilloscope probes 4 x Oscilloscope Probe 1:1-1:10 – HP-3250I
    Accessories external power cable for second USB port
    Software Windows 10 / 11, 64 bits, via website
    Drivers Windows 10 / 11, 64 bits, via website
    Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
    Manuals instrument manual and software user’s manuals
    color printed on paper and digital, via website
