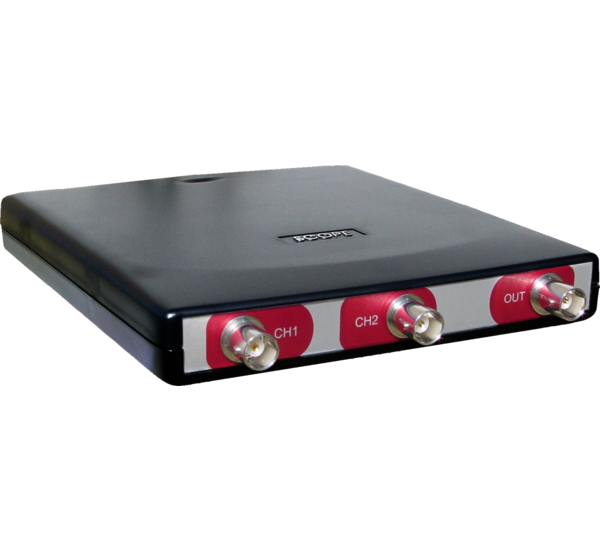

    Handyscope HS3-AWG-100

    • High Sampling Performance Offers a maximum sampling speed of 100 MSa/s with high vertical resolution, enabling accurate capture and analysis of fast analog and digital signals.
    • Integrated Arbitrary Waveform Generator (AWG) Allows creation and output of custom waveforms including sine, square, triangle, and user-defined signals, ideal for simulating inputs and testing circuit responses.
    • Portable and USB-Powered Lightweight and compact design powered entirely via USB, eliminating the need for external power supplies and making it ideal for fieldwork and mobile diagnostics.
    • Advanced PC Software Compatibility Works seamlessly with powerful oscilloscope software that provides advanced triggering, FFT analysis, measurements, and waveform storage capabilities.
    • Versatile Applications Ideal for R&D, service, education, and embedded system testing, offering reliable performance in both professional laboratories and mobile environments.
    Send Enquiry

    Send Inquiry

    Key Features

    • USB-powered oscilloscope and waveform generator
    • Max. sampling speed of 100 MSa/s
    • High-resolution signal acquisition
    • Built-in arbitrary waveform generator (AWG)
    • Compact and portable design
    • Compatible with PC-based analysis software
    • Ideal for lab, field, and educational use
    • Advanced triggering and signal processing capabilities

    The Handyscope HS3-AWG-100 is a compact, powerful USB oscilloscope combined with an arbitrary waveform generator, engineered for demanding electronic measurement and testing applications. With a maximum sampling speed of 100 mega samples per second (MSa/s), this instrument delivers high-resolution waveform capture, enabling detailed analysis of fast and complex signals across a variety of applications, including product development, troubleshooting, and educational demonstrations. Its portability and USB connectivity allow for easy integration with any PC or laptop, transforming it into a fully functional digital oscilloscope without the bulk of traditional benchtop units. The device includes advanced features such as real-time signal processing, deep memory buffering, precision triggering, and multichannel synchronization, making it suitable for analyzing everything from simple analog waveforms to intricate digital communication signals. In addition to its oscilloscope functionality, the built-in arbitrary waveform generator (AWG) provides the ability to create and output user-defined waveforms, sine waves, square waves, and more—ideal for simulating sensors, testing response behavior of circuits, or performing automated test sequences. Rugged and reliable, the Handyscope HS3-AWG-100 is well-suited for both field and lab environments, offering professional-grade performance in a portable and cost-effective package that doesn’t compromise on capability or accuracy.

    Handyscope HS3 Specifications

    Acquisition system
    Number of input channels 2 analog
    CH1, CH2 BNC, female
    Type Single ended
    Resolution User selectable in software
    Native 8, 12 bit
    Enhanced 14, 16 bit
    Accuracy 0.2 % of full scale ± 1 LSB
    Ranges (Full scale) ±200 mV
    ±400 mV
    ±800 mV    		 ±2 V
    ±4 V
    ±8 V    		 ±20 V
    ±40 V
    ±80 V
    Coupling AC/DC
    Impedance 1 MΩ / 30 pF
    Noise 210 µVrms (200 mV range, 12 bit, 50 MSa/s)
    50 µVrms (200 mV range, 16 bit, 195 kSa/s)
    Maximum input voltage (in all ranges) 200 V (DC + AC peak < 10 kHz)
    Maximum input voltage 1:10 probe (in all ranges) 600 V (DC + AC peak < 10 kHz)
    Bandwidth (-3dB) DC to 50 MHz maximum
    AC coupling cut off frequency (-3dB) 1.5 Hz
    Maximum sampling rate HS3-100 HS3-50 HS3-25 HS3-10 HS3-5
    8 bit 100 MSa/s 50 MSa/s 25 MSa/s 10 MSa/s 5 MSa/s
    12 bit 50 MSa/s 50 MSa/s 25 MSa/s 10 MSa/s 5 MSa/s
    14 bit 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s
    16 bit 195 kSa/s 195 kSa/s 195 kSa/s 195 kSa/s 195 kSa/s
    Maximum streaming rate 10 kSa/s
    Sampling clock source
    Internal Quartz
    Accuracy ±0.01 %
    Stability ±100 ppm over -40 °C to +85 °C
    Time base aging ±5 ppm/year
    External Extension connector
    Memory
    8 bit 256 Kpts channel
    12, 14, 16 bit 128 Kpts per channel
    Trigger Only available in scope/block mode, not in streaming mode
    System Digital, 2 levels
    Source CH1, CH2, OR, digital external
    Generator start, Generator new period, Generator stop
    Trigger modes Rising edge, Falling edge
    Inside window, Outside window
    Level adjustment 0 to 100 % of full scale
    Hysteresis adjustment 0 to 100 % of full scale
    Resolution 0.025 % (12 bits)
    Pre trigger 0 to 128 KSamples, 1 sample resolution
    Post trigger 0 to 128 KSamples, 1 sample resolution
    Digital external trigger
    Input Extension connector
    Range 0 to 3.3 V (5 V max)
    Coupling DC

    Arbitrary Waveform Generator (independent from acquisition system)
    Waveforms Sine, triangle, square, DC, noise and arbitrary
    Number of output channels 1 analog, female BNC
    DAC resolution 14 bit @ 50 MSa/s
    Output range -12 V to 12 V
    Amplitude
    Range 0.12 V 1.2 V 12 V
    Resolution 13 bit
    Accuracy 0.4 %
    DC offset
    Range -12 V to 12 V
    Resolution 13 bit
    Coupling DC
    Impedance 50 Ω
    Bandwidth DC to 2 MHz
    Noise level 0.12 V range
    900 µV RMS    		 1.2 V range
    1.3 mV RMS    		 12 V range
    1.5 mV RMS
    Sweep –
    System characteristics
    System DDS
    Memory 256 KiSamples
    Maximum Sampling rate 50 MHz
    Sampling source internal
    Accuracy ±0.01 %
    Stability ±100 ppm over -40 °C to +85 °C

    Interface
    Interface USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)

    Power Requirements
    Power from USB port 500 mA max (2.5 W max)
    Power via external power input / extension connector 1500 mA max (7.5 W max)
    Minimum voltage 4.5 VDC
    Maximum voltage (SN# <12941) 6 VDC
    Maximum voltage (SN# >12941) 12 VDC

    Physical
    Instrument height 25 mm (1 inch)
    Instrument length 170 mm (6.7 inch)
    Instrument width 140 mm (5.2 inch)
    Cord length 1.8 m (70 inch)
    Weight 480 g (17 ounce)

    I/O connectors
    Channel 1, 2 BNC, female
    Generator BNC, female
    USB fixed cable with USB 2.0 and USB 1.1 type A connector
    Extension connector D-sub 25 pins female

    System requirements
    PC I/O connection USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
    Operating System Windows 10 / 11, 64 bits
    Linux

    Operating environment
    Ambient temperature 0 to 55°C
    Relative humidity 10 to 90%, non condensing

    Storage environment
    Ambient temperature -20 to 70°C
    Relative humidity 5 to 95%, non condensing

    Certifications and Compliances
    CE mark compliance yes
    RoHS yes
    Handyscope HS5
    , ,
    Handyscope HS5
    Condition

    New
    Read more
    WiFiScope WS5 WiFi oscilloscope WS5-540
    , ,
    WiFiScope WS5 WiFi oscilloscope WS5-540
    Read more
    WiFi Oscilloscopes Series WiFiScope WS4-DIFF-50
    , ,
    WiFi Oscilloscopes Series WiFiScope WS4-DIFF-50
    Read more

    Accessories

    Package
    Instrument Handyscope HS3
    Oscilloscope probes 2 x Oscilloscope Probe 1:1-1:10 – HP-3250I
    Accessories external power cable for second USB port
    Software for Windows 10 / 11, 64 bits
    Drivers for Windows 10 / 11, 64 bits
    Software Development Kit for Windows 10 / 11, 64 bits, and Linux,
    Manuals instrument manual and software user’s manuals
    color printed and digital

    Options
    Optionally available 10 MHz generator output
