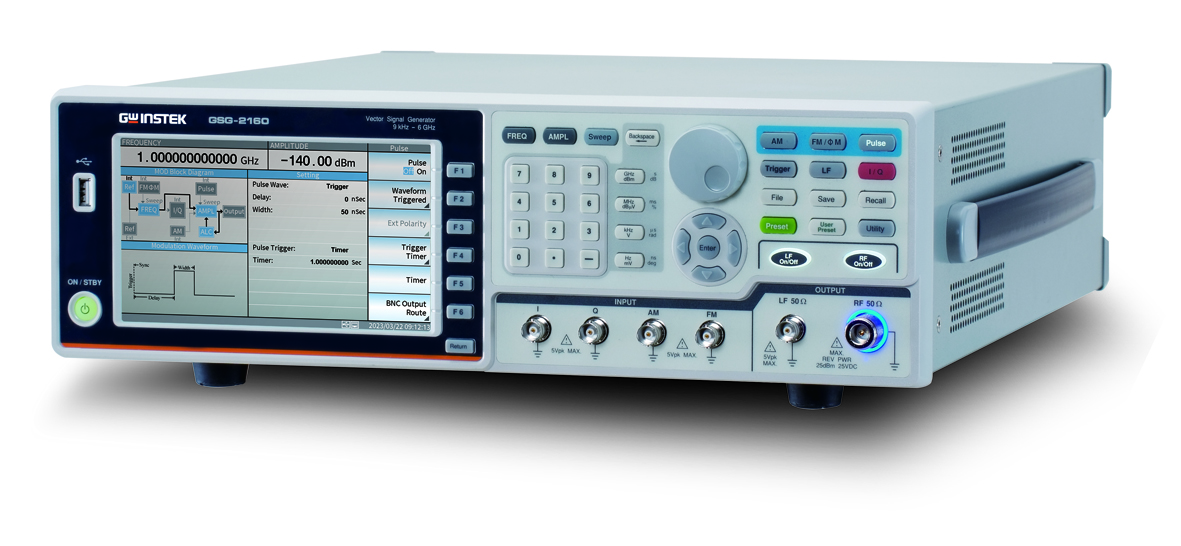

Series RF Signal Generator GSG-2160 (GPIB) (CE)

Frequency range: 9 kHz ~ 6 GHz

Frequency resolution: 1 mHz

Standard 10 ppm frequency stability, 2 ppm aging rate

Optional AUX (OCXO): 10 ppb frequency stability, 0.1 ppm aging rate

Amplitude range: -140 dBm to +20 dBm

0.01 dBm amplitude setting resolution

Amplitude setting unit: dBm, dBµV, Vrms

Phase noise: <-117 dBc/Hz (real) @1 GHz output and 20 kHz offset

The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s

Frequency/amplitude switching speed: ≤ 5 ms

Built-in LF/RF signal output, Pulse signal output

The series has built-in AM, FM, PM analog signal modulation functions

Supports IQ modulation signal output (GSG-2160 only)

Up to 60 MHz baseband I or Q modulation signal output

Up to 120 MHz RF I+Q modulation signal output

Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions

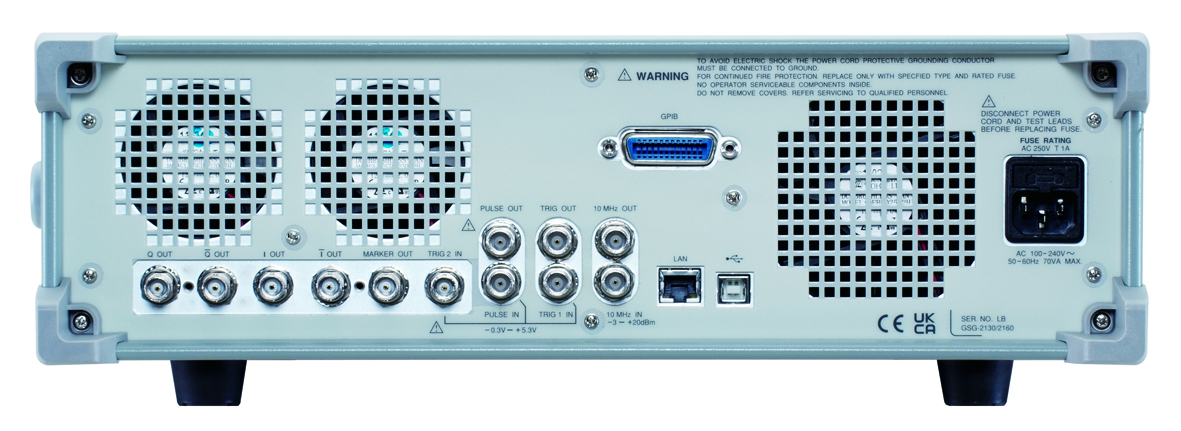

Provides USB, LAN and GPIB (option), commands comply with SCPI standards

The GSG-2000 series is a basic RF vector signal/ signal generator that covers a frequency range from 9 kHz to 6 GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages.

Compared to its main competitors, the GSG-2000 series offers superior specifications including a wide amplitude output range of +20 dBm to -140 dBm, lower phase noise of -117 dBc/Hz, and high frequency accuracy with 10 ppm frequency stability and 2 ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1 ppm aging rate.

For the signal modulation, the entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60 MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK modulation signals.

Furthermore, the GSG-2000 series also provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.

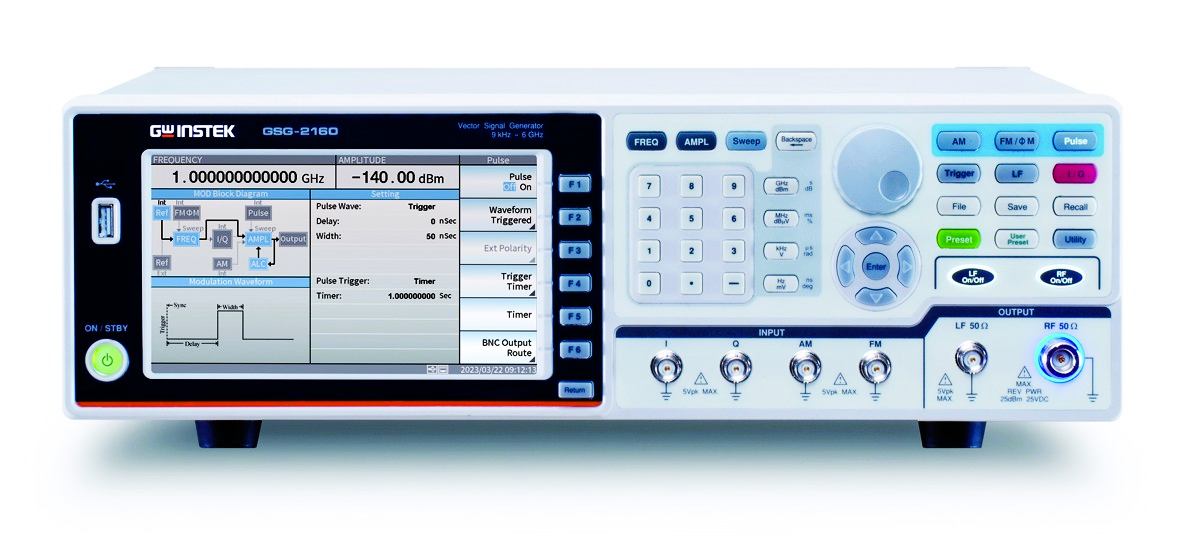

GSG-2000 adopts a seven-inch TFT LCD display that can fully display the parameters and status set by the user, and the series also provides USB, LAN, GPIB (option) communications interfaces, and provides standard SCPI-compatible commands to support remote control . GSG-2000 is designed for 3U high standard rack size.

Frequency Specifications

Frequency Range: 9 kHz to 6 GHz
Frequency Resolution: 1 mHz
Frequency Bands:
- Band 1: 9 kHz to 5 MHz, Digital Synthesis
- Band 1: <5 MHz to 187.5 MHz, 1
- Band 2: <187.5 MHz to 375 MHz, 0.25
- Band 3: <375 MHz to 750 MHz, 0.5
- Band 4: <750 MHz to 1500 MHz, 1
- Band 5: <1500 MHz to 3000 MHz, 2
- Band 6: <3000 MHz to 6000 MHz, 4
Frequency Switching: < 5 ms
Phase Noise @ 20 kHz Offset:
- Range 5 MHz: ALC Off: -122 dBc
- Range 100 MHz: ALC On: -112 dBc, ALC Off: -115 dBc
- Range 250 MHz: ALC On: -112 dBc, ALC Off: -117 dBc
- Range 1000 MHz: ALC On: -112 dBc, ALC Off: -117 dBc
- Range 2000 MHz: ALC On: -108 dBc, ALC Off: -112 dBc
- Range 3000 MHz: ALC On: -107 dBc, ALC Off: -110 dBc
- Range 6000 MHz: ALC On: -102 dBc, ALC Off: -105 dBc
Residual FM (0.3 kHz to 3 kHz) (1 GHz CW): < 2 Hz
Non-Harmonics (Level > -10 dBm, Offset > 10 kHz):
- 1MHz≤freq<5MHz: < -65 dBc
- 5MHz≤freq<187.5MHz: < -72 dBc
- 187.5MHz≤freq<750MHz: < -75 dBc
- 750MHz≤freq<1500MHz: < -72 dBc
- 1500MHz≤freq<3000MHz: < -66 dBc
- 3000MHz≤freq<6000MHz: < -58 dBc
Harmonics (9 kHz ≤ Frequency < 6000 MHz, Level < 4 dBm): < -35 dBc
Jitter:
- Carrier Frequency 1 GHz, SONET/SDH data rate 1000 MB/s, rms jitter BW 1 Hz to 10 MHz, Seconds typical 229 fs
- Carrier Frequency 155 MHz, SONET/SDH data rate 155 MB/s, rms jitter BW 100 Hz to 1 MHz, Seconds typical 1.38 ps
- Carrier Frequency 622 MHz, SONET/SDH data rate 622 MB/s, rms jitter BW 1 kHz to 3 MHz, Seconds typical 0.17 ps
- Carrier Frequency 2.488 GHz, SONET/SDH data rate 2488 MB/s, rms jitter BW 5 kHz to 10 MHz, Seconds typical 0.12 ps
Frequency Reference: 10 MHz
Temperature Stability: < 10 ppm (Standard), < 5 ppb (OCXO Option)
Aging: 2 ppm/year (Standard), 0.1 ppm/year (OCXO Option)
Output: 1 Vpp, 50 Ohm Load
Input: -3 dBm to 20 dBm, 50 Ohm Load
Input Deviation: 3 ppm for GSG-2160, 0.5 ppm for GSG-2060

Amplitude Specifications

Setting Range: -20 dBm to -140 dBm
Resolution: 0.01 dB
Amplitude Unit: dBm, dBuV, Vrms
Amplitude Accuracy (CW Mode, ALC On):
- 9 kHz < freq < 3 GHz, 14 dBm to -60 dBm: ± 0.6 dB
- 9 kHz < freq < 3 GHz, -60 dBm to -90 dBm: ± 0.8 dB (0.6 dB typical)
- 9 kHz < freq < 3 GHz, -90 dBm to -110 dBm: ± 1 dB (0.7 dB typical)
- 3 GHz < freq < 6 GHz, 14 dBm to -60 dBm: ± 0.8 dB
- 3 GHz < freq < 6 GHz, -60 dBm to -90 dBm: ± 1 dB (0.6 dB typical)
- 3 GHz < freq < 6 GHz, -90 dBm to -110 dBm: ± 1.2 dB (0.7 dB typical)
Additional Level Error: < 0.15 dB, at ALC Off, Power search run
VSWR (5 MHz to 3 GHz): < 1.8 (output -40 dBm)
Amplitude Switching (ALC on, CW): < 5 ms

Sweep Specifications

Mode: frequency, amplitude, list
Dwell Time: 100 us to 100 s
Number of Points (step): 2 to 65535
Number of Points (list): 1 to 4096
Triggering: free, trigger key, external, timer

Analog Modulation Specifications

FM:
- Source: internal, external
- Max. Deviation: N x 1 MHz (freq > 10 MHz), 0.1 Hz to 1 MHz (freq < 10 MHz)
- Rate: 0.1 Hz to 1 MHz (freq > 10 MHz), 0.1 Hz to 100 kHz (freq < 10 MHz)
- Resolution: 1 mHz
- Accuracy (1 kHz rate): 2% setting + 20 Hz
- Distortion (1 kHz rate, N x 50 kHz deviation): 0.4%
PM:
- Source: internal, external
- Max. Deviation: N x 1 MHz/rate or N rad (freq > 10 MHz)
- Rate: 0.1 Hz to 1 MHz (freq > 10 MHz), 0.1 Hz to 100 kHz (freq < 10 MHz)
- Resolution: 1 mHz
- Accuracy (1 kHz rate): 2% setting + 0.2 Deg
- Distortion (1 kHz, N x 0.5 rad): 0.4%
AM:
- Source: internal, external
- Depth: 0 to 100%
- Modulating Frequency: 0.1 Hz to 100 kHz
- Resolution: 0.1%
- Accuracy (50% depth, 1 kHz): 1%
Pulse Modulation:
- Source: internal, external
- On/Off Ratio: 80 dB
- Rise/Fall Time: < 10 ns
- Minimum Pulse Width: 20 ns
- Period: 1 us to 100 s
- Duty Cycle: 0.1% to 99.9%
- Delay: 0 ns to 100 s
- Width: 10 ns to 100 s
- Pulse Repetition Rate: 0.1 Hz to 1 MHz
IQ Modulation:
- Standard: GSM, IS-95 CDMA, WCDMA, cdma2000, EDGE, NADC, PDC
- Symbol Rate: 1 kS/s to 3 MS/s
- Filter: Rectangular, Raised Cosine, Gaussian, Half-sine
- Filter Alpha/BT: 0 to 1
- Modulation Type: QPSK, OQPSK, pi/4-DQPSK, 8PSK, 16QAM
- I/Q Offset: ± 10% of full scale
- I/Q Gain Imbalance: ± 6 dB
- I/Q Skew: max ± (30 ps – 100ps)
External IQ Output:
- Impedance: 50 Ohm per output
- Maximum per Output: 0.5 Vpk
- Bandwidth: 60 MHz
- Common Mode Offset: ± 1.25 V
- Differential Mode Offset: ± 50 mV
External IQ Input:
- Bandwidth: 60 MHz
- Full Scale: ± 1V into 50 Ohm
- IQ Offset: ± 10% full scale
- IQ Gain: ± 6dB
Simultaneous Modulation: All modulation types (I/Q, FM, AM, PM, and pulse modulation) may be simultaneously enabled except: FM and phase modulation.

General Specifications

Power Source: AC 100 V to 240 V, 50 Hz/60 Hz
Power Consumption: 100 VA
Operating Temperature: 0 °C to 40 °C
Relative Humidity: ≤ 80%
Storage Temperature: -10 °C to 70 °C
Dimensions (W x H x D): 266 mm x 107 mm x 293 mm
Weight: 4.1 kg

Standard Accessories

Power cord
Factory certificate
Safety information (GSG-2000 no longer provides paper manuals, please download all files from the website)

Optional Accessories

GRA-447: Rack for GSG-2000
