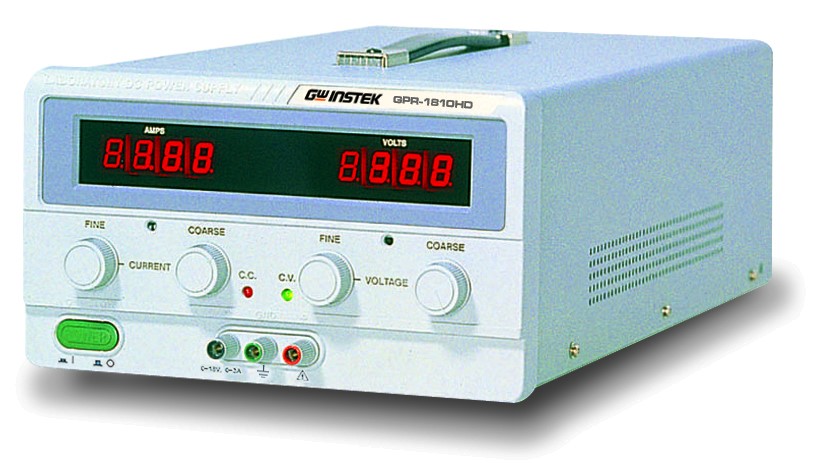

GPR-M Series Linear D.C. Power Supply

GPR-M Series Linear D.C. Power Supply

  • Precise DC Output Provides stable, low-noise linear DC power for reliable testing and development of sensitive electronics.
  • Adjustable Settings Allows for fine-tuning of voltage and current to meet specific application requirements with precision.
  • Digital Display Clear, easy-to-read digital readouts offer accurate monitoring of voltage and current in real-time.
  • Safety Features Equipped with overload and short-circuit protection to ensure safe operation and prevent damage to equipment.
  • Compact Design A durable, space-saving unit that is ideal for laboratory, industrial, and educational settings, offering both functionality and ease of use.
Send Enquiry

Key Features

  • Stable and low-noise linear DC output
  • Adjustable voltage and current control
  • Clear digital display for accurate readings
  • Overload and short-circuit protection
  • Compact and durable design
  • Ideal for lab, industrial, and educational use

The GPR-M Series Linear D.C. Power Supply is engineered to meet the rigorous demands of a variety of professional and educational environments. Its linear regulation design ensures a highly stable and ultra-low noise DC output, which is crucial for applications that require precise and clean power, such as testing and developing sensitive electronic components. The unit is equipped with a single output channel, offering adjustable voltage and current settings, which gives users full control over power parameters. The digital display provides real-time feedback on both voltage and current, ensuring users can easily monitor and adjust the power supply to meet specific requirements. In addition, the GPR-M Series features comprehensive protection systems, including overload and short-circuit safeguards, ensuring the safety of both the device and the connected equipment. Its compact and rugged construction ensures durability and easy integration into workspaces, while the intuitive front-panel controls facilitate user-friendly operation. This power supply is ideal for use in laboratories, industrial applications, research and development, and educational settings, providing dependable and precise power for a wide range of electronic testing and development projects.

GPR-M Specifications

The specifications apply when the GPR-M is powered on for at least 30 minutes under +20°C~+30°C.



DC OUTPUT
Output Volts (V) Output Amps (A)
GPR-1810HD 0 ~ 18 0 ~ 10
GPR-3060D 0 ~ 30 0 ~ 6
GPR-6030D 0 ~ 60 0 ~ 3
CONSTANT VOLTAGE OPERATION
Regulation Line regulation < 0.01% + 3mV

Load regulation <0.01% + 5mV (<10A) Load regulation < 0.02% + 5mV (>10A)

Ripple & Noise < 1mVrms (5Hz ~ 1MHz)
Recovery Time < 100ÎĽS ( 50% load change, minimum load 0.5A )
Output range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation Line regulation < 0.2% + 3mA

Load regulation <0.2% + 3mA

Ripple Current < 3mArms
Output Range 0 to rating current continuously adjustable
METER
Type 3 1/2 Digits 0.5″ LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
User manual x 1 Power cord x 1

Test Lead GTL-104 x 1

DIMENSIONS & WEIGHT
255(W) x 145(H) x 335(D)mm

Approx. 11.5kg



Accessories

User Manual X 1, Power Cord X 1
Test lead GTL-105A x 1 ( GPR-6030D )
GTL-104A x 1 ( GPR-1810HD/3060D )
