- 200/100/70MHz bandwidth selections, 2ch input
- 100/70/50MHz bandwidth selections, 4ch input
- 1GSa/s maximum sampling rate
- 10M maximum memory depth for each channel
- 7” 800 x 480 WVGA LCD display
- 256 color gradient display function to strengthen waveform performance
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- 1Mpts FFT frequency domain signal display
- Zero Key function for horizontal time, vertical voltage and triggering
- Compact and innovative exterior design
Series Digital Storage Oscilloscopes GDS-1202B

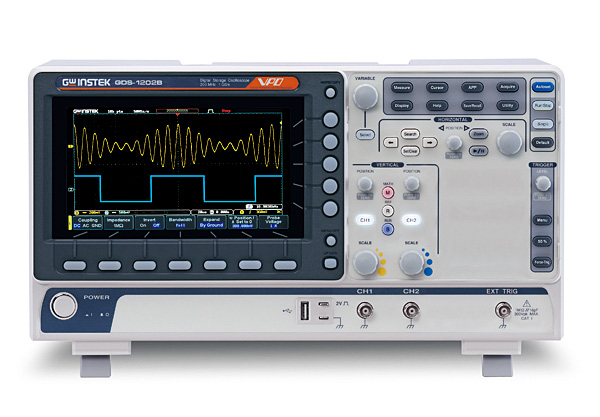

- The GDS-1202B is a high-performance 200 MHz digital storage oscilloscope, designed for engineers and technicians who require accurate signal analysis in high-speed electronic applications, embedded systems, and circuit diagnostics.
- Featuring 2 analog channels and a 1 GSa/s real-time sampling rate, it captures fast and complex waveforms with precision, making it ideal for analyzing transient events, timing issues, and signal integrity.
- Advanced trigger modes, including edge, pulse width, runt, video, and delay, enable users to isolate specific signal conditions and events for thorough analysis and troubleshooting.
- Built-in math functions and FFT capabilities provide powerful waveform processing in both time and frequency domains, supporting complex signal characterization and measurement.
- Equipped with a 7-inch color TFT display, USB host/device ports, and user-friendly controls, the GDS-1202B offers clear waveform visualization, easy data export, and seamless integration into lab or educational test setups.

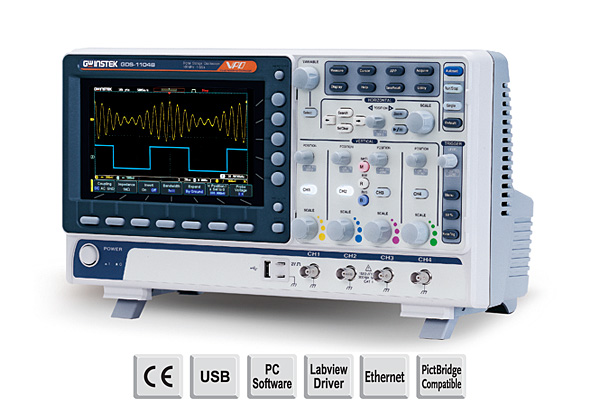

The GDS-1000B Series features four bandwidth selections – 200MHz, 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels. The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The GDS-1000B Series has a waveform update rate of 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation.
With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design -the zero key function, which allows engineers to work more effectively. For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate.
Moreover, the innovative exterior design and compact design also bring much convenience to users.
Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration.
General Models
- GDS-1102B
- Channels: 2 + EXT
- Bandwidth: DC to 100 MHz (−3 dB)
- Rise Time: 3.5 ns
- Bandwidth Limit: 20 MHz
- GDS-1104B
- Channels: 4
- Bandwidth: DC to 100 MHz (−3 dB)
- Rise Time: 3.5 ns
- Bandwidth Limit: 20 MHz
- GDS-1202B
- Channels: 2 + EXT
- Bandwidth: DC to 200 MHz (−3 dB)
- Rise Time: 1.75 ns
- Bandwidth Limit: 20 MHz
Vertical System
- Vertical Resolution: 8-bit
- Vertical Sensitivity: 1 mV/div to 10 V/div
- Input Coupling: AC, DC, GND
- Input Impedance: 1 MΩ // 16 pF (approx.)
- DC Gain Accuracy: ±3%
- Input Polarity: Normal / Invert
- Maximum Input Voltage:
- 300 Vrms (CAT I)
- 300 Vrms (CAT II with GTP-070B-4 / 100B-4 10:1 probe)
- Offset Position Range:
- ±1.25 V @ 1 mV/div
- ±2.5 V @ 2 mV/div to 100 mV/div
- ±125 V @ 200 mV/div to 10 V/div
Waveform Signal Processing
- Math Functions: Addition, Subtraction, Multiplication, Division, FFT, FFTrms, and User-Defined Expressions
- FFT Configuration:
- Vertical Scale: Linear RMS or dBV RMS
- Window Options: Rectangular, Hamming, Hanning, Blackman-Harris
Trigger System
- Trigger Sources: CH1, CH2, CH3*, CH4*, EXT**, Line (*4-channel models only; **2-channel models only)
- Trigger Modes: Auto (includes Roll mode for ≥100 ms/div), Normal, Single Sequence
- Trigger Types:
- Edge, Pulse Width, Video, Pulse Runt, Rise & Fall
- Timeout, Alternate, Event Delay (1 to 65,535 events), Time Delay (4 ns to 10 s)
- Holdoff Range: 4 ns to 10 s
- Trigger Coupling: AC, DC, Low-Frequency Reject, High-Frequency Reject, Noise Reject
- Trigger Sensitivity: 1 division
External Trigger (2-Channel Models Only)
- Input Range: ±2.5 V
- Sensitivity:
- DC to 100 MHz: ~100 mV
- 100 MHz to 200 MHz: ~150 mV
- Input Impedance: 1 MΩ ±3% // 16 pF (approx.)
Horizontal System
- Time Base Range: 5 ns/div to 100 s/div (1-2-5 increments)
- ROLL Mode: 100 ms/div to 100 s/div
- Pre-Trigger: Up to 10 divisions
- Post-Trigger: Up to 2,000,000 divisions
- Time Base Accuracy: ±50 ppm (≥1 ms interval)
Acquisition System
- Real-Time Sample Rate: Max. 1 GSa/s
- Record Length: Max. 10 Mpts
- Acquisition Modes: Normal, Average, Peak Detect, Single
- Peak Detection: 2 ns (typical)
- Averaging: Selectable from 2 to 256 samples
X-Y Mode
- X-Axis Input: Channel 1 (Channel 3 for 4-channel models)
- Y-Axis Input: Channel 2 (Channel 4 for 4-channel models)
- Phase Shift: ±3° at 100 kHz
Cursors and Automatic Measurements
- Cursor Types: Amplitude, Time, Gating
- Cursor Units: Seconds (s), Frequency (Hz), Phase (°), Ratio (%)
- Cursor Measurements: ΔV (voltage difference), ΔT (time difference)
Automatic Measurements (36 Types):
- Basic: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS
- Area: Area, Cycle Area
- Overshoot: ROVShoot, FOVShoot, RPREShoot, FPREShoot
- Timing: Frequency, Period, Rise Time, Fall Time, +Width, −Width, Duty Cycle
- Counting: +Pulses, −Pulses, +Edges, −Edges
- Jitter Analysis: FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
- Phase Measurement
- Auto Counter: 6 digits (2 Hz to rated bandwidth)
Control Panel Features
- Autoset Function: Single-button auto setup with undo (configures vertical, horizontal, and trigger settings)
- Save Setup Memory: Up to 20 sets
- Save Waveform Memory: Up to 24 sets
Display
- Display Type: 7-inch TFT LCD (WVGA)
- Resolution: 800 × 480 pixels
- Interpolation: Sin(x)/x
- Display Options: Dots, Vectors, Variable Persistence (16 ms – 4 s), Infinite Persistence
- Update Rate: Max. 50,000 waveforms per second
- Graticule: 8 × 10 divisions
- Display Modes: YT, XY
Interface and Connectivity
- USB Ports:
- USB 2.0 Host ×1
- USB 2.0 Device ×1
- Ethernet (LAN):
- RJ-45 (10/100 Mbps with HP Auto-MDIX)
- Available only on models GDS-1054B, GDS-1074B, GDS-1104B
- Go-NoGo Output: BNC, 5 V Max / 10 mA TTL open collector
- Security: Kensington-style lock slot
Miscellaneous
- Multi-language Menu: Available
- Online Help: Available
- Dimensions: 380 mm × 208 mm × 127.3 mm
- Weight: 2.8 kg
Operating Environment
- Temperature: 0°C to 50°C
- Relative Humidity:
- ≤80% (at ≤40°C)
- ≤45% (from 41°C to 50°C)
Accessory
- User manual CD x 1 ,power cord x1
- GTP-200B-4
200MHz Passive Probe. Suitable for GDS-1202B - GTP-100B-4
100MHz Passive Probe. Suitable for GDS-1104B, GDS-1102B
Optional Accessories
- GDB-03
Demo Board - GTL-110
Test lead, BNC to BNC heads - GTL-246
USB cable, USB2.0 A-B type cable 4P, 1200mm - GRA-426
Rack Adapter Panel - GSC-008
Soft carrying case
