Features
Frequency
| 100kHz | 1MHz | 3MHz | 5MHz | 10MHz | 20MHz | 30MHz | 50MHz |
Application
| Electrolytic solution |
 |
| Electrochemical analysis |
 |
Case study
|

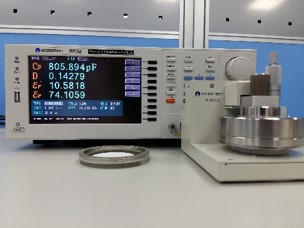

Pure water |
Dielectric Constant εr @1MHz: 74.1059 (typical) |

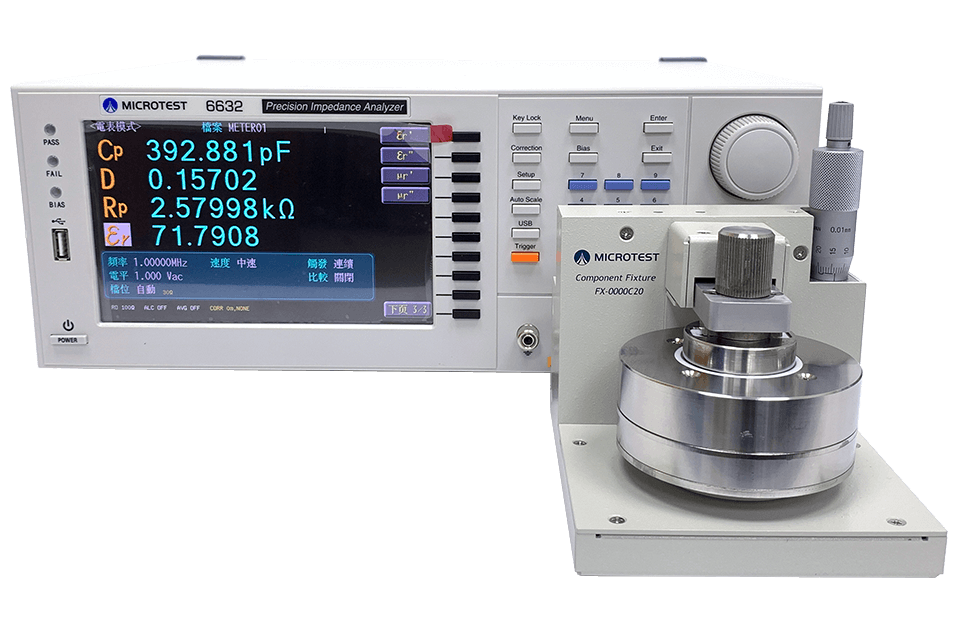

FX-000C20 Liquid Dielectric Material Test Fixture
- Connector Type 4-terminal pair, BNC for reliable connections.
- Dimensions Compact design with approximate measurements of 115×129.5x159mm (W/H/D).
- Weight Lightweight at 1650g, easy to handle and transport.
- Compatibility Compatible with models 6632 and 6630 for versatile usage.
- Specifications Supports frequencies up to 30 MHz, with a maximum voltage of ±42 V peak (AC+DC). The gap between electrodes can be adjusted to 0.3, 0.5, 1, 2, 3, or 5 mm, with a 38 mm diameter for the electrodes. Operating temperature range: 0°C to 55°C.
Product Details
The FX-000C20 Liquid Dielectric Material Test Fixture is a high-precision test fixture designed for measuring the dielectric properties of liquid materials. With a frequency range of up to 30 MHz, this fixture is perfect for testing liquid dielectric constants, impedance, and other electrical properties. It features a 4-terminal pair BNC connection for accurate and stable measurements, and it is compatible with MICROTEST 6632 and 6630 models. The fixture includes electrodes with adjustable gaps, offering flexibility in testing various liquid materials.
The MFX-000C20 Liquid Dielectric Material Test Fixture is an essential tool for professionals and researchers looking for high-precision liquid dielectric material characterization with reliable, accurate results.
Accessories
Selection
| 6630 |
 |
| 6632 |
 |
