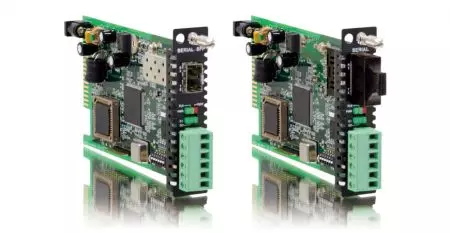

RS232/485 Over Fiber Card FRM220-Serial

RS232/485 Over Fiber Card FRM220-Serial

  • Dual Protocol Support Converts both RS-232 and RS-485 signals to fiber optic for seamless communication.
  • Long-Distance Transmission Extends data transmission over fiber up to 20 km (single-mode) or 2 km (multimode).
  • High-Speed Communication Supports data rates up to 115.2 Kbps for fast and efficient data transfer.
  • Noise-Resistant Fiber optic transmission eliminates electromagnetic interference, ensuring stable communication in harsh environments.
  • Easy Integration Compact design easily integrates into existing networks for remote monitoring, industrial automation, and telecom applications.
Send Enquiry

  • Supports RS-232 and RS-485 standards
  • Extends data up to 20 km (single-mode fiber)
  • Noise-resistant for long-distance transmission
  • Data rates up to 115.2 Kbps
  • Compatible with multimode and single-mode fiber
  • Compact and easy to integrate
  • Ideal for industrial, networking, and telecom use

The FRM220-Serial RS-232/485 Fiber Converter Card is a high-performance solution designed to extend serial communication over long distances using fiber optic technology. This compact, reliable card supports both RS-232 and RS-485 standards, enabling seamless and robust data transmission in industrial, networking, and telecommunication applications. By converting serial signals to optical signals, the FRM220 provides excellent noise immunity and eliminates the signal degradation typically associated with long-distance copper wiring. It supports data rates of up to 115.2 Kbps, ensuring efficient communication over distances of up to 20 kilometers (12.4 miles) via single-mode fiber or up to 2 kilometers (1.24 miles) via multimode fiber. The card is designed for easy integration with existing serial-based devices, offering a cost-effective solution for extending serial communication in harsh environments or across vast infrastructure networks. The FRM220-Serial is ideal for applications such as remote monitoring, automation, and control systems, where reliable, long-distance data transmission is crucial.

Specifications

Optical

Connector          FRM220-Serial: Fixed SC, ST, FC

Electrical

Connector        6 pins Terminal block



Interface

                          FRM220-Serial-SFP: SFP LC

Data rate            36.864Mbps

Interface

Data Signal Formats

 RS-485 2-wire

 RS-232 RTS/CTS 5-wire

 Line coding        Scrambled NRZ

 Bit Error Rate  Less than 10-10                               Fiber     MM 62.2/125μm, 50/125μm

                          SM 9/125μm                                    Distance MM 2km, SM 15/30/50km

                          WDM 20/40km

Power Consumption

                          RS-232 3-wire                                  Baud Rate         RS-422, RS-485 up to 1024kbps

                          RS-232 up to 256kbps                      Bit Error Rate   Less than 10-10

< 6W



Wavelength      MM 1310nm, SM 1310, 1550nm

 WDM 1310Tx/1550Rx (type A)

                                                            1550Tx/1310Rx (type B)

Standards         EIA/TIA RS-485, RS-232

LEDs                  Power, FX Link, DI, DO, Test

 Power Input      12VDC



Application

Dimensions    159.5 × 20.8 × 88mm (D×W×H)

Weight            130g

Temperature  0 ~ 50°C (Operating), -10 ~ 70°C (Storage)

Humidity         10 ~ 90% non-condensing

Certification      CE, FCC

MTBF                 65,000 hrs

Ordering Information

ModelName Description
FRM220-Serial RS-232/485 fiber converter card
ConnectorType ConnectivityDistance
SC,ST,FC 002: 2km 015: 15km 030: 30km 050: 50km
(Not Applicable for SFP Type) 20A: WDM 20km A type 20B: WDM 20km B type     40A: WDM 40km A type     40B: WDM 40km B type
