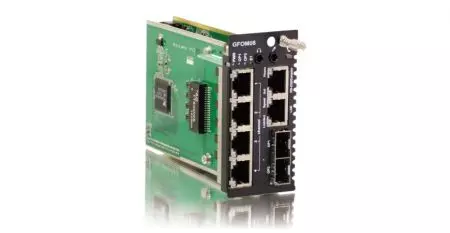

GbE Fiber Multiplexer with In-Band Management FRM220-GFOM08-SB

GbE Fiber Multiplexer with In-Band Management FRM220-GFOM08-SB

  • 8x E1 BNC Ports Supports up to 8 E1 channels for reliable voice and data transmission.
  • 1000Mbps Ethernet Delivers high-speed Ethernet over fiber optic links for fast data transfer.
  • In-Band Management Enables remote monitoring and easy configuration for efficient network management.
  • 4x2E1 BNC Cable Provides flexible and reliable connectivity for diverse network applications.
  • Ideal for Telecom & Enterprise Perfect for long-distance, high-capacity fiber optic solutions in telecom and enterprise networks.

Send Enquiry

  • 8x E1 BNC ports for reliable voice and data transmission
  • 1000Mbps Ethernet for high-speed data transfer
  • In-band management for remote monitoring and configuration
  • 4x2E1 BNC cable for flexible connectivity
  • Supports Gigabit Ethernet (GbE) for efficient bandwidth management
  • Ideal for telecom and enterprise networks
  • Fiber-optic transmission for long-distance connectivity
  • Compact and cost-effective solution for network optimization

The FRM220-GFOM08-SB GbE Fiber Multiplexer is a high-performance, cost-effective solution designed to multiplex multiple E1 and Ethernet signals over a single fiber optic link. This versatile 8x E1 BNC and 1000Mbps Ethernet fiber mux card supports up to 8 E1 channels through BNC connections, providing reliable and high-speed transmission for voice and data services. With the added benefit of in-band management, the device allows for remote monitoring and configuration, ensuring seamless operation and reduced downtime. The 4x2E1 BNC cable facilitates easy connection and flexibility for various applications, including enterprise networking, telecom infrastructure, and remote site interconnectivity. Supporting full Gigabit Ethernet (GbE) capacity, the FRM220-GFOM08-SB ensures efficient bandwidth management, making it an ideal choice for carriers and businesses looking to maximize their fiber network potential while simplifying their infrastructure.

Specifications

E1/T1 ports Framing Unframed (transparent)
Bit Rate E1:2.048 Mb/s , T1: 1.544Mb/s
Line Code E1:AMI/HDB3, T1: AMI/B8ZS
Line Impedance E1: Unbalanced 75 ohms (BNC)
E1: Balanced 120 ohms (RJ-45)
T1: Balanced 100 ohms (RJ-45)
Receiver sensitivity Short haul
“Pulse” Amplitude Nominal 2.37V+/-10% for 75 ohms
Nominal 3.00V+/-10% for 120 ohms
“Zero” Amplitude +/-0.3V
Internal Timing +/-30 ppm
Jitter Performance According to ITU-T G.823
Performance monitoring According to ITU-T G.821
Standards ITU-T G.703, G.704, G.706 and G.732
Interface Connectors RJ-45
Test Loops LLB (Local Loop Back)
NELB (Near End Loop Back)
RLB (Remote Loop Back)
RRLB (Request Remote Loop Back)
Fiber Connector SFP LC
Data Rate 1.25 Gbps
Ethernet Interface Type 10/100/1000Base-T
Connector RJ-45
Standards IEEE 802.3, 802.3u, 802.3ab
Duplex modes full/half
Indications FX1 Link, FX2 link, E1/T1 Mode/Link/Loopback test, Order wire phone indicator, LAN Link/Speed
Power Input 12VDC
Power Consumption < 12W
Dimensions 159.5 × 42.1 × 88mm (D×W×H)
Weight 200g
Temperature 0 ~ 50°C (Operating), -10 ~ 70°C (Storage)
Humidity 10 ~ 90% RH (non-condensing)
Certifications CE, FCC
MTBF 65,000hrs

Ordering Information

Model Name Description
FRM220-GFOM08-SB 8x E1 BNC and 1000Mbps Ethernet fiber mux card with 4x2E1 BNC cable (optional SFP module, Model : SFS-70xx-xx)
Application

Managed 4E1/T1 + Gigabit Ethernet Fiber Optical Multiplexer Application
Managed 4E1/T1 + Gigabit Ethernet Fiber Optical Multiplexer Application
