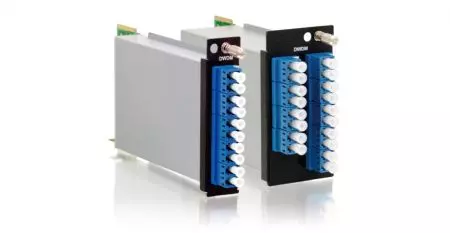

CWDM & DWDM FRM220-CWMD81B-2961

CWDM & DWDM FRM220-CWMD81B-2961

  • Wavelength Support 8 channels with TX (1291-1611 nm) and RX (1271-1591 nm) for high-capacity data transmission.
  • Connector Type Equipped with LC/UPC connectors for reliable optical connections.
  • Monitor Port Integrated port for real-time monitoring and diagnostics of performance.
  • Compatibility Suitable for both CWDM and DWDM systems, offering versatile deployment options.
  • Efficient Performance  Low insertion loss and high stability, ideal for long-haul and metro networks with easy installation and maintenance due to its hot-swappable design.
Send Enquiry

  • 8 Channels TX (1291-1611 nm) and RX (1271-1591 nm)
  • Connector LC/UPC
  • Monitor Port For real-time performance monitoring
  • Compatibility CWDM & DWDM systems
  • Low Insertion Loss Efficient transmission
  • Hot-Swappable Easy installation and maintenance

The FRM220-CWMD81B-2961 is a high-performance optical transceiver module designed for both Coarse Wavelength Division Multiplexing (CWDM) and Dense Wavelength Division Multiplexing (DWDM) systems, offering 8 channels for efficient data transmission across optical fiber networks. It supports transmission wavelengths at 1291 nm, 1331 nm, 1411 nm, 1451 nm, 1491 nm, 1531 nm, 1571 nm, and 1611 nm, with corresponding reception wavelengths at 1271 nm, 1311 nm, 1351 nm, 1431 nm, 1471 nm, 1511 nm, 1551 nm, and 1591 nm. Featuring LC/UPC connectors and a built-in monitor port for real-time performance monitoring, it ensures high reliability and efficient operation in both telecommunications networks and data centers. The module’s hot-swappable design simplifies installation and maintenance, while its low insertion loss and high stability ensure optimal performance over long distances. With its ability to support point-to-point and point-to-multipoint configurations, it is ideal for fiber optic backbone networks and long-haul optical transport systems, delivering scalable, high-bandwidth connectivity while maximizing the use of available fiber infrastructure. Built to operate in various environmental conditions, the FRM220-CWMD81B-2961 offers a versatile and reliable solution for modern, high-demand optical communication applications.

Specifications

Channel 4 or 8 channels
Standards ITU-T G.694.2
Wavelength 1271 ~ 1611nm
Insertion Loss 4ch < 1.8dB, 8ch < 3.0dB
Return Loss >45dB
Option Upgrade port
Wide 1310 ± 50 nm
Line Link Single fiber or two fiber
Connector LC / UPC
Dimension 4ch : 159.5 × 20.8 × 88mm (D×W×H)
8ch : 159.5 × 42.1 × 88mm (D×W×H)
Weight 4ch : 200g
8ch : 380g
Temperature 0 ~ 50°C (Operating)
-40 ~ 70°C (Storage)
Humidity 0 ~95% (non-condensing)
Certification CE, FCC

Ordering Information

Model Name Description
Single Fiber CWDM Mux/Demux
FRM220-CWMD81B-2961 8ch, TX(1291,1331,1411,1451,1491,1531,1571,1611nm), RX(1271,1311,1351,1431,1471,1511,1551,1591

nm) type B, with monitor port, LC/UPC





Application

Figure 1 : 4 channels Duplex Transmission CWDM Mux & Demux
4 channels Duplex Transmission CWDM Mux & Demux Application with FRM220-CWMD
Figure 2: 4 channels Bi-Directional Transmission CWDM Mux & Demux
4 channels Bi-Directional Transmission CWDM Mux & Demux Application with FRM220-CWMD
