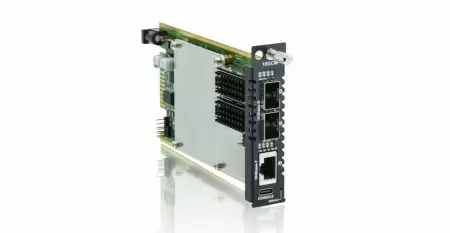

10G In-Band Managed Media Converter FRM220-10GCM

2x 1G/2.5G/5G/10G Base-R SFP+ ports, 1x 100M/1G/2.5G/5G/10GBase-T RJ45 port
Local/remote in-band management
IP-based, Web GUI, Telnet, SNMP management
Auto-Negotiation & Auto MDI/MDIX
Supports up to 10KB Jumbo packets
Flow control (Pause) support
BERT/loopback testing support
Far End Fault Indication (FEFI)
Link Fault Pass-Through (LFPT)
D/D function for compatible SFP transceivers
Auto Laser Shutdown (ALS)
Online local/remote firmware upgrades
Fiber Redundant mode
Supports DWDM Tunable SFP+ modules

The FRM220-10GCM is a high-performance, 10G In-Band Managed Media Converter with two 10GBase-R SFP+ ports and one multi-speed 100M/1G/2.5G/10GBase-T RJ45 port, enabling seamless connection between Ethernet devices and a 10G fiber backbone. It features extensive management capabilities through local and remote access via IP-based interfaces, Web GUI, Telnet, and SNMP, allowing for comprehensive monitoring, configuration, and control of the network. The converter supports key functionalities such as auto-negotiation, auto MDI/MDIX, and the forwarding of jumbo frames up to 10KB, as well as advanced diagnostics like BERT and loopback testing. It includes features like Flow Control (Pause), Far End Fault Indication (FEFI), Link Fault Pass-Through (LFPT), and Fiber Redundant mode for enhanced reliability. Additionally, it supports Dynamic/Deactivation (D/D) function for compatible SFP fiber transceivers, Auto Laser Shutdown (ALS) for energy efficiency, and online local/remote firmware upgrades. The converter is also compatible with DWDM tunable SFP+ modules, making it highly adaptable for various high-speed, mission-critical networking environments, including those requiring redundant fiber connections and advanced fault management.

Specifications

Interface	1-port 100M/1G/2.5/5G/10Gbps RJ45 + 2-port 10G/5G/2.5G/1Gbps SFP+ with USB console port
Filter & Forward Rate	14880pps at 10Mbps, 148800pps at 100Mbps, 1488000pps at 1Gbps, 14880000pps at 10Gbps
Transmission Method	Store and Forward
Standard	IEEE 802.3 IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1D
Standard	IEEE 802.1w, IEEE 802.1s
Packet Buffer	2M bits
MAC Table Size	16K
Max. Packet Size	10K Bytes
Management	Web/Telnet /SNMP, HTTP, IPv6/IPv4 management
SNMP Agent	SNMP v1/v2c
Software Upgrade	HTTP, console
LED Display	Power, System, Link, Speed/Act, Test
Power Input	12VDC
Power Consumption	< 10W
Operating Temperature	0 ~ 45°C
Storage Temperature	-10 ~ 70°C
Humidity	5% ~ 90% (non-condensing)
Dimensions	159.5 × 20.8 × 88mm (D×W×H)
Regulatory	FCC, CE
