Features
- Plug and Play installation
- No additionally AC/DC power supply required
- Extending the PoE signal for additional 100 meters
Application

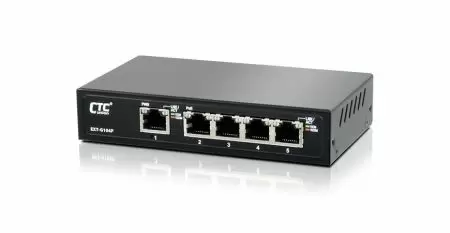

PoE Product | Gigabit PoE Extender EXT-G104P
- Plug-and-Play Installation – No configuration needed; simply connect to extend your PoE network effortlessly.
- No Additional Power Supply Required – Operates using existing PoE power, eliminating the need for extra AC/DC adapters.
- Extends PoE Signal by 100 Meters – Expands network reach for PoE devices such as IP cameras, access points, and VoIP phones.
- Gigabit Speed & Reliable Performance – Supports 10/100/1000Mbps transmission, ensuring stable high-speed data transfer.
- Compact & Durable Design – Built for efficiency in various environments, with the ability to daisy-chain multiple extenders for even greater coverage.
CTC Union Technologies unveils the 5 ports PoE extender, which is not powered via AC/DC power adaptor, model names as EXT-G104P. It is featured 1 port Gigabit based RJ45 in PoE++/PD compliant and 4 ports Gigabit based RJ45 in POE+/ PSE compliant. The PoE++/PD RJ45 port is powered by an externally PoE extender or injector complies to IEEE 802.3bt standard. It behaves as an extender to support more than 100 meters distance for power over Ethernet feeding.
Specifications
-
IEEE Standard
-
IEEE 802.3 10Base-T Ethernet
-
IEEE 802.3u 100Base-TX Fast Ethernet
-
IEEE 802.3ab 1000Base-T Gigabit Ethernet
-
IEEE 802.3af PoE standard (15.4W)
-
IEEE 802.3at PoE+ standard (30W)
-
IEEE 802.3bt PoE++ standard (90W)
-
-
PoE/PD Input
-
RJ45 pin assignment: Both 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
-
Auto MDI/MDIX, Auto negotiation function
-
-
PoE/PSE Output
-
RJ45 pin assignment: 1/2 (+), 3/6 (-)
-
Auto MDI/MDIX, Auto negotiation function
-
-
LED Indicator
-
LED embedded on RJ45 connectors
-
“Power” LED: PoE/PD powered successfully
-
“PoE” LED: PoE/PSE enabled
-
“Link/ACT” LED: Network indicator
-
-
Dimension
-
138mm(W) × 76.58mm(D) × 28mm(H)
-
-
Installation
-
Wall mounting
-
-
Temperature
-
0 ~ 50ËšC (Operating)
-
-10 ~ 70ËšC (Storage)
-
-
Humidity
-
10% ~ 90% (Non-condensing)
-
-
Regulatory Certification
-
CE, FCC
-
1 port PoE++/PD to 4 ports PoE+/PSE GbE PoE Extender
Key Features
-
Plug-and-Play installation
-
No additional AC/DC power supply required
Features
-
Extends the PoE signal for an additional 100 meters
Application
-
PoE Injector: INJ-G90
-
L2+ Managed Switch: GSW-4424CM
-
Supported Speeds: 10M/100M/1G/2.5G/5G/10Gbps
Ordering Information
Model Name: EXT-G104P
Description: 1 port PoE++/PD to 4 ports PoE+/PSE GbE PoE Extender
