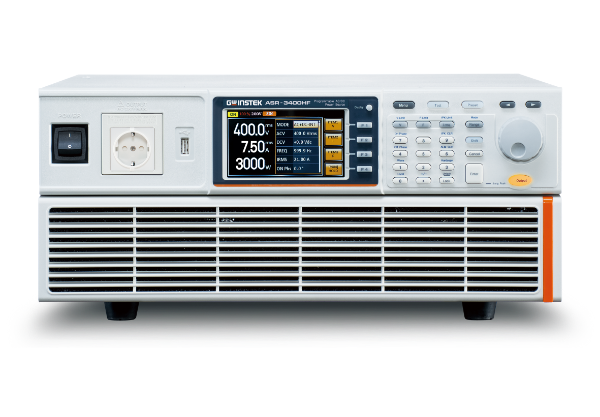

ASR-3400 Series Programmable AC/DC Power Source

ASR-3400 Series Programmable AC/DC Power Source

  • Power Rating 4 kVA, providing high power for demanding applications.
  • Max. Output Current 40 A (AC) and 20 A (DC), suitable for a wide range of devices.
  • Max. Output Voltage 400 Vrms (AC) and ±570 Vdc (DC), offering versatile power options.
  • Programmable Control Allows precise adjustments of voltage, current, and frequency for testing and simulation.
  • Safety Features Equipped with overload, overvoltage, and overcurrent protection, ensuring reliable and safe operation for research, development, and industrial use.
Send Enquiry

Key Features

  • Power rating 4 kVA
  • Max. output current 40 A (AC) / 20 A (DC)
  • Max. output voltage 400 Vrms (AC) / ±570 Vdc (DC)
  • Programmable voltage, current, and frequency control
  • Ideal for research, testing, and industrial applications
  • Overload, overvoltage, and overcurrent protection

The ASR-3400 Series Programmable AC/DC Power Source is engineered to provide precise and reliable power for a wide range of testing, development, and industrial applications. With a power rating of 4 kVA, it can deliver a maximum output current of 40 A in AC mode and 20 A in DC mode, offering substantial power for even the most demanding devices. The power source supports a maximum output voltage of 400 Vrms in AC and ±570 Vdc in DC, providing versatile functionality for various electrical testing environments. Its programmable nature allows for seamless control over voltage, current, frequency, and waveforms, enabling accurate simulation of different power conditions. The device also boasts a high level of protection against overloads, overvoltage, and overcurrent, ensuring safety and reliability in operation. With a compact design and user-friendly interface, the ASR-3400 is ideal for applications in research and development, electronics testing, and power system testing, offering the flexibility and precision required for sophisticated testing procedures.

Specifications

SPECIFICATIONS
ASR-3200 ASR-3300 ASR-3400 ASR-3500 ASR-3400HF
INPUT RATING (AC rms)
NOMINAL INPUT VOLTAGE 200 Vac to 240 Vac
INPUT VOLTAGE RANGE 180 Vac to 264 Vac
PHASE Single phase, Two-wire
NOMINAL INPUT FREQUENCY 50 Hz to 60 Hz
INPUT FREQUENCY RANGE 47 Hz to 63 Hz
MAX. POWER CONSUMPTION 2500 VA or less 3750 VA or less 5000 VA or less 6000 VA or less 5000 VA or less
POWER FACTOR*1 200 Vac 0.95 (TYP)
*1. For an output voltage of 100 V / 200 V (100 V / 200 V range), maximum current, and a load power factor of 1.
AC MODE OUTPUT RATINGS (AC rms)


VOLTAGE

Setting Range*1 0.0 V to 200.0 V / 0.0 V to 400.0 V
Setting Resolution 0.1 V
Accuracy*2 ±(1 % of set + 1 V / 2 V)
OUTPUT PHASE Single phase, Two-wire
MAXIMUM CURRENT*3 100 V 20 A 30 A 40 A 50 A 40 A
200 V 10 A 15 A 20 A 25 A 20 A
MAXIMUM PEAK CURRENT*4 100 V 120 A 180 A 240 A 300 A 160 A
200 V 60 A 90 A 120 A 150 A 80 A
LOAD POWER FACTOR 0 to 1(leading phase or lagging phase)
POWER CAPACITY 2000 VA 3000 VA 4000 VA 5000 VA 4000 VA






FREQUENCY

Setting Range AC Mode: 40.00 Hz to 999.9 Hz,

AC+DC Mode: 1.00 Hz to 999.9 Hz

AC Mode: 40.0 Hz to 5000 Hz,

AC+DC Mode: 1 Hz to 5000 Hz



Setting Resolution

0.01 Hz (1.00 Hz to 99.99 Hz),

0.1 Hz (100.0 Hz to 999.9 Hz)

0.01 Hz (1.00 Hz to 99.99 Hz),

0.1 Hz (100.0 Hz to 999.9 Hz),

1 Hz (1000 Hz to 5000 Hz)

Accuracy 0.02 % of set (23 °C ± 5 °C)
Stability*5 ± 0.005 %
OUTPUT ON PHASE to 359° variable (setting resolution 1°)
DC OFFSET*6 Within ± 20 mV (TYP)
*1. 100 V / 200 V range
*2. For an output voltage of 20 V to 200 V / 40 V to 400 V, an output frequency of 45 Hz to 65 Hz, no load, and 23 °C ± 5 °C.
*3. For an output voltage of 1 V to 100 V / 2 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 200 V / 200 V to 400 V.
If there is the DC superimposition, the current of AC+DC mode satisfies the maximum current. In the case of lower than 40 Hz, and the power rating temperature, the maximum current will be decrease.
*4. With respect to the capacitor-input rectifying load. Limited by the maximum current.
*5. For 45 Hz to 65 Hz, the rated output voltage, no load and the resistance load for the maximum current, and the operating temperature.
*6. In the case of the AC mode and 23 °C ± 5 °C.
OUTPUT RATING FOR DC MODE


VOLTAGE

Setting Range*1 -285 V to +285 V / -570 V to +570 V
Setting Resolution 0.1 V
Accuracy*2 ±(1 % of set + 1 V / 2 V)
MAXIMUM CURRENT*3 100 V 20 A 30 A 40 A 50 A 40 A
200 V 10 A 15 A 20 A 25 A 20 A
MAXIMUM PEAK CURRENT*4 100 V 120 A 180 A 240 A 300 A 160 A
200 V 60 A 90 A 120 A 150 A 80 A
POWER CAPACITY 2000 W 3000 W 4000 W 5000 W 4000 W
*1. 100 V / 200 V range
*2. For an output voltage of -285 V to -28.5 V, +28.5 V to +285 V / -570 V to -57 V, +57 V to +570 V, no load, and 23 °C ± 5 °C.
*3. For an output voltage of 1.4 V to 100 V / 2.8 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 250 V / 200 V to 500 V.
*4. Limited by the maximum current.
OUTPUT VOLTAGE STABILITY
LINE REGULATION*1 0.2 % or less
LOAD REGULATION*2 0.5 % or less (0 % to 100 %, via output terminal)
RIPPLE NOISE*3 1 Vrms / 2 Vrms (TYP)
*1. Power source input voltage is 200 V, 220 V, or 240 V, no load, rated output.
*2. For an output voltage of 100 V to 200 V / 200 V to 400 V, a load power factor of 1, stepwise change from an output current of 0 A to maximum current (or its reverse), using the output terminal on the rear panel.
*3. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel.
OUTPUT VOLTAGE WAVEFORM DISTORTION RATIO, OUTPUT VOLTAGE RESPONSE TIME, EFFICIENCY


TOTAL HARMONIC DISTORTION(THD)*1

< 0.2 % @50/60 Hz < 0.2 % @50/60 Hz <0.2 % @50/60 Hz
< 0.3 % @<500 Hz < 0.6 % @<500 Hz <0.5 % @<500 Hz
< 0.5 % @500.1 Hz to 999.9 Hz < 0.8 % @500.1 Hz to 999.9 Hz <1 % @500.1 Hz to 2000 Hz
< 2 % @2001 Hz to 5000 Hz
OUTPUT VOLTAGE RESPONSE TIME*2 100 µs (TYP)
EFFICIENCY*3 80 % or more
*1. At an output voltage of 50 V to 200 V / 100 V to 400 V, a load power factor of 1, and in AC mode.
*2. For an output voltage of 100 V / 200 V, a load power factor of 1, with respect to stepwise change from an output current of 0 A to the maximum current (or its reverse).
*3. For AC mode, at an output voltage of 100 V / 200 V, maximum current, and load power factor of 1.
MEASURED VALUE DISPLAY




VOLTAGE



RMS, AVG Value*1

Resolution 0.1 V
Accuracy*2 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.5 V / 1 V)
For all other frequencies: ±(0.7 % of reading + 1 V / 2 V)
PEAK Value Resolution 0.1 V
Accuracy For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 1 V / 2 V)








CURRENT





RMS, AVG Value

Resolution 0.01 A


Accuracy*3

For 45 Hz to 65 Hz and DC:

±(0.5 % of reading+0.1 A/0.05 A)

For 45 Hz to 65 Hz and DC:

±(0.5 % of reading+0.15 A/0.08 A)

For 45 Hz to 65 Hz and DC:

±(0.5 % of reading+0.2 A/0.1 A)

For 45 Hz to 65 Hz and DC:

±(0.5 % of reading+0.25 A/0.13 A)

For 45 Hz to 65 Hz and DC:

±(0.5 % of reading+0.2 A/0.1 A)

For all other frequencies:

±(0.7 % of reading+0.2 A/0.1 A)

For all other frequencies:

±(0.7 % of reading+0.3 A/0.15 A)

For all other frequencies:

±(0.7 % of reading+0.4 A/0.2 A)

For all other frequencies:

±(0.7 % of reading+0.5 A/0.25 A)

For all other frequencies:

±(0.7 % of reading+0.4 A/0.2 A)



PEAK Value

Resolution 0.1 A
Accuracy*4 For 45 Hz to 65 Hz and DC:

±(|2 % of reading| + 0.5 A/0.25 A)

For 45 Hz to 65 Hz and DC:

±(|2 % of reading| + 0.8 A/0.4 A)

For 45 Hz to 65 Hz and DC:

±(|2 % of reading| + 1 A/0.5 A)

For 45 Hz to 65 Hz and DC:

±(|2 % of reading| + 1.3 A/0.65 A)

For 45 Hz to 65 Hz and DC:

±(|2 % of reading| + 1 A/0.5 A)





POWER

Active (W) Resolution 1 W
Accuracy*5 ±(2 % of reading +2 W) ±(2 % of reading +3 W) ±(2 % of reading +4 W) ±(2 % of reading +5 W) ±(2 % of reading +4 W)
Apparent (VA) Resolution 1 VA
Accuracy*5*6 ±(2 % of reading +2 VA) ±(2 % of reading +3 VA) ±(2 % of reading +4 VA) ±(2 % of reading +5 VA) ±(2 % of reading +4 VA)
Reactive (VAR) Resolution 1 VAR
Accuracy*5*7 ±(2 % of reading +2 VAR) ±(2 % of reading +3 VAR) ±(2 % of reading +4 VAR) ±(2 % of reading +5 VAR) ±(2 % of reading +4 VAR)
LOAD POWER FACTOR Range 0.000 to 1.000
Resolution 0.001
LOAD CREST FACTOR Range 0.00 to 50.00
Resolution 0.01
HARMONIC VOLTAGE EFFECTIVE VALUE (RMS) PERCENT (%)

(AC-INT and 50/60 Hz only)

Range Up to 100th order of the fundamental wave
Full Scale 200 V / 400 V, 100%
Resolution 0.1 V, 0.1%
Accuracy*8 Up to 20th : ±(0.2 % of reading + 0.5 V / 1 V)

20th to 100th : ±(0.3 % of reading + 0.5 V / 1 V)

HARMONIC CURRENT EFFECTIVE VALUE (RMS) PERCENT (%) Range Up to 100th order of the fundamental wave
Full Scale 20 A / 10 A, 100 % 30 A / 15 A, 100 % 40 A / 20 A, 100 % 50 A / 25 A, 100 % 40 A / 20 A, 100 %
Resolution 0.01 A/0.1 A, 0.1%


Accuracy*3

Up to 20th

±(1 % of reading+0.4 A/0.2 A)

Up to 20th

±(1 % of reading+0.6 A/0.3 A)

Up to 20th

±(1 % of reading+0.8 A/0.4 A)

Up to 20th

±(1 % of reading+1 A/0.5 A)

Up to 20th

±(1 % of reading+0.8 A/0.4 A)

20th to 100th

±(1.5 % of reading+0.4 A/0.2 A)

20th to 100th

±(1.5 % of reading+0.6 A/0.3 A)

20th to 100th

±(1.5 % of reading+0.8 A/0.4 A)

20th to 100th

±(1.5 % of reading+1 A/0.5 A)

20th to 100th

±(1.5 % of reading+0.8 A/0.4 A)

*1. The voltage display is set to RMS in AC/AC+DC mode and AVG in DC mode.
*2. AC mode: For an output voltage of 20 V to 200 V / 40 V to 400 V and 23 °C ± 5 °C. DC mode: For an output voltage of 28.5 V to 285 V / 57 V to 570 V and 23 °C ± 5 °C
*3. An output current in the range of 5 % to 100 % of the maximum current, and 23 °C ± 5 °C.
*4. An output current in the range of 5 % to 100 % of the maximum peak current in AC mode, an output current in the range of 5 % to 100 % of the maximum instantaneous current in DC mode, and 23 °C ± 5 °C. The accuracy of the peak value is for a waveform of DC or sine wave
*5. For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum current, DC or an output frequency of 45 Hz to 65 Hz, and 23 °C ± 5 °C
*6. The apparent and reactive powers are not displayed in the DC mode.
*7. The reactive power is for the load with the power factor 0.5 or lower.
*8. An output voltage in the range of 20 V to 200 V / 40 V to 400 V and 23 °C ± 5 °C.
OTHERS
PROTECTIONS UVP, OCP, OTP, OPP, Fan Fail
DISPLAY TFT-LCD, 4.3 inch
MEMORY FUNCTION Store and recall settings, Basic settings: 10 (0 to 9 numeric keys)
ARBITRARY WAVE Number of Memories 253 (nonvolatile)
Waveform Length 4096 words
USB Type A: Host, Type B: Slave, Speed: 2.0, USB-CDC
LAN MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask





INTERFACE Standard RS-232C Complies with the EIA-RS-232 specifications
EXT Control External Signal Input; External Control I/O
GPIB SCPI-1993, IEEE 488.2 compliant interface
INSULATION RESISTANCE

Between input and chassis, output and chassis, input and output

1000 Vdc, 30 MΩ or more
WITHSTAND VOLTAGE

Between input and chassis, output and chassis, input and output

1500 Vac, 1 minute
EMC EN 61326-1, EN 61326-2-1, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12
EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11/-4-34, EN 55011 (Class A), EN 55032
SAFETY EN 61010-1




ENVIRONMENT

Operating Environment Indoor use, Overvoltage Category II
Operating Temperature Range 0 °C to 40 °C
Storage Temperature Range -10 °C to 70 °C
Operating Humidity Range 20 % to 80 % RH (no condensation)
Storage Humidity Range 90 % RH or less (no condensation)
Altitude Up to 2000 m
TRANSPORTATION INTEGRITY ISTA 2A Test Procedure
DIMENSIONS & WEIGHT 430 mm(W) × 176 mm(H) × 530 mm(D) (not including protrusions); Approx. 25 kg



* Note: A value with the accuracy is the guaranteed value of the specification. However, an accuracy noted as reference value shows the supplemental data

for reference when the product is used, and is not under the guarantee. A value without the accuracy is the nominal value or representative value (shown as typ.).

Standard Accessories

  • Safety Guide
  • Input Terminal Cover
  • Output Terminal Cover Include Remote Sensing
  • GRA-442-E Rack Mount Adapter(EIA)
  • GTL-246 USB Cable

 Optional Accessories (factory installed)

  • European Output Outlet



Optional Accessories
GPW-005
  • Power Cord, 3 m, 105 ℃, UL/CSA Type
GPW-006
  • Power Cord, 3 m, 105 ℃, 1.5 mm2 , VDE Type (ASR-3200 , ASR-3300 Use Only)
GPW-007
  • Power Cord, 3 m, 105 ℃, PSE Type
GPW-017
  • Power Cord, 3 m, 105 °C, 4.0 mm2, VDE Type
GRA-442-J
  • Rack Mount Adapter(JIS)
GTL-137
  • Output Power Wire(Load wire_10 AWG: 50 A, 600 V/ Sense wire_16 AWG: 20 A, 600 V)
GTL-232
  • RS232C cable, approx. 2m
GTL-248
  • GPIB Cable, approx. 2m
ASR-002*
  • External Three Phase Control Unit
APS-008
  • Air inlet filter
ASR-C003
  • Modbus TCP feature

* Basis Requirement of ASR-002 to ASR-Series
1. Must be the three same models of ASR-Series
2. To ASR-2000 Series, the Opt01: RS-232+GPIB interface is required.

* Functions of ASR-Series are limited when conducts to ASR-002
1. No DC Output
2. Measurement Items: only current(A), power(W), and PF for each phase
3. No Voltage and Current Harmonic Analysis
4. No Remote Sensing Capability
5. No Arbitrary Waveform Function
6. No Sequence and Simulation Function
7 Not supported External Control I/O
8. No memory Function
9. Only support USB, no LAN port for communication
