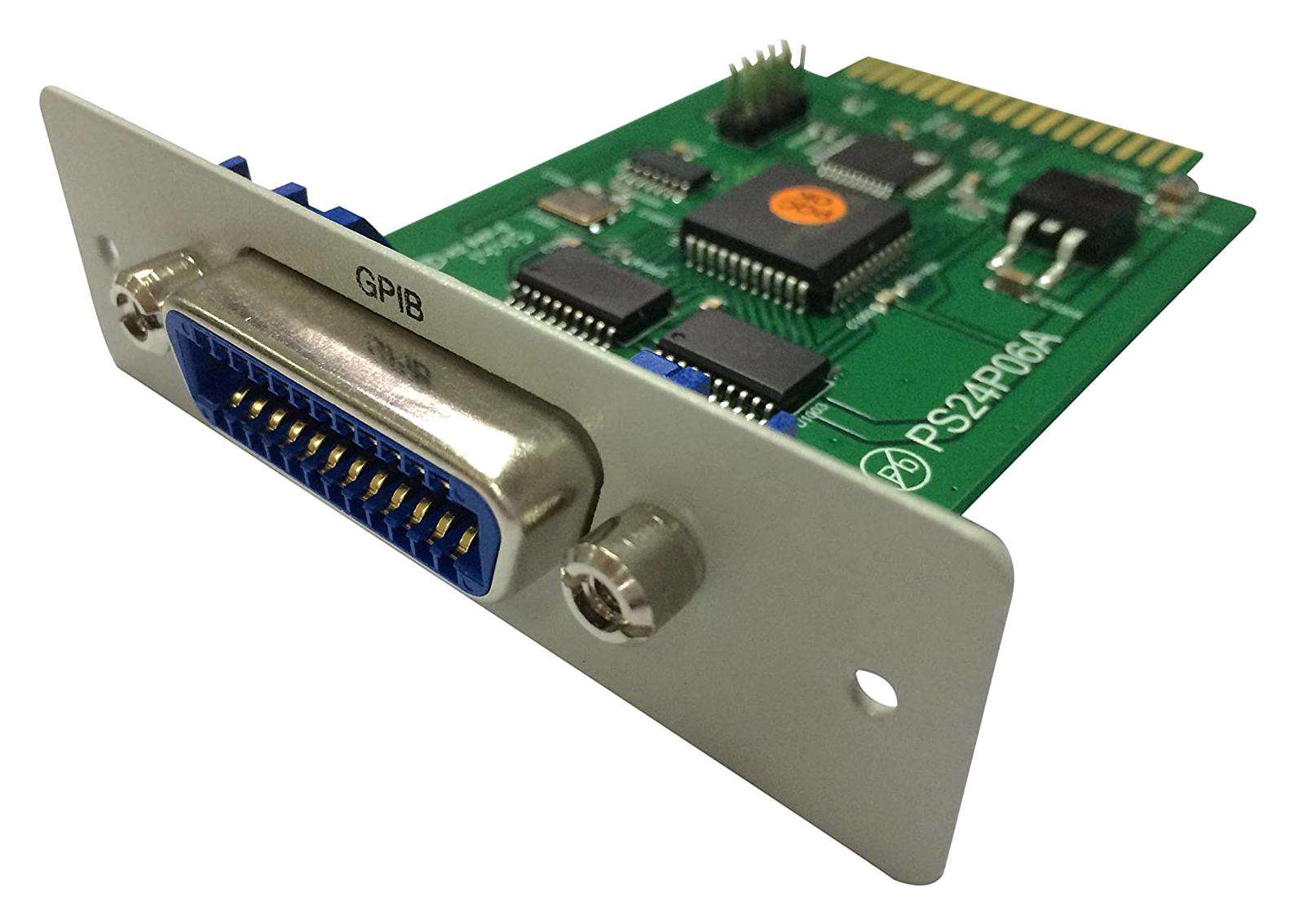

APS-001 GPIB interface card

Key Features

Seamless communication with GPIB-compatible instruments
Fast data transfer and reliable signal integrity
Compatible with multiple operating systems (Windows, Linux)
Easy installation with comprehensive software drivers
Supports IEEE 488 standards for precision control
User-friendly API for custom programming and automation
Compact and energy-efficient design
Ideal for scientific, engineering, and testing applications

The APS-001 GPIB interface card is an advanced, high-performance solution designed to enable seamless communication between a computer and a wide array of GPIB-compatible instruments, such as oscilloscopes, signal generators, multimeters, and power supplies. With its support for IEEE 488 standards, the APS-001 provides a reliable and efficient means of connecting laboratory equipment to a PC for automated data acquisition, control, and analysis. This interface card boasts fast data transfer speeds, precise timing control, and robust error handling to ensure accurate, real-time measurements. It features a simple installation process with comprehensive software drivers for multiple operating systems, including Windows and Linux, offering easy integration into existing test setups. The card is equipped with a user-friendly API for custom programming and automation, allowing for flexible use in a wide range of scientific, engineering, and industrial applications. Whether in research labs, quality control, or production testing environments, the APS-001 delivers high throughput, excellent stability, and enhanced versatility, making it an essential tool for controlling and monitoring GPIB instruments with minimal effort. Additionally, its compact form factor and energy-efficient design ensure it fits into a variety of system configurations while maintaining optimal performance.

APS-7000 Specifications

The specifications apply when the APS-7000 is powered on for at least 30 minutes under +20°C~+30°

Model		APS-7050	APS-7100	APS-7200	APS-7300
Power Rating		500VA	1000VA	2000VA	3000VA
Output Voltage		0 ~ 155Vrms, 0 ~ 310Vrms
Output Frequency		45.00 ~ 500.0 Hz
Max. Current(rms) *1	0 ~ 155 Vrms	4.2A	8.4A	16.8A	25.2A
	0 ~ 310 Vrms	2.1A	4.2A	8.4A	12.6A
Max. Current (peak)	0 ~ 155 Vrms	16.8A	33.6A	67.2A	100.8A
	0 ~ 310 Vrms	8.4A	16.8A	33.6A	50.4A
OPT. APS-003(rms) *6	0 ~ 600 Vrms	1.05A	2.1A	4.2A	6.3A
OPT. APS-003(peak)	0 ~ 600 Vrms	4.2A	8.4A	16.8A	25.2A
Total Harmonic Distortion (THD) *2		≤ 0.5% at 45 ~ 500.0Hz (Resistive Load)
Crest factor		≤ 4
Line regulation		0.1% (% of full scale)
Load regulation		0.3% (% of full scale)
Response time		< 100µs
Reverse current		30% of Maximum Output RMS Current (Continue) 100% of Maximum Output RMS Current (Within 3 minutes)
Setting
Voltage	Range	0 ~ 155Vrms, 0 ~ 310Vrms, Auto
	Resolution	0.01V at 0.00 ~ 99.99Vrms 0.1V at 100.0 ~ 310.0Vrms
	Accuracy	± (0.5% of setting + 2 counts)

Frequency	Range	45 ~ 500 Hz
	Resolution	0.01Hz at 45.00 ~ 99.99Hz 0.1Hz at 100.0 ~ 500.0Hz
	Accuracy	± 0.02% of Setting
OPT. APS-004	Range	45 ~ 999.9Hz
	Resolution	0.01Hz at 45.00 ~ 99.99Hz 0.1Hz at 100.0 ~ 999.9Hz
	Accuracy	± 0.02% of Setting
Power on/off phase angle	Range	0 ~ 359°
	Resolution	1°
	Accuracy	± 1° (Only 45 ~ 65Hz)
*Measurement 3**
Voltage (rms)	Range	0.20 ~ 38.75Vrms 38.76 ~ 77.50Vrms 77.51 ~ 155.0Vrms 155.1 ~ 310.0Vrms
	Resolution	0.01V at 0.00 ~ 99.99Vrms 0.1V at 100.0 ~ 310.0Vrms
	Accuracy *4	± (0.5% of reading + 2 counts)
Frequency	Range	45 ~ 500Hz
	Resolution	0.01Hz at 45.00 ~ 99.99Hz 0.1Hz at 100.0 ~ 500.0Hz
	Accuracy *5	± 0.1Hz
Current (rms)	Range	2.00 ~ 70.00mA 60.0 ~ 350.0mA 0.300 ~ 3.500A 3.00 ~ 17.50A	0.200 ~ 3.500A 3.00 ~ 35.00A
	Resolution	0.01mA 0.1mA 0.001A 0.01A	0.001A 0.01A
	Accuracy	± (0.6% of reading + 5 counts) , 2.00 ~ 350.0mA ± (0.5% of reading + 5 counts) , 0.300 ~ 3.500A ± (0.5% of reading + 3 counts) , 3.000 ~ 17.50A	± (0.5% of reading + 5 counts) , 0.200 ~ 3.500A ± (0.5% of reading + 3 counts) , 3.00 ~ 35.00A
Current (peak)	Range	0.0 ~ 70.0A	0.0 ~ 140.0A
	Resolution	0.1A	0.1A
	Accuracy	± (1% of reading + 1 count)	± (1% of reading + 1 count)

Power (W)	Resolution	0.01W 0.1W 1W	0.1W 1W
	Accuracy	± (0.6% of reading + 5 counts) , 0.20 ~ 99.99W ± (0.6% of reading + 5 counts) , 100.0 ~ 999.9W ± (0.6% of reading + 2 counts) , 1000 ~ 9999W	± (0.6% of reading + 5counts) , 0.2 ~ 999.9W ± (0.6% of reading + 2counts) , 1000 ~ 9999W
Apparent Power (VA)	Resolution	0.01VA 0.1VA 1VA	0.1VA 1VA
	Accuracy	± (1% of reading + 7 counts) , 0.20 ~ 99.99VA ± (1% of reading + 7 counts) , 100.0 ~ 999.9VA ± (1% of reading + 5 counts) , 1000 ~ 9999VA	± (1% of reading + 7 counts) , 0.2 ~ 999.9VA ± (1% of reading + 5 counts) , 1000 ~ 9999VA
Power Factor	Range	0.000~ 1.000
	Resolution	0.001
	Accuracy	±2% reading + 2 counts
General
Remote output signal		Pass, Fail, Test-in Process, Trigger in, Trigger out, OUT ON/OFF
Sync output signal		Output Signal 10 V, BNC Type
Number of Preset		10 (0~9 numeric keys)
Protection		OCP, OPP, OTP and Alarm
Trigger Out		Maximum low level output = 0.8V Minimum high level output = 2V Maximum source current = 8mA.
Trigger In		Maximum low level input voltage = 0.8V Minimum high level input voltage = 2.0V Maximum sink current = 8mA.
SEQUENCE / SIMULATION FUNCTION
Number of Memories		10 (0~9 numeric keys)
Number of Steps		255 max. (for 1 sequence)
Step Time Setting Range *9		0.01 ~ 999.99 s
Operation within Step		Constant, Keep, Linear Sweep
Parameters		Output Range, Frequency, Waveform (sine wave only), On Phase, Off Phase, Term Jump Count (0 ~255), Jump-to, Branch 1, Branch 2, Trigger Output
Sequence Control		Start, Stop, Hold, Continue, Branch 1, Branch 2
AC Input

Phase		Single Phase
Input Voltage		115/230Vac ± 15%		230Vac ± 15%
Input Frequency		50/60Hz
Max. Current		16A/8A	32A/16A	32A	50A
Power Factor		0.7 Typ.
Environmental Conditions
Operating temperature range		0 ~ +40 °C
Storage temperature range		-10 ~ +70 °C
Operating humidity range		20 ~ 80% RH (no condensation)
Storage humidity range		80% RH or less (no condensation)
Interface
Standard		USB Host, LAN		USB Host, USB CDC, LAN
Optional		GPIB (APS-001) RS232 / USB CDC (APS-002)		GPIB (APS-001) RS232 (APS-007)
Dimensions & Weight
Dimensions (mm)	W	430	430	430	430
	H	88	88	312	400
	D	400	560	650	650
Weight		24kg	38kg	90kg	128kg

Product specifications are subject to change without notice.

The Specifications are not suit for ARB mode.

*1 Maximum output current at working voltage 120Vrms, 240Vrms

*2 45 to 500Hz, 10% or higher of the rated output voltage, the maximum current or lower

*3 All of measurement accuracy is at 23±5℃

*4 In the case of 15 to 155V, 30 to 310V, sine wave, no load

*5 For an output voltage of 75 V to 155 V / 150 V to 310 V, sine wave, no load

*6 Maximum output current at working voltage 480Vrms

*9 Step Time does not guarantee specification.
