- Support PD 2.0, QC 2.0/3.0 protocols
- Support FOD test (foreign object detection)
- Provide statistical analysis report function
- Suitable for DC-DC power supply product test (power 150W)
- Provide a variety of expansion cards to quickly upgrade to more test functions
- Equipped with double switching test fixture to switch left and right for highly efficient tests
Wireless Charger Automatic Test System 9901
- Wide Fast-Charging Compatibility Supports PD 2.0, QC 2.0/3.0 protocols, covering a broad range of fast-charging needs.
- Enhanced Safety Features FOD (Foreign Object Detection) to ensure secure power delivery and prevent hazards during testing.
- Comprehensive Reporting Offers detailed statistical analysis and tracks test results, providing valuable insights into performance.
- High Power Capacity Designed for DC-DC power supply testing with up to 150W capacity, enabling accurate evaluations.
- Optimized Testing Efficiency Dual switching test fixture allows for quick left-right switching, increasing testing throughput.

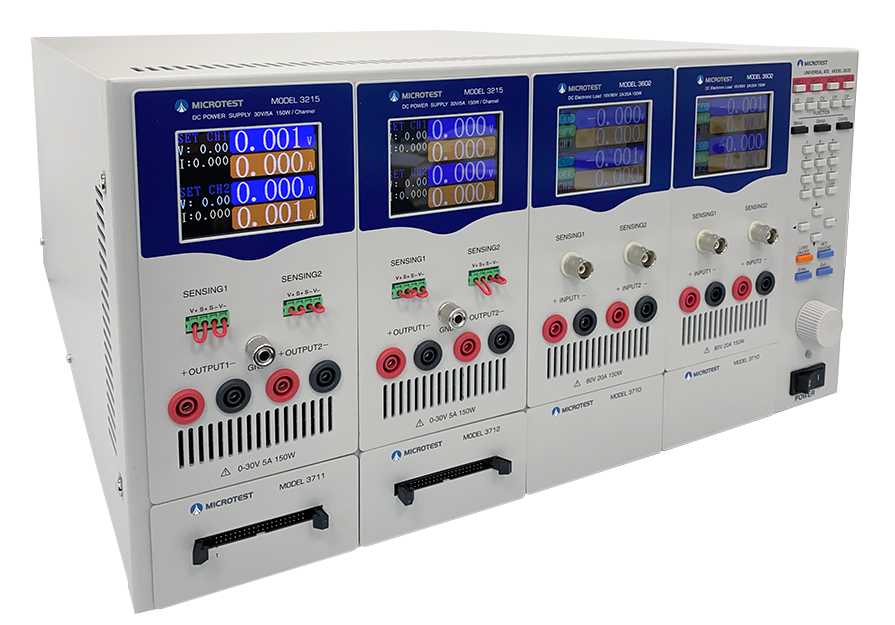

The MICROTEST 9901 Wireless Charger Automatic Testing System offers a high cost-performance ratio, making it ideal for production lines to quickly adopt automated testing for wireless chargers. Designed for testing finished or semi-finished wireless charger modules with power ratings up to 150W, the system supports PD/QC protocols and Foreign Object Detection (FOD). It features up to 44 testing channels and includes dual-cut testing fixtures for efficient operation. Key testing capabilities include no-load standby power measurement (voltage, current, power), output load and efficiency testing (voltage, current, efficiency, power), and protection tests for overvoltage, overcurrent, undervoltage, output short circuit, and FOD detection.
Specifications
SPEC
| 9901 Wireless Charger Automatic Test System | ||
| DC Source
Power supply on transmitting side (Tx) |
Measuring Range – voltage | 0-30V |
| Voltage Accuracy | ±(0.1% of setting +20mV) | |
| Voltage Resolution | 0.01V | |
| Measuring Range – current | 0-5A | |
| Current Accuracy | ±(0.1% of setting +20mA) | |
| Current Resolution | 0.001A | |
| QC protocol – programmable | Compliant to QC 2.0, 3.0 protocols | |
| PD protocol – programmable | Compliant to PD 2.0 protocol | |
| PD protocol – programmable | 30mVp-p | |
| DC Load
Loads on receiving side (Rx) |
Measuring Range – voltage | 0-80V |
| Voltage Accuracy | ±(0.025%+0.025%FS) | |
| Voltage Resolution | 0.02V | |
| Measuring Range – current | 0-20A | |
| Current Accuracy | 0.05%+0.05%FS | |
| Current Resolution | High positions: 0.005A,
Low positions: 0.0005A |
|
| Power | 150W | |
| Test modes | CC/CV/CR/CP | |
| Wireless charger test items | ||
|
||
System Configurations
| 9901 Wireless Charger Automatic Test System (4 channels) | |||
| Instrument | Model | Quantity | SPEC |
| Programmable DC power supply | 3215 | 2 | Power: 150W, Voltage: 0-30V, Current: 0-5A |
| Programmable DC electronic load | 3602 | 2 |
150W, Voltage: 0-80V/Current: 0-20A
|
| Industrial computer/NB | Types can be selected | 1 | Select based on customer’s needs |
| Modular chassis for instruments | 3600 | 1 | Height: 5U |
| Test software | PT960F | 1 | Dedicated software for wireless charger products automatic testing |
| Function expansion card | 3711 | 1 | Function expansion for QC/PD and other protocols |
| Control card | 3712 | 1 | Control indicators, FOD test |
| Test fixtures | Customized | 1 | Test fixtures for wireless charging modules/wireless chargers |
| System cabinet/desktop | 9901/3600 | 1 | Including power supply jack and related communication cables |
SYSTEM
| Storge | By PC | ||
| Power Supply | Voltage (fixed) | 90-264Vac | |
| Frequency | 50-60Hz±5% | ||
| Â Power consumption | 300VA | ||
|   Environment | Temperature | 0℃-40℃ | |
| Humidity | 0-80%RH | ||
| Display | LCD (320*240) (3215/3602) | ||
| Â Â Dimension (W*H*D) | 432×234.6×533 mm (3600) | ||
| Â Â Weight | 31 Kg (4 Channels,3600) | ||

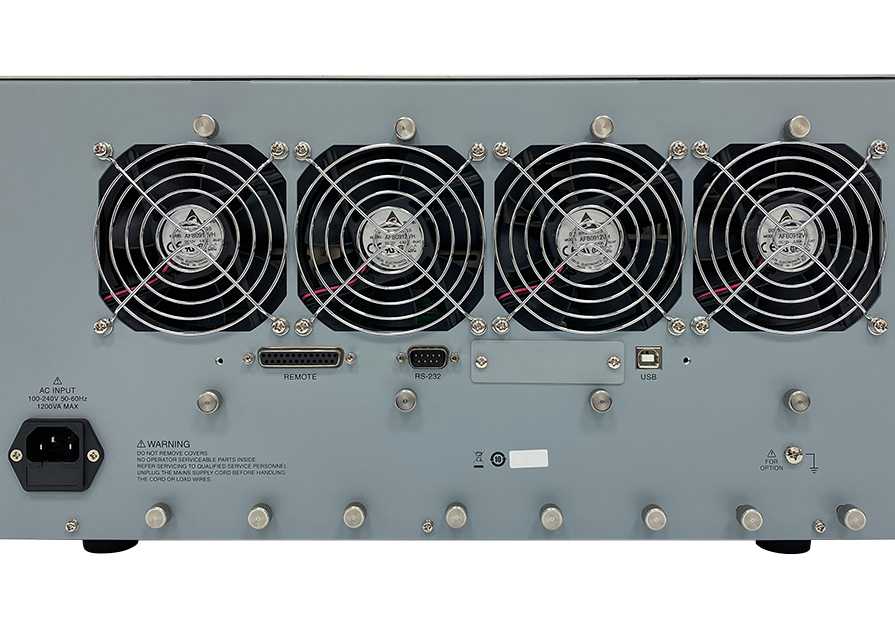

| Interface | RS-232, USB Device | ||
Standard Accessories
| Â Red/black test leads-12AWG/50cm
(For 3215/3602) |
|
| Â BNC+BNC test leads-100cm
(For 3602) |
|
| Â Â BNC+red/black tinned wires-100cm
(For 3215) |
|
| Â Â D-SUB male to male test leads-25PIN
(Remote) |
Optional Accessories
| Â PC Link Software | |
|   Test leads -40PIN/2.0mm/40cm
(For 3711/3712) |
|
| Â Â Function expansion card
(For 3711) |
|
| Â Â Control card
(For 3712) |
|
| Â Â Wireless charging receiver (Rx) | |
