Measurement bandwidth: DC to 100 kHz
-
±0.05% basic accuracy for voltage, current, and power
-
High-speed 500 kSPS sampling rate with 16-bit resolution
-
50th-order harmonic analysis (numerical display)
-
Simultaneous voltage and current waveform monitoring
-
Automatic integration mode up to 10 000 hours (Ah/Wh)
-
4.3-inch TFT LCD numerical display for 4, 8, or 16 parameters
-
PASS/FAIL comparison mode for production testing
-
Automatic range switching for efficient operation
-
Supports external current sensor input up to 500 A
-
Communication interfaces: USB Host/Device, RS-232, LAN, SIGNAL I/O
-
Designed for laboratory, R&D, and production environments
Power Meter 7130
- ±0.05% high measurement accuracy
- 500 kSPS sampling rate
- DC to 100 kHz measurement bandwidth
- 50th-order harmonic analysis
- Multi-parameter numerical display with waveform view

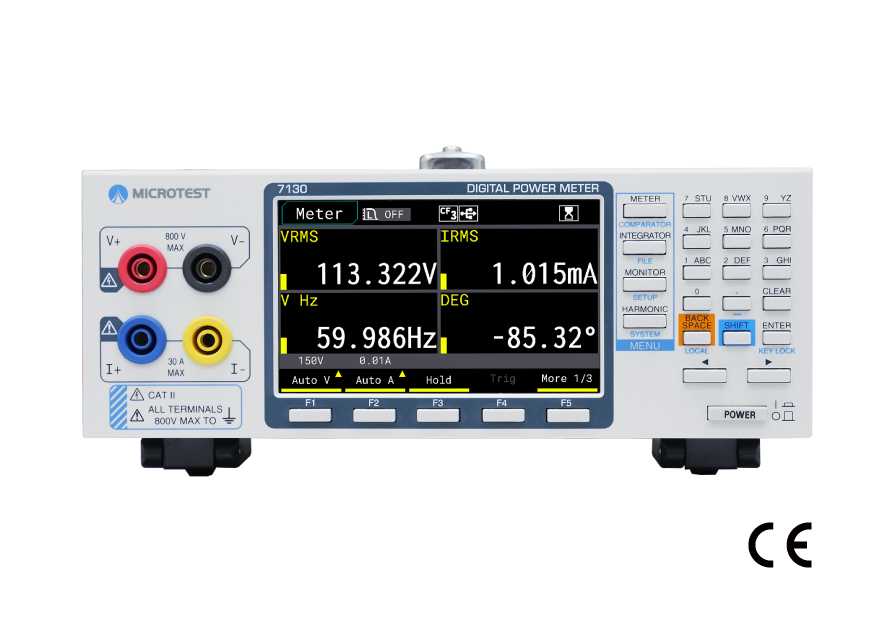

The 7130 Power Meter is a high-accuracy single-phase AC/DC power measurement instrument designed for precise electrical parameter analysis.
It provides ±0.05% accuracy, a 500 kSPS sampling rate, and a wide DC to 100 kHz measurement bandwidth.
This model supports up to 50th-order harmonic analysis with real-time voltage and current waveform display.
The compact design with a 4.3-inch LCD enables simultaneous multi-parameter display and supports long-term power monitoring, making it ideal for laboratories, quality control, and production test applications.
| Parameter | Specification |
|---|---|
| Model | 7130 Power Meter |
| Measurement Type | Single-phase, two-wire (1P2W) |
| Measurement Bandwidth | DC to 100 kHz |
| Sampling Rate | 500 kSPS, 16-bit A/D |
| Basic Accuracy | ±0.05% of reading ±0.05% of range |
| Voltage Input Range | Up to 800 V (Direct input) |
| Voltage Peak Value | 1131 V |
| Current Input Range | Up to 30 A (Direct input) |
| External Current Sensor Input | 0.5 V / 1 V / 2 V / 5 V / 10 V (up to 500 A) |
| Minimum Current Range | 5 mA |
| Power Resolution | 10 μW |
| Integration Duration | Up to 10 000 hours (Ah / Wh) |
| Integration Accuracy | ±(Power accuracy or current accuracy + 0.05% of reading) |
| Harmonic Analysis | Up to 50th order |
| Display | 4.3 in TFT LCD (800 × 480) |
| Display Mode | Numerical / waveform display |
| Input Impedance (Voltage) | 1.66 MΩ / 13 pF |
| Input Impedance (Current) | 500 mΩ + 10 mΩ (wire) |
| Synchronization Source | Voltage, current, or full period |

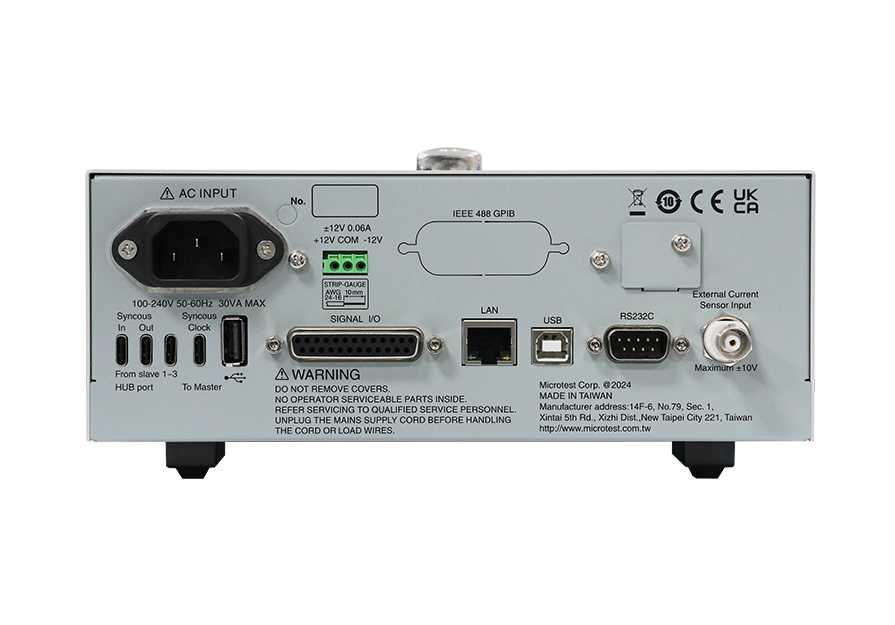

| Interfaces | USB Host, USB Device, RS-232, LAN (10/100 M), SIGNAL I/O |
| Memory Storage | USB disk, embedded flash |
| Power Supply | 100 – 240 VAC, 50/60 Hz |
| Power Consumption | 30 VA max |
| Dimensions (W×H×D) | 214 × 115 × 300 mm |
| Weight | 2.9 kg |
| Operating Temperature | 13 °C to 40 °C |
| Humidity | < 80 % RH |
| Compliance | IEC 62301 Ed. 2 (measurement functions equivalent to 7140) |
| Functions | PASS/FAIL comparison, integration, voltage/current waveform display |
| Category | Model / Description |
|---|---|
| Standard Accessories | TL-PM0001 (100 cm Red Cable) |
| TL-PM0002 (100 cm Black Cable) | |
| TL-PM0003 (100 cm Blue Cable) | |
| TL-PM0004 (100 cm Yellow Cable) | |
| Power cord | |

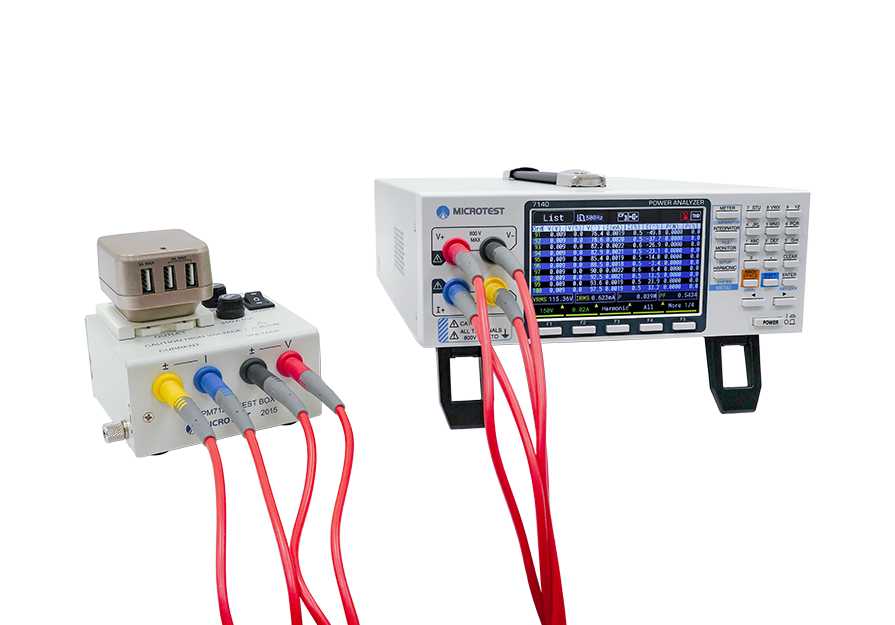

| Optional Accessories | F71201 AC Test Box (250 V / 15 A) |
| TL-000006 Ethernet Cable (150 cm) | |
| TL-000007 USB Cable (Type-A to Type-B, 180 cm) | |
| AX-PM0001 Test Probe (Red) | |
| AX-PM0002 Test Probe (Black) | |
| AX-PM0003 Alligator Clip (Yellow) | |
| AX-PM0004 Alligator Clip (Blue) | |
| TL-000014 D-Sub Cable (25M-25M, 180 cm) | |
| Hall Sensor (AC 500 A / 4 V) | |
| Current Transformer (AC 100 A / 1 V) |
