Features
Applicable Models： 8761NAC/8751NAC
Function： For USB Type-C Test
Application
| USB Type-C |
 |

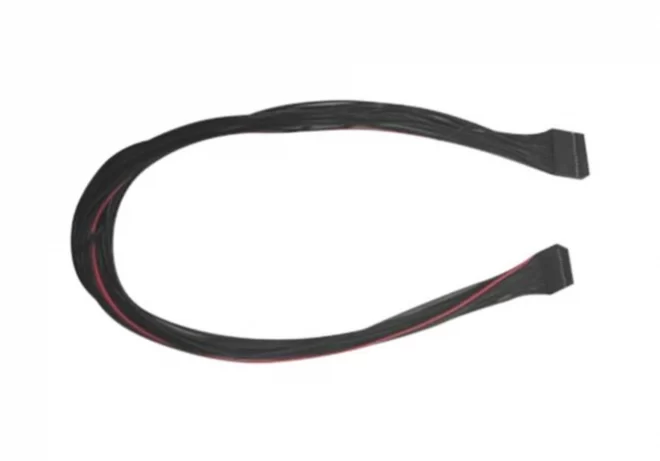

Cable Harness Testing Fixture 26PIN Cable DuPont Terminal
- 26PIN Cable DuPont Terminal – Designed for USB Type-C testing with high precision.
- Compatible with 8761NAC/8751NAC – Works seamlessly with these testing models.
- Used with 8740-F2 Adapter Board – Ensures reliable and efficient performance.
- High Insulation & Safety – 300MΩ @ DC 300V insulation and AC Hi-Pot up to 200V.
- Optimal Length – Approx. 600mm for flexibility and ease of use.
The 26PIN Cable DuPont Terminal is designed for USB Type-C testing, ensuring precise and reliable performance. Compatible with 8761NAC and 8751NAC models, it works seamlessly for efficient cable harness evaluation. Used with the 8740-F2 adapter board, this cable provides a secure and stable connection for accurate testing. With 300MΩ @ DC 300V insulation resistance and AC Hi-Pot support up to 200V, it ensures safety and durability in demanding test environments. Measuring approximately 600mm in length, it offers flexibility and ease of use, making it an essential tool for high-precision testing applications.
Specifications
Used with 8740-F2 adapter board, Length approx. 600mm
DC insulation：300MΩ @DC 300V
AC Hi pot：200V
Selection
| 8761NAC / 8751NAC |
 |
