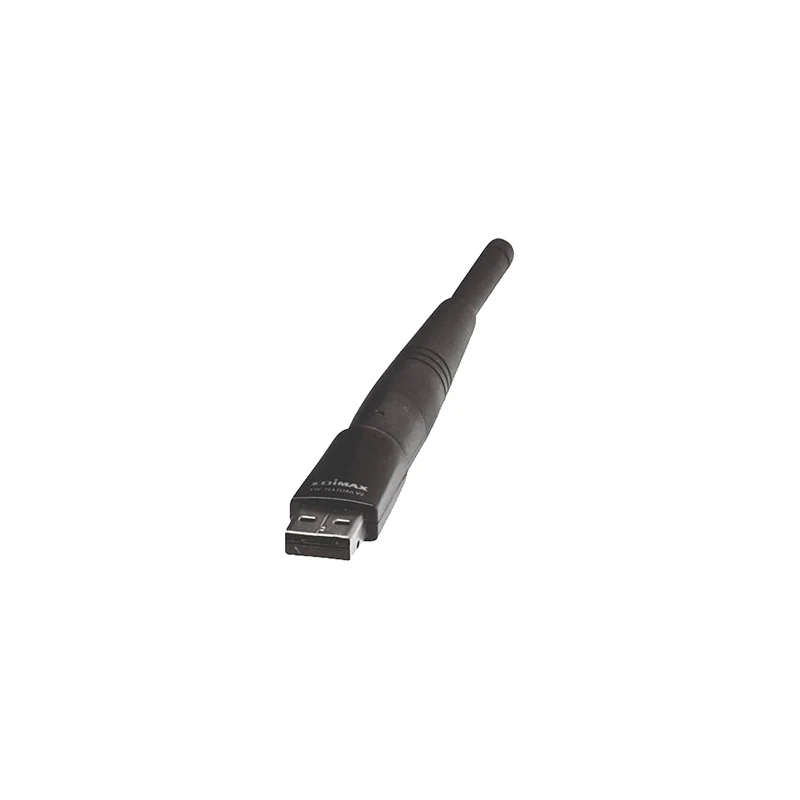

150061 High Sensitivity Antenna

150061 High Sensitivity Antenna

  • External USB high-sensitivity WiFi antenna designed for LanXPLORER, extending wireless range and improving weak-signal reception for site surveys and interference analysis.

  • Compact, rugged enclosure suits field use; quick USB plug-and-play setup means immediate operation with minimal configuration required.

  • High-gain performance with directional reception reduces packet loss and increases throughput when testing in congested or noisy RF environments.

  • Includes magnetic or suction mounting options and adjustable swivel for optimal antenna positioning on vehicles, racks, or test benches.

  • Ideal for technicians and engineers performing WiFi site surveys, security assessments, and performance validation with LanXPLORER’s wireless diagnostic tools, improving detection of hidden APs.

Send Enquiry

Key Features:

  • External USB interface — plug-and-play with LanXPLORER.

  • Dual-band operation: 2.4 GHz and 5 GHz support (Wi-Fi compatible).

  • High-sensitivity, high-gain antenna design for improved reception.

  • Directional tuning via adjustable swivel to focus on weak sources.

  • Multiple mounting options: magnetic base and suction cup included.

  • Rugged, weather-tolerant enclosure for field deployments.

  • Includes USB cable and protective pouch for portability.

  • Lightweight and compact for easy transport in tool bags or vehicle kits.

The External USB High Sensitivity WiFi Antenna for LanXPLORER is engineered to dramatically improve wireless signal detection and reception when performing site surveys, interference analysis, and wireless diagnostics. Its high-gain design increases the effective range of your LanXPLORER unit, helping technicians locate weak access points, identify coverage gaps, and capture low-power beacon frames that might otherwise be missed. Built for field use, the antenna pairs plug-and-play simplicity with rugged construction so you can deploy it quickly on vehicles, rooftops, racks, or test benches.

Thoughtfully designed mounting options and an adjustable swivel make it easy to aim the antenna for the best signal path, reducing packet loss and improving throughput during real-world testing. The package includes practical accessories such as a USB cable, magnetic and suction mounts, and a protective pouch so engineers always have flexible mounting choices. Lightweight and portable, this antenna is an ideal companion for network professionals who need a dependable way to extend WiFi sensitivity and accuracy during troubleshooting and validation tasks.

Technical Specifications
Specification Details
Compatibility LanXPLORER series testers (USB connectivity)
Frequency Bands Dual-band 2.4 GHz & 5 GHz
Typical Gain Approx. 8–9 dBi @ 2.4 GHz; 6–8 dBi @ 5 GHz
Connector USB-A (USB-C adapter optional)
Mounting Options Magnetic base, suction cup, swivel adapter
Cable Length 1.5 m detachable USB cable
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Dimensions 220 × 40 × 30 mm (antenna body)
Weight Approx. 180 g (full kit)
Enclosure Rugged polymer, splash-resistant
Regulatory Complies with standard RF emission guidelines
Accessories Included
Accessory Quantity Description
External USB High Sensitivity Antenna 1 Main antenna unit designed for LanXPLORER
USB Cable 1 1.5 m detachable cable for flexible connection
Magnetic Mount 1 For attaching securely to metal surfaces
Suction Cup Mount 1 For quick mounting on glass or smooth surfaces
Swivel Adapter 1 Adjustable angle mount for directional tuning
Protective Pouch 1 For safe storage and transport
Quick Start Guide 1 Setup instructions and usage tips
