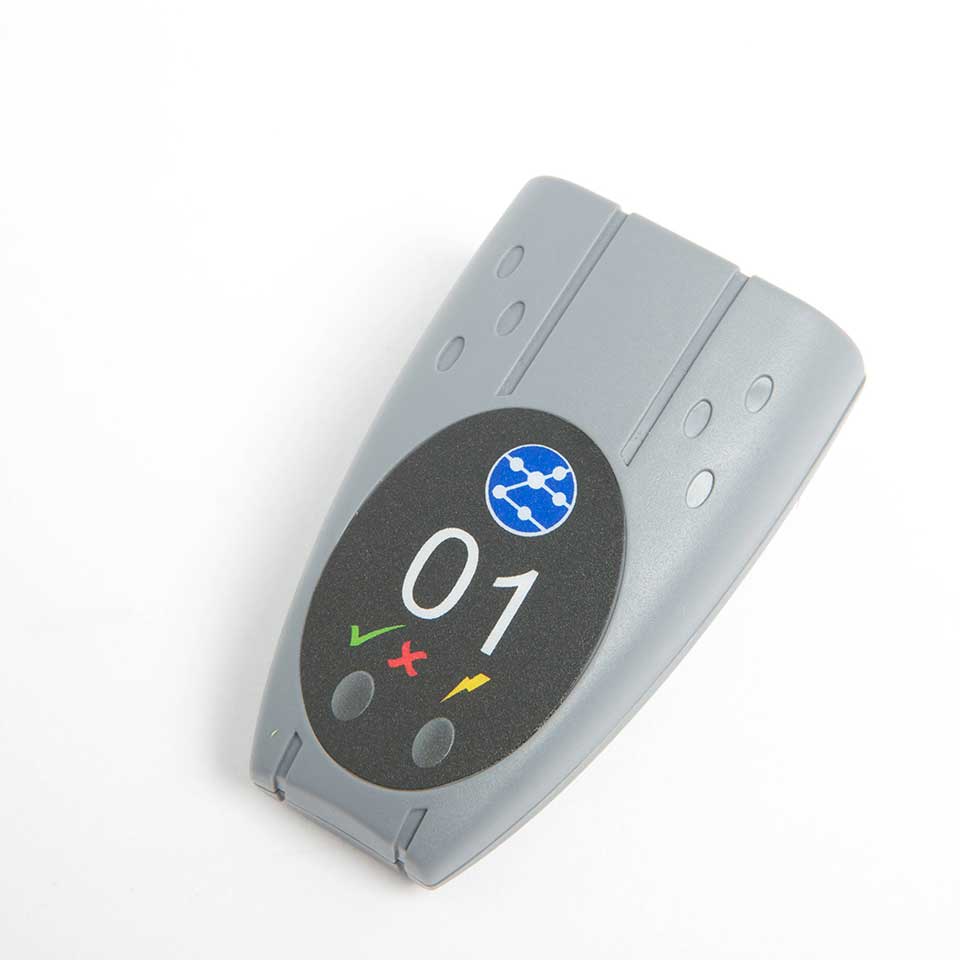

150054 Active Remote #1

Key Features:

Multi-interface connectivity: wired serial/Ethernet and optional wireless modules.
Swappable rechargeable battery pack with onboard charging management.
Rugged, impact-resistant enclosure with mounting brackets for permanent or temporary installations.
Status LEDs and simple front-panel controls for rapid diagnostics and local operation.
Secure communications with authentication and link integrity checks.
Low-power sleep and wake modes to conserve energy between sessions.
Protected terminals and ingress resistance suitable for outdoor and industrial use.
Compatible with LanXPLORER device family and associated accessory ecosystem.

The 150054 Active Remote #1 is a rugged remote control and measurement interface engineered to extend the reach and flexibility of LanXPLORER systems in field and industrial environments. Housed in a durable, impact-resistant enclosure, the unit provides reliable remote measurement acquisition and device control via multiple interface options. Designed for technicians who perform distributed site surveys or need remote access to instruments in confined or hazardous locations, the Active Remote #1 places essential controls and I/O at the point of measurement while preserving signal integrity and communications security.

It emphasizes practical field usability and robust uptime. The unit supports both wired connections and optional wireless modules, features a swappable rechargeable power source with long run time, and includes mounting points for permanent or temporary installation. Thoughtful ergonomics and clear status indicators simplify deployment and troubleshooting, while integrated protections guard against environmental dust, vibration and everyday impacts—making the Active Remote #1 a dependable extension of your test and monitoring toolkit.

Specification	Details
Model	150054 Active Remote #1
Primary function	Remote measurement acquisition and local/remote control interface for LanXPLORER systems
Connectivity — wired	Ethernet (RJ-45) and serial (RS-232/RS-485 via terminal or DB-9) ports
Connectivity — wireless	Optional modular wireless (vendor modules for Wi-Fi, Bluetooth or sub-GHz RF; ordered separately)
Power	Swappable rechargeable battery pack; external DC input 5–12 V via adapter
Battery capacity (typical)	Approx. 2500–5000 mAh (model dependent)
Battery runtime	Up to 10–18 hours typical operation (depending on interface use and wireless activity)
Charge time	Approx. 2–6 hours with supplied charger (depends on battery state and charger current)
Indicators & controls	Multi-color status LEDs, power button, local reset and configurable function button
Enclosure	Impact-resistant thermoplastic with reinforced mounting points
Ingress protection	IP54 (splash and dust resistant); optional higher IP rating available on request
Operating temperature	−20 °C to +55 °C
Storage temperature	−30 °C to +70 °C
Dimensions (approx.)	140 mm × 90 mm × 45 mm (subject to final enclosure variant)
Weight (typical)	Approx. 380–520 g including battery
Mounting	DIN-rail, wall, or pole mounting via supplied bracket kit
Connectors	RJ-45 Ethernet, DB-9/terminal serial, external DC input jack, antenna SMA (when wireless option fitted)
Certifications	RoHS; CE (EMC/low voltage) typical—other regional approvals available per request
Compatibility	Designed to integrate with LanXPLORER series instruments and common field telemetry systems
Environmental ruggedness	Vibration and shock resistant to IEC test levels for portable field equipment

Accessory	Description	Included / Optional
Swappable rechargeable battery pack	Removable NiMH / Li-ion battery module providing field-replaceable power for extended runtime.	Included
External AC charger / power adapter	Desktop charger and AC adapter for recharging battery packs and powering unit from mains.	Included
Mounting bracket kit	Steel/aluminium bracket and fasteners for wall, DIN-rail, or pole mounting.	Included
Communication cable kit	Assorted RJ-45, DB-9 and terminal cables for wired serial and Ethernet connections.	Included
External antenna	High-gain antenna for enhanced wireless range (for wireless-equipped units).	Optional
Protective soft pouch / cover	Padded cover to protect unit when transported or stored in toolkits.	Optional
Calibration / Test certificate	Factory calibration certificate and basic performance verification report.	Optional
Spare terminal kit	Replacement terminal blocks and protective caps for field repairs.	Optional
